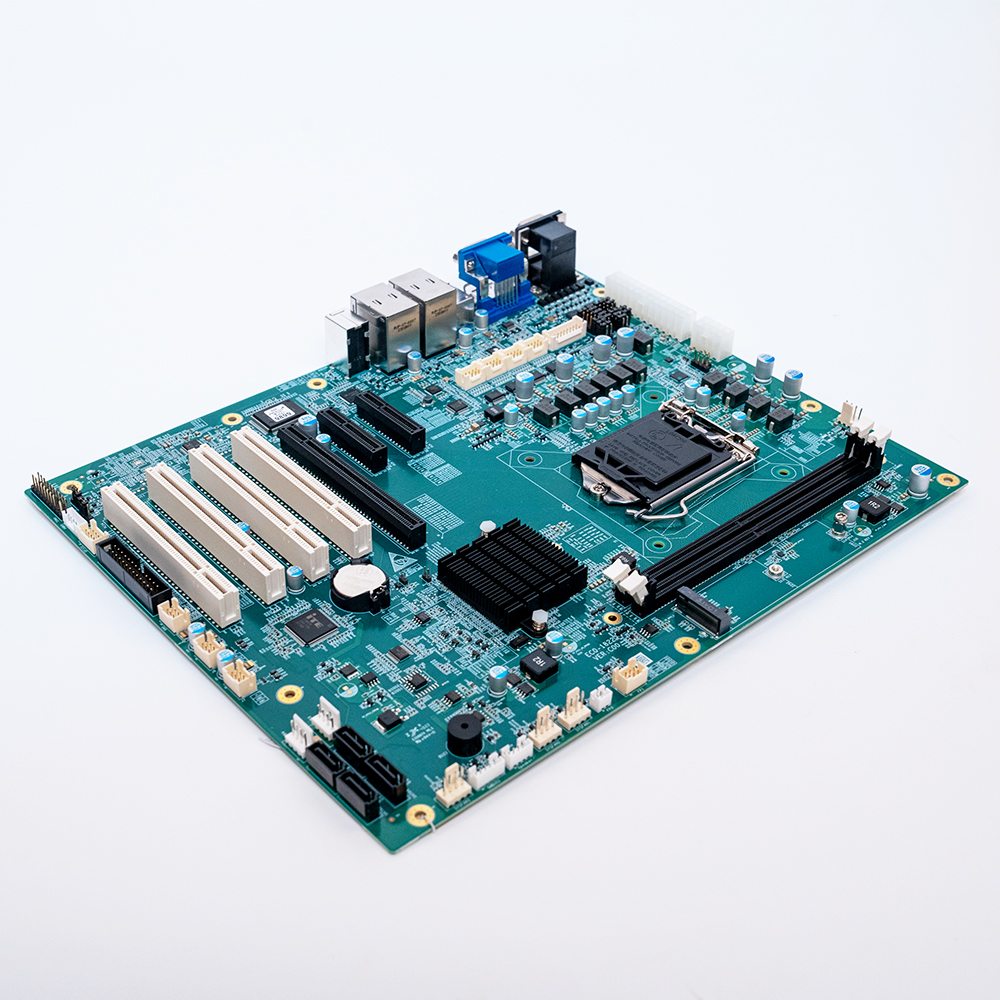

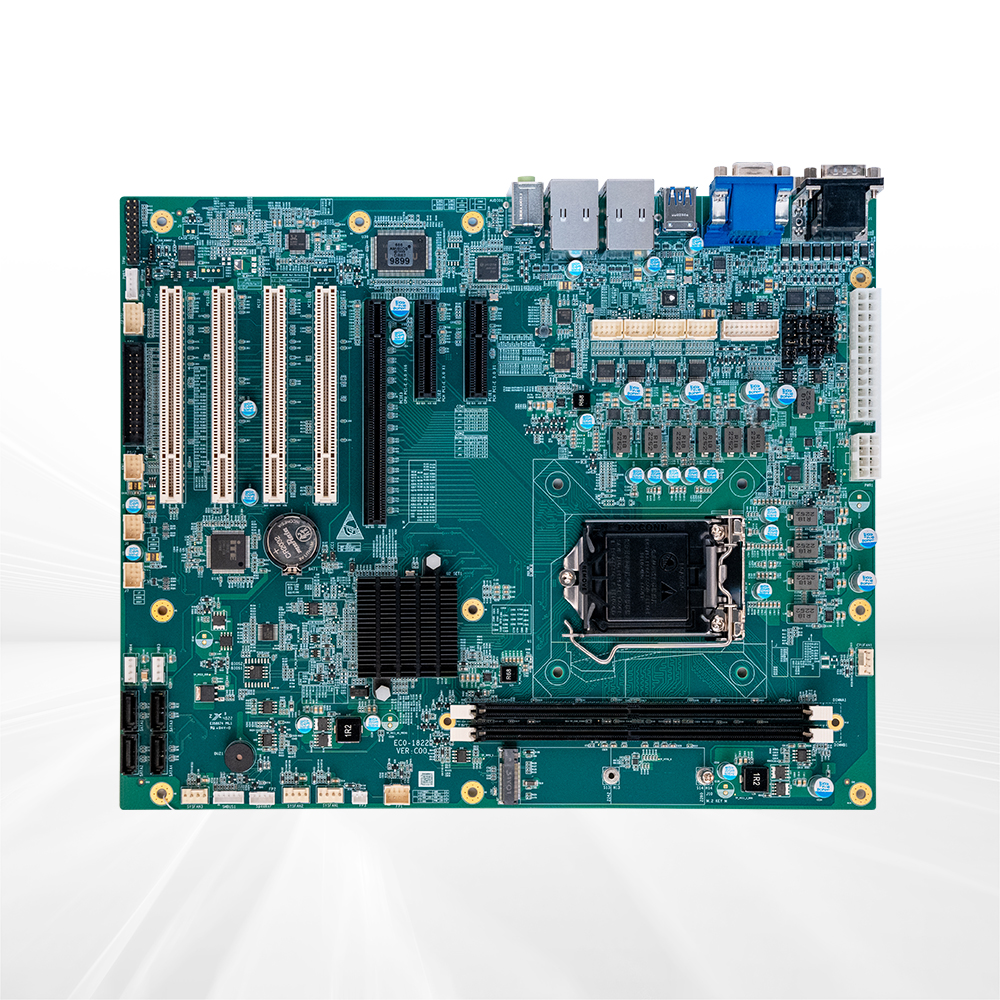

Industrial ATX Motherboard with Intel® H420E Chipset
The EC0-1822 motherboard adopts standard ATX specification and Intel H420E platform, supports Intel LGA1200 pin 10th Gen processor; provides 2 × DDR4 memory slot; supports PCI +PCIE expansion combination, multiple serial ports and multiple USB ports. The product can be widely used in industrial automation, Internet of Things, self-service terminal, petrochemical engineering, safety monitoring, intelligent transportation, environmental protection, communication and other fields.
| Item | Description | |
|---|---|---|
| Processor | Supports Intel LGA 1200 pin 10th Gen processor; maximum power consumption of processor TDP≤125W | |
| Chipset | H420E | |
| Memory | 2 x DDR4 DIMM memory slot, a single memory supporting 32GB, the two supporting up to 64GB | |
| Display Port | Any two display ports among VGA, DP and DVI-D | |
| Audio | Supports MIC-IN/LINE-IN/LINE-OUT | |
| LAN | 2 × Gigabit LAN port, LAN1 supports LAN wakeup | |
| Storage | 4 × SATA3.0 | |

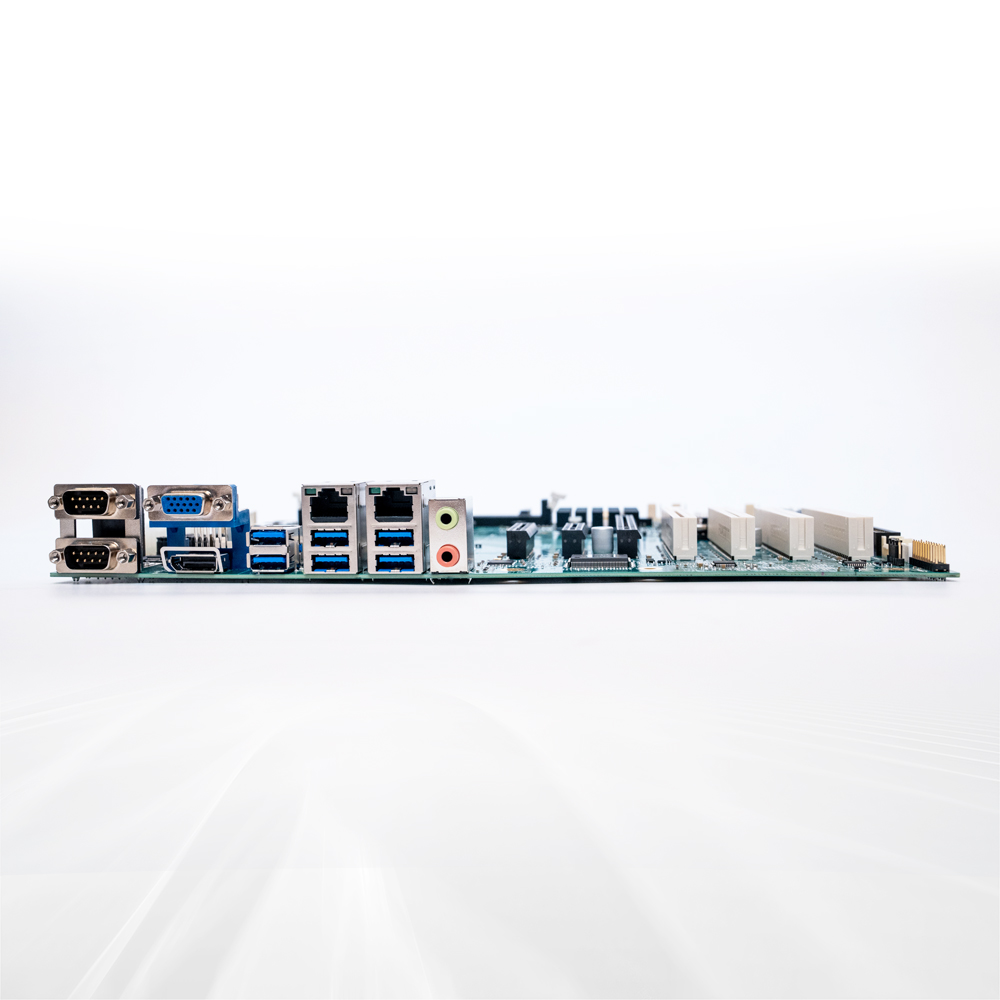

| I/O Port | 6 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection 4 × USB 2.0 port and 6 × USB3.2 GEN1 port 1 × PS/2 port 1 × 8-channel digital I/O port 1 × TPM port |
|
| Bus Expansion | 4 × PCI 2 × PCIEx4 (actual x1 signal) 1 × PCIEx16 1 × M.2 KEY M port (PCIE x 2, supporting sizes 2242/2280) |
|
| Power Supply | ATX power supply | |
| Working Environment | -10℃～60℃ | |
| Storage Environment | -20℃～80℃ | |
| Constant Damp Heat | 40°C 95%RH, non-condensing | |
| Overall Dimensions | 305 mm (L) × 244 mm (W) | |
| Operating System | WIN10、Linux | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| EC0-1822-Product Manual | Various Platforms | Vol15.0 | 2025-04-27 | 0.23MB | Download 𐃯 |
