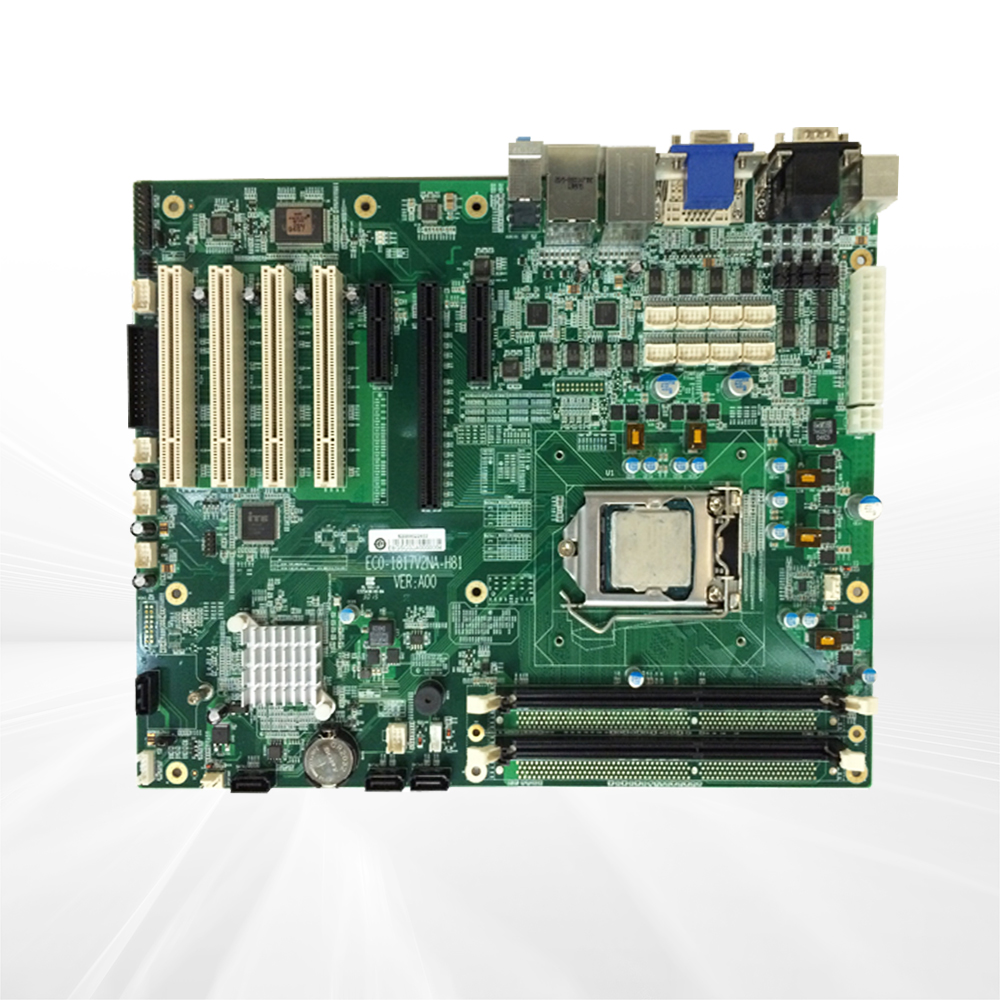

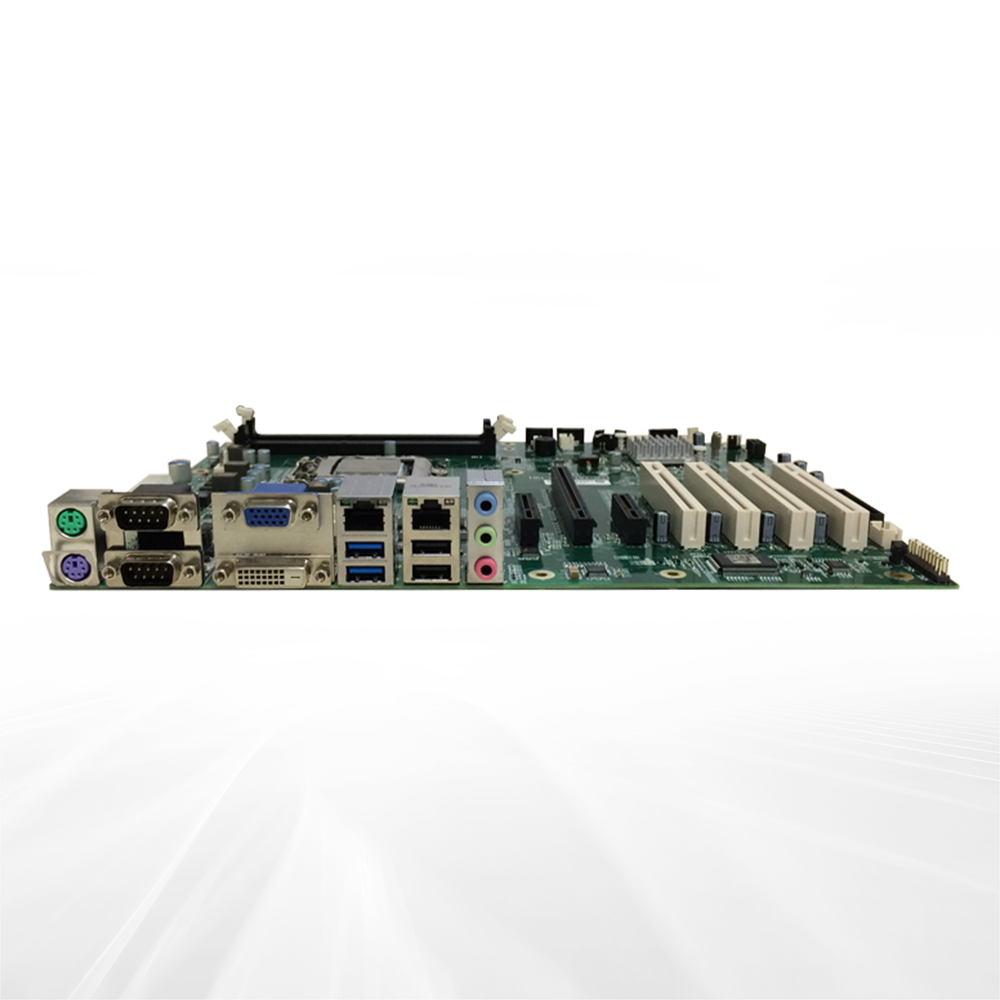

Industrial ATX Motherboard with Intel® H81 Chipset
EC0-1817 (B) is a single board computer with ATX structure developed based on IntelH81 chipset. It supports the 4th Gen processor packaged by Intel Socket LGA1150, VGA+DVI-D dual display function, abundant IO ports, PCIe and PCI bus expansion. It can be widely used in industrial petrochemical engineering, automatic control, automatic detection, safety monitoring, intelligent transportation, communication automation, environmental protection testing and other fields.
| Item | Description | |
|---|---|---|
| Processor | Supports Intel Haswell LGA 1150 pin 4th Gen processor | |
| Chipset | H81 | |
| Memory | 2 x 240Pin standard DDR3 DIMM memory slot, a single memory supporting 8GB, the two supporting up to 16GB | |
| Display Port | 1 × VGA, 1 × DVI-D | |
| Audio | Supports MIC-IN/LINE-IN/LINE-OUT | |
| LAN | 2 × Gigabit LAN port, LAN1 supports LAN wakeup | |
| Storage | 4 × SATA2.0 | |
| I/O Port | 1 × parallel port 10 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection 2 × USB 3.0, 8 × USB 2.0 1 × PS/2 port 1 × 8-channel digital I/O port 1 × TPM port |
|
| Bus Expansion | 4 × PCI 1 × PCIEx16 2 × PCIEx4 (actual x1 signal) |
|
| Power Supply | ATX power supply | |
| Working Environment | -10℃～60℃ | |
| Storage Environment | -20℃～80℃ | |
| Relative Humidity | 5%~95% (non-condensing) | |
| Overall Dimensions | 305 mm (L) × 244 mm (W) | |
| Operating System | WIN7, LINUX | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| EC0-1817(B)-Product Manual | Various Platforms | Vol15.0 | 2025-04-27 | 0.18MB | Download 𐃯 |
