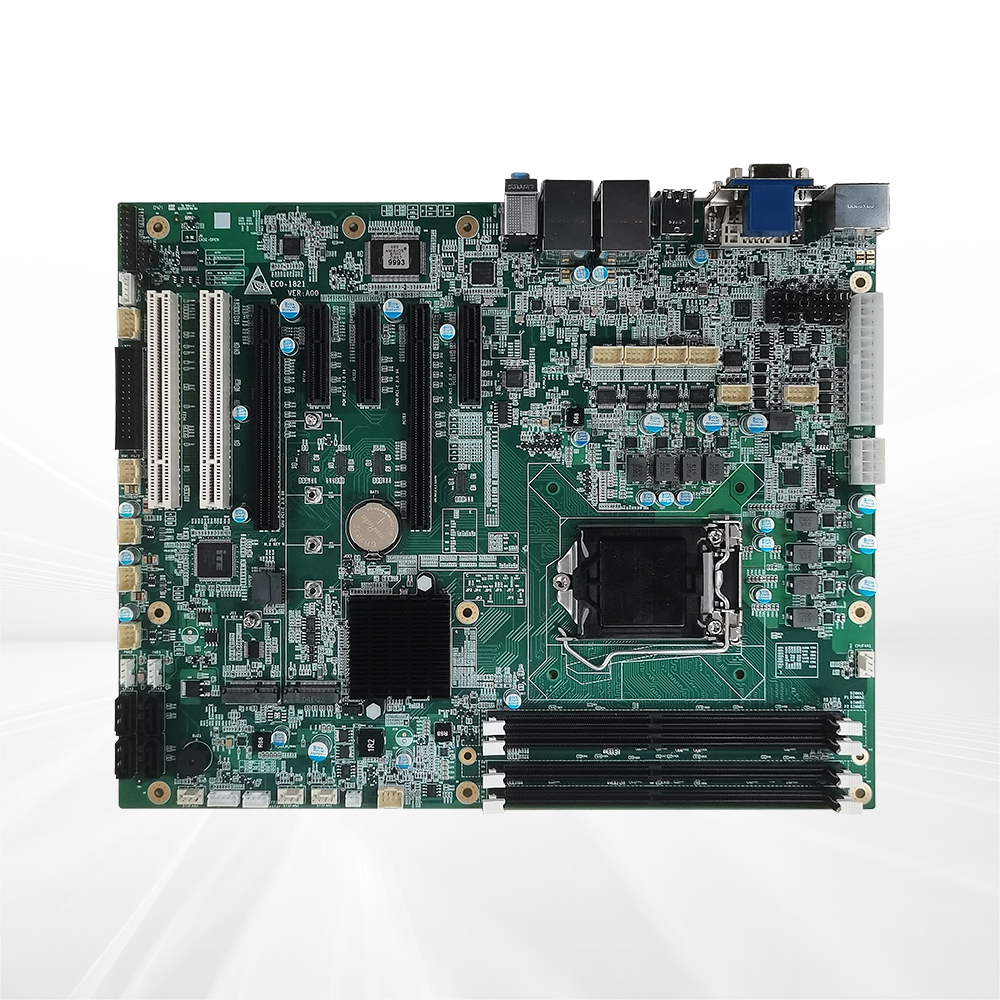

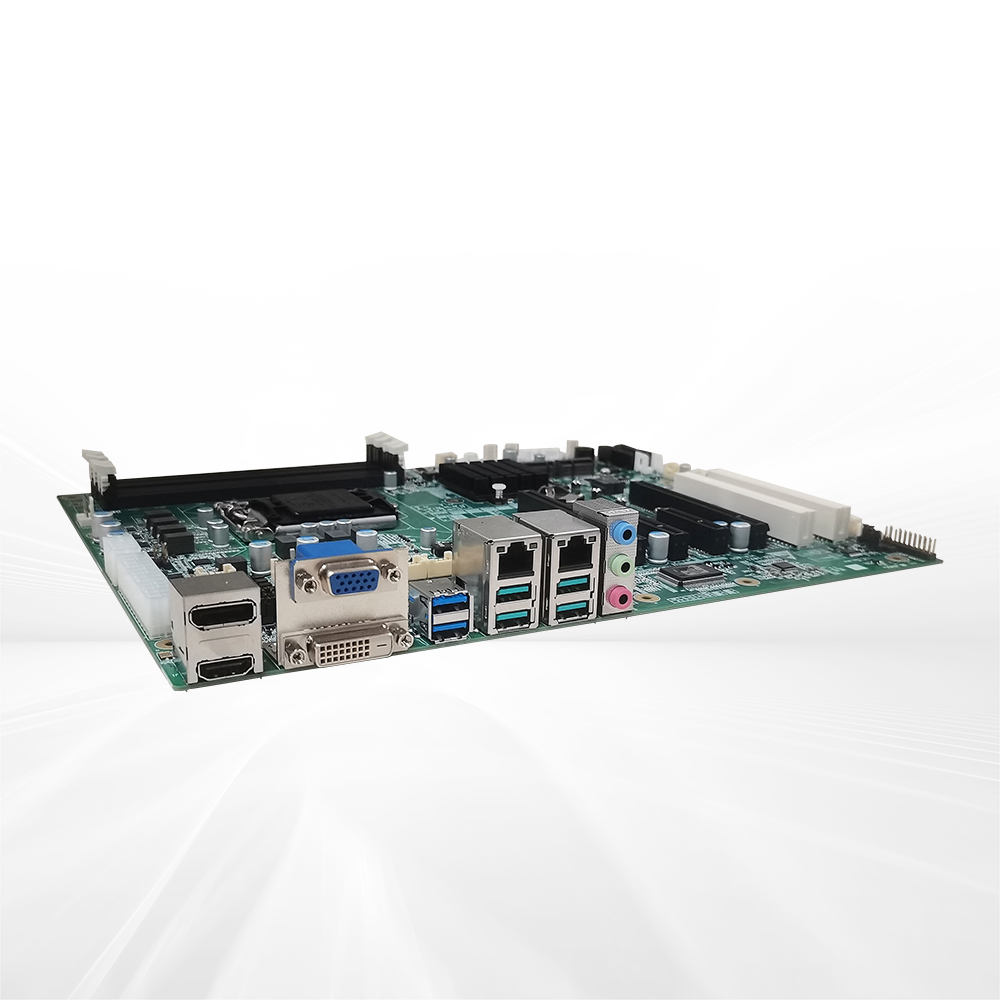

Industrial ATX Motherboard with Intel® C246 Chipset
EC0-1821 motherboard adopts standard ATX specification, Intel C246 platform and provided with Intel 8/9th Gen processors; it supports PCI+PCIE expansion combination, multiple serial ports, multiple USB ports and SATA RAID 0, 1, 5, 10. The product can be widely used in industrial automation, Internet of Things, self-service terminal, petrochemical engineering, safety monitoring, intelligent transportation, environmental protection, communication and other fields.
| Item | Description | |
|---|---|---|
| Processor | Supports Intel LGA 1151 pin: 8/9th Gen processors, Xeon E-21xx/E-22xx series processors | |
| Chipset | C246 | |
| Memory | 4 x DDR4 DIMM memory slot, a single memory supporting 32GB, the four supporting up to 128GB | |
| Display Port | Any three display ports among VGA, HDMI, DVI-D and DP | |
| Audio | Supports MIC-IN/LINE-IN/LINE-OUT | |
| LAN | 2 × Gigabit LAN port, LAN1 supports LAN wakeup | |
| Storage | 4 × SATA3.0, supporting RAID 0, 1, 5, 10 | |
| I/O Port | 6 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection 6 × USB 2.0 port, 4 × USB3.1 GEN2 port (10Gb/s), 2 × USB3.1 GEN1 port (5Gb/s) 1 × PS/2 port 1 × 8-channel digital I/O port 1 × TPM port |
|
| Bus Expansion | 2 × PCI, 3 × PCIEx4 2 × PCIEx16 (when PCIE5 slot is occupied, the two PCIE slots adopts PCIEx8 speed by default) 1 × M.2 KEY M port (PCIe X4, supporting sizes 2242/2260/2280/22110) 1 × M.2 KEY E port (PCIe X1, supporting size 2230) |
|
| Power Supply | ATX power supply | |
| Working Environment | -10℃～60℃ | |
| Storage Environment | -20℃～80℃ | |
| Constant Damp Heat | 40°C 95%RH, non-condensing | |
| Overall Dimensions | 305 mm (L) × 244 mm (W) | |
| Operating System | WIN10、Linux | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| EC0-1821-Product Manual | Various Platforms | Vol15.0 | 2025-04-27 | 0.28MB | Download 𐃯 |
