Industrial ATX Motherboard with Intel® H610E Chipset

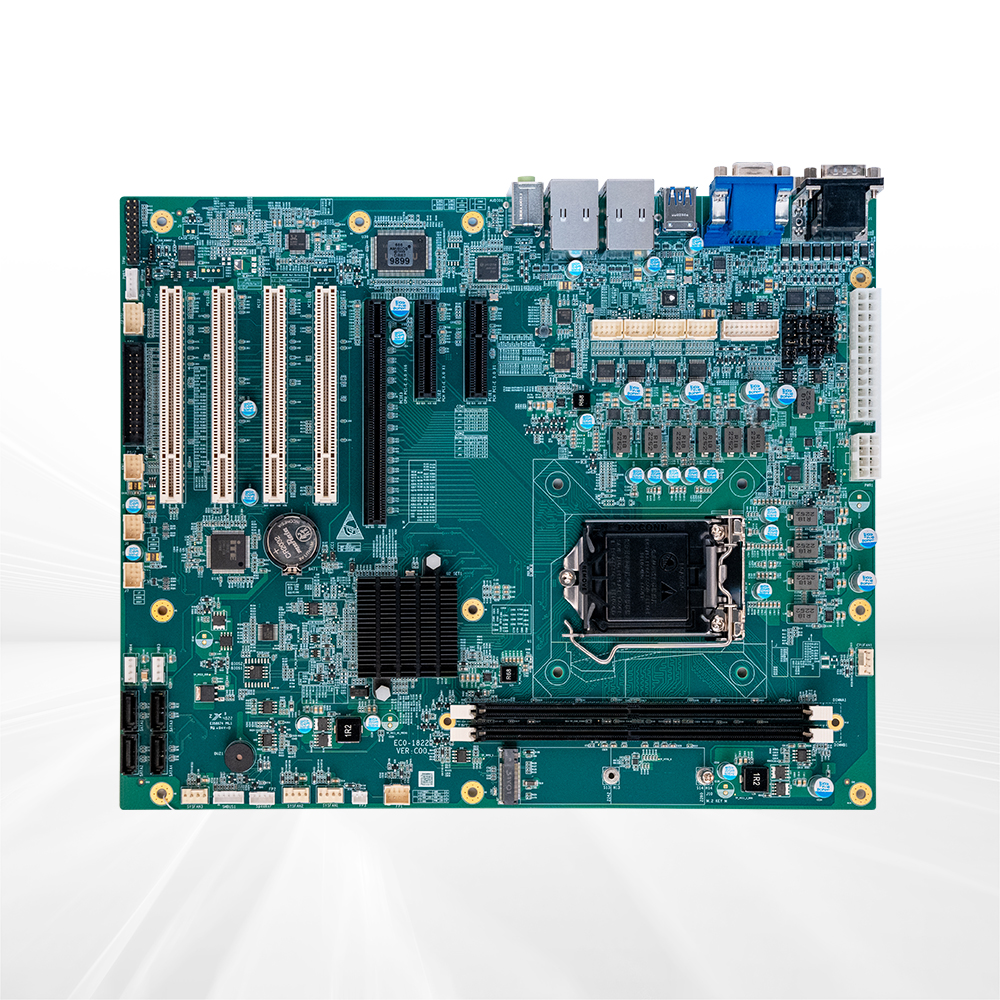

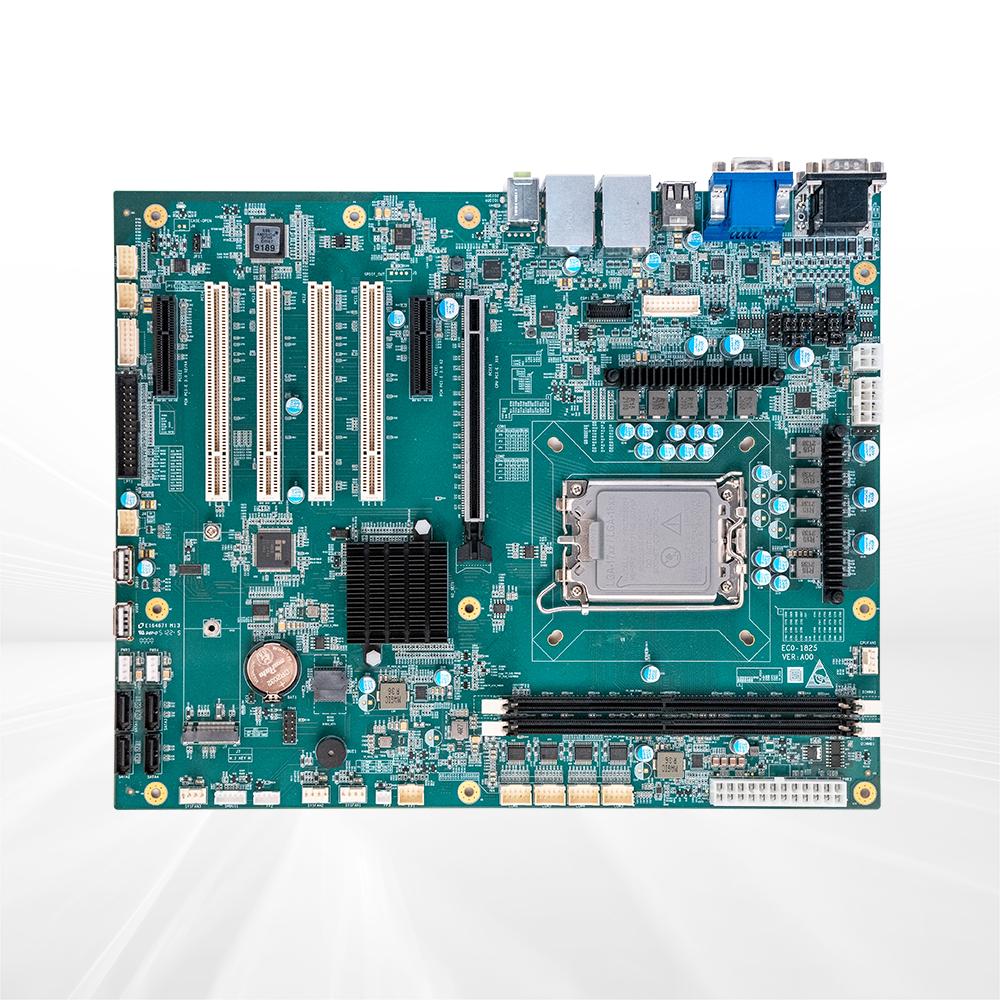

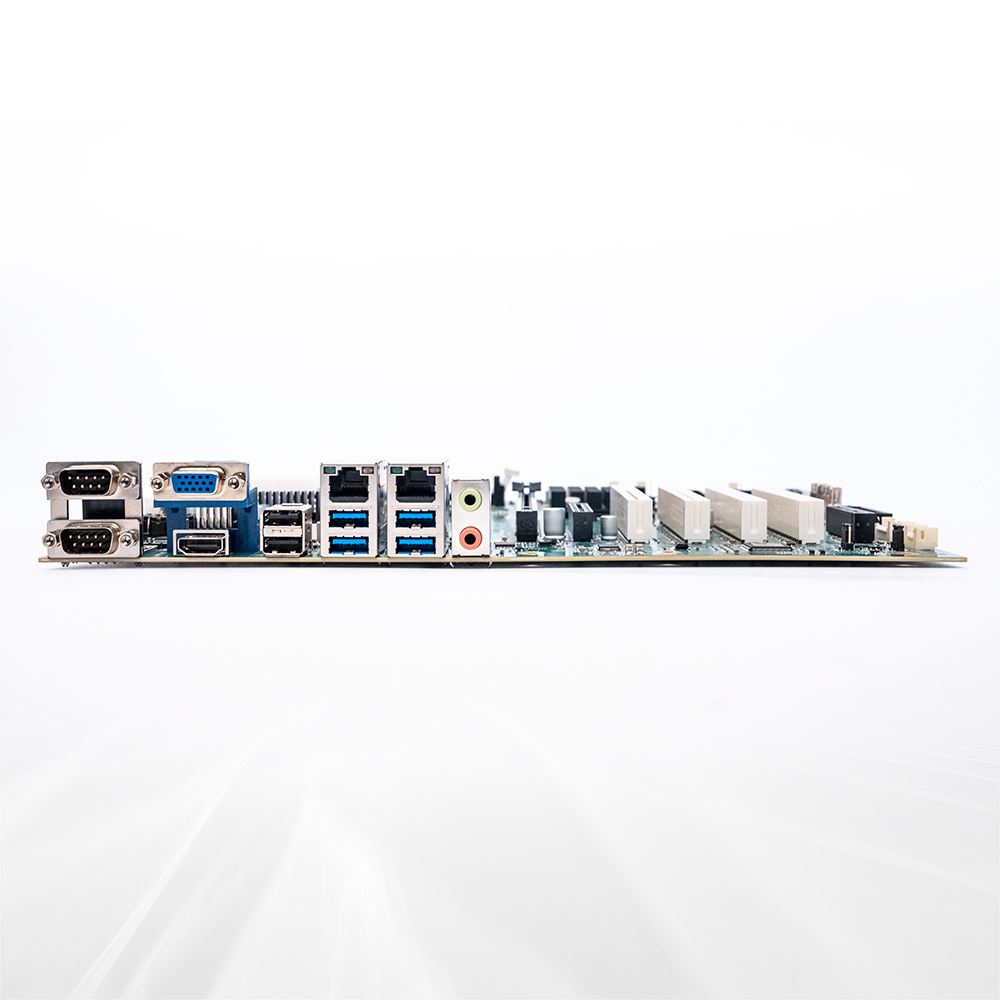

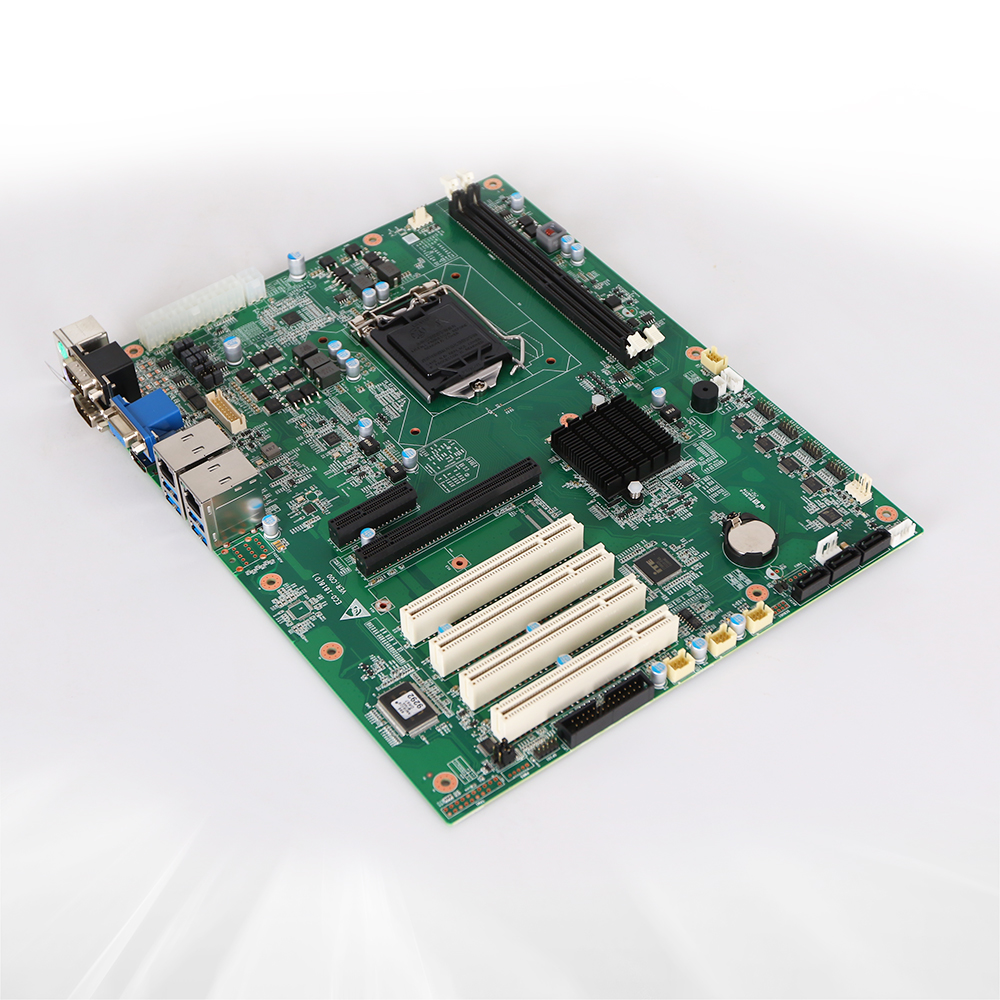

EC0-1825 motherboard adopts standard ATX specification and Intel H610E chipset, which can support Intel 12th Gen processor, PCI +PCIE expansion combination, multiple serial ports and multiple USB ports; it can be widely used in industrial automation, machine vision, deep learning, safety monitoring, intelligent transportation, environmental protection, communication and other fields.
| Item | Description | |
|---|---|---|
| Processor | Supports Intel LGA1700 pin 12th Gen processors, with a maximum power consumption of 125W | |
| Chipset | H610E | |
| Memory | 2 x DDR4 DIMM memory slot, a single memory supporting 32GB, the two supporting up to 64GB | |
| Display Port | VGA, DVI-D, HDMI2.0b three-display | |
| Audio | Supports MIC-IN/LINE-OUT | |
| LAN | 1 × 10/100/1000Mbps LAN port 1 × 10/100/1000/2500Mbps LAN port supports LAN wakeup |
|
| Storage | 4 × SATA3.0 | |
| I/O Port | 6 × serial port, COM1 and COM2 support RS-232/RS-422/RS-485 mode selection 6 × USB2.0, 4 × USB3.0 1 × PS/2 port 1 × 8-channel digital I/O port 1 × TPM port |
|
| Bus Expansion | 4 × PCI 1 × PCIEx16 (supporting up to PCIE5.0) 1 × PCIEx4 (bit number PCIE1, PCIE3.0 x2 signal) 1 × PCIEx4 (bit number PCIE2, PCIE3.0 x2 signal or PCIE3.0 x4 signal) 1 × M.2 KEY M port (PCIE3.0 x2 signal, size 2242/2280) Note: As compatible cable design is adopted for M.2 and PCIE2 slot, when M.2 device is not inserted, PCIE2 slot provides PCIE3.0 x4 signal |
|
| Power Supply | ATX power supply | |
| Working Environment | -10℃～60℃ | |
| Storage Environment | -40℃～85℃ | |
| Constant Damp Heat | 40°C 95%RH, non-condensing | |
| Overall Dimensions | 305 mm (L) × 244 mm (W) | |
| Operating System | Windows 10 (Windows 10(21H1) and later versions are required), WIN11, high kernel version LINUX system (kernel version 5.15 and above are required) | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| EC0-1825-Product Manual | Various Platforms | Vol15.0 | 2025-04-27 | 0.23MB | Download 𐃯 |
