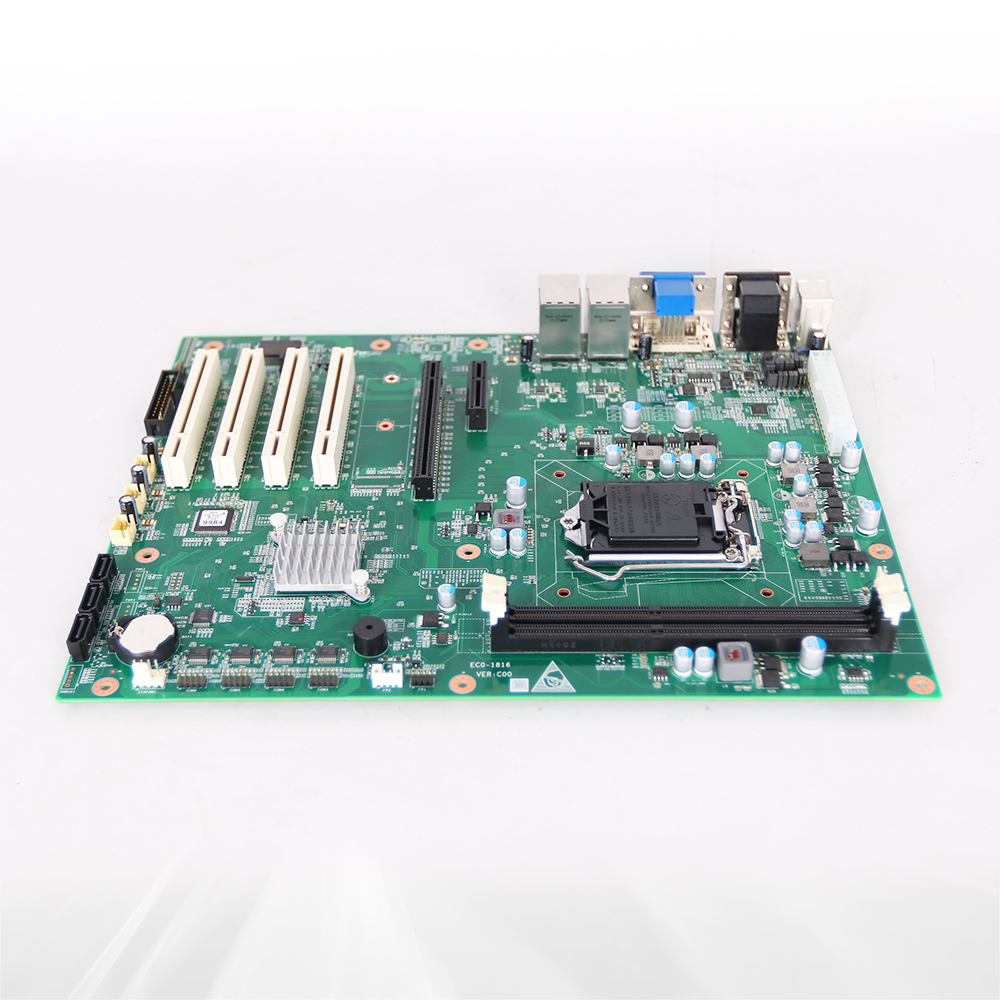

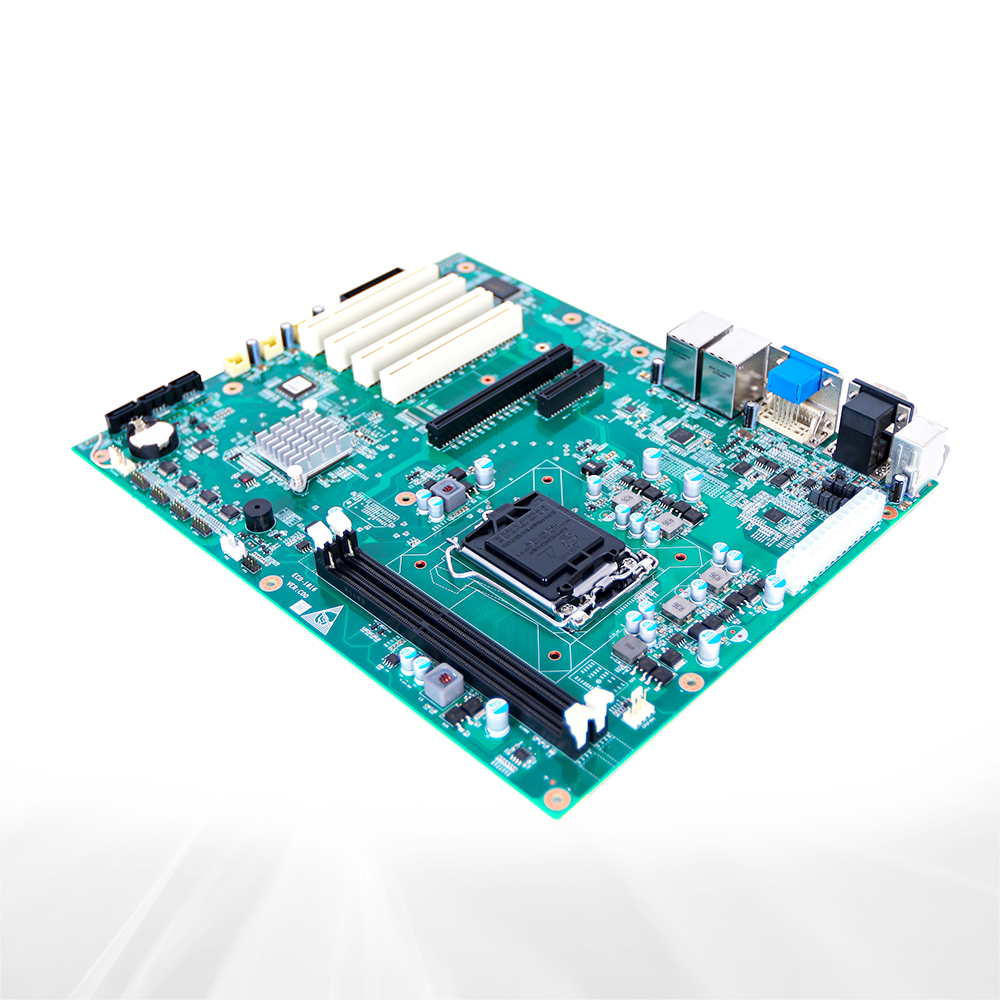

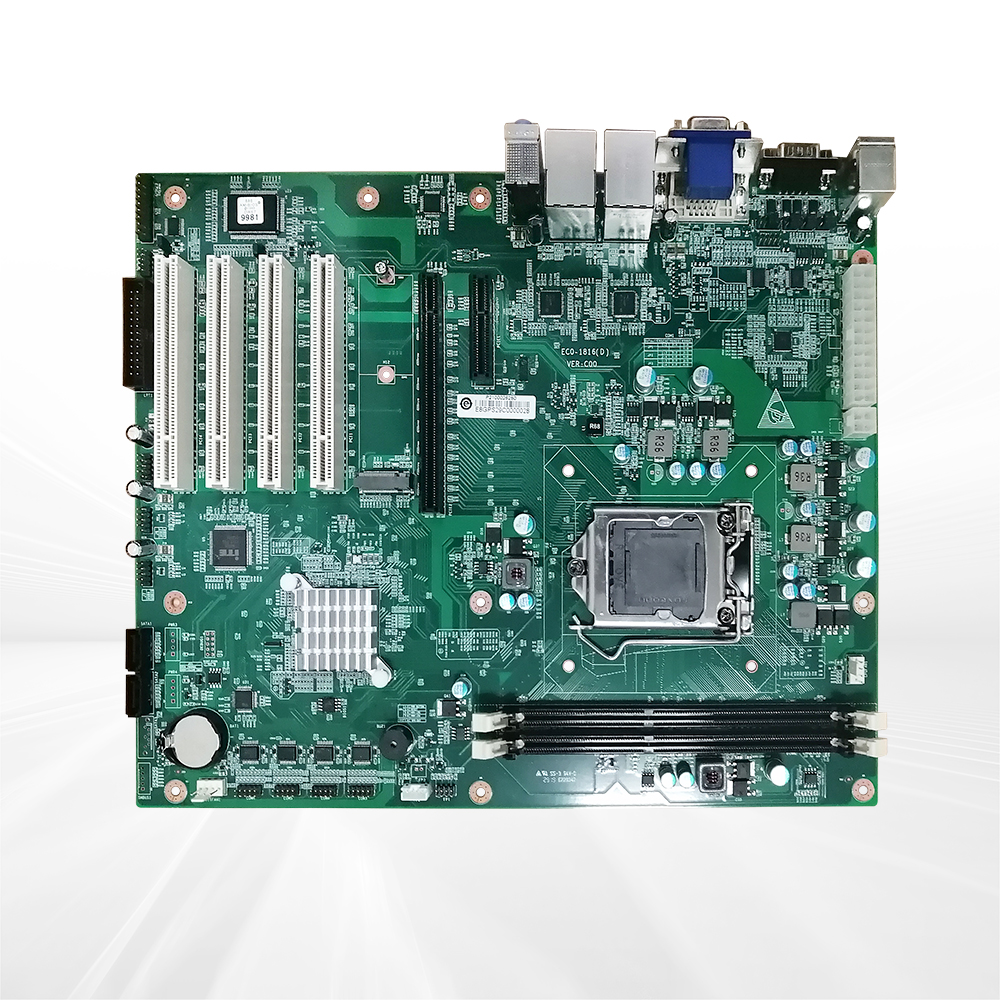

Industrial ATX Motherboard with Intel® H61 Chipset
EC0-1816(E) is a single board computer with ATX structure developed based on IntelH61 chipset, and supports Ivy bridge/Sandy bridge core LGA1155 pin dual-core/quad-core processors; it supports VGA+DVI-D display function and PCIePCI bus expansion, which can be widely used in industrial automation control, automatic detection, safety monitoring, intelligent transportation, communication automation, environmental protection detection and other fields.
| Item | Description | |
|---|---|---|
| Processor | Supports Ivy bridge/Sandy bridge LGA 1155 pin processors | |
| Chipset | H61 | |
| Memory | 2 x 240Pin standard DDR3 DIMM memory slot, a single memory supporting 8GB, the two supporting up to 16GB | |
| Display Port | 1 × VGA, 1 × DVI-D | |
| Audio | Supports MIC-IN/LINE-IN/LINE-OUT | |
| LAN | 2 × Gigabit LAN port, LAN1 supports LAN wakeup | |
| Storage | 2 × SATA2.0 | |
| I/O Port | 1 × parallel port 6 × serial port, of which COM1 is onboard and supports RS-232/422/RS-485 mode selection(10 serial port motherboards optional) 10 × USB2.0 port 1 × PS/2 port 1 × 8-channel digital I/O port 1 × TPM port |
|
| Bus Expansion | 5 × PCI 1 × PCIEx16 1 × PCIEx4 (actual x1 signal) |
|
| Power Supply | ATX power supply | |
| Working Environment | -10℃～60℃ | |
| Storage Environment | -20℃～80℃ | |
| Relative Humidity | 5%~95% (non-condensing) | |
| Overall Dimensions | 305 mm (L) × 244 mm (W) | |
| Operating System | WIN7, LINUX | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| EC0-1816(E)-Product Manual | Various Platform | Vol15.0 | 2025-04-27 | 0.19MB | Download 𐃯 |
