IPC-710-HG

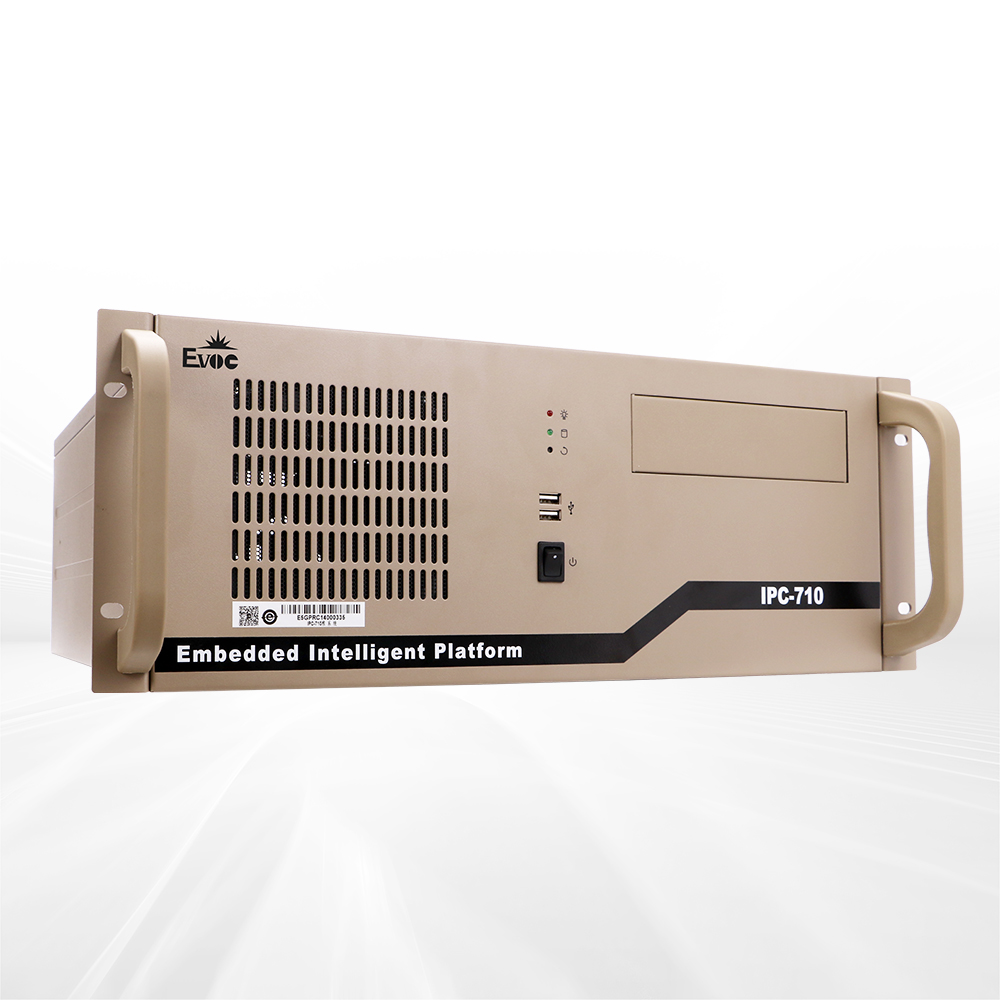

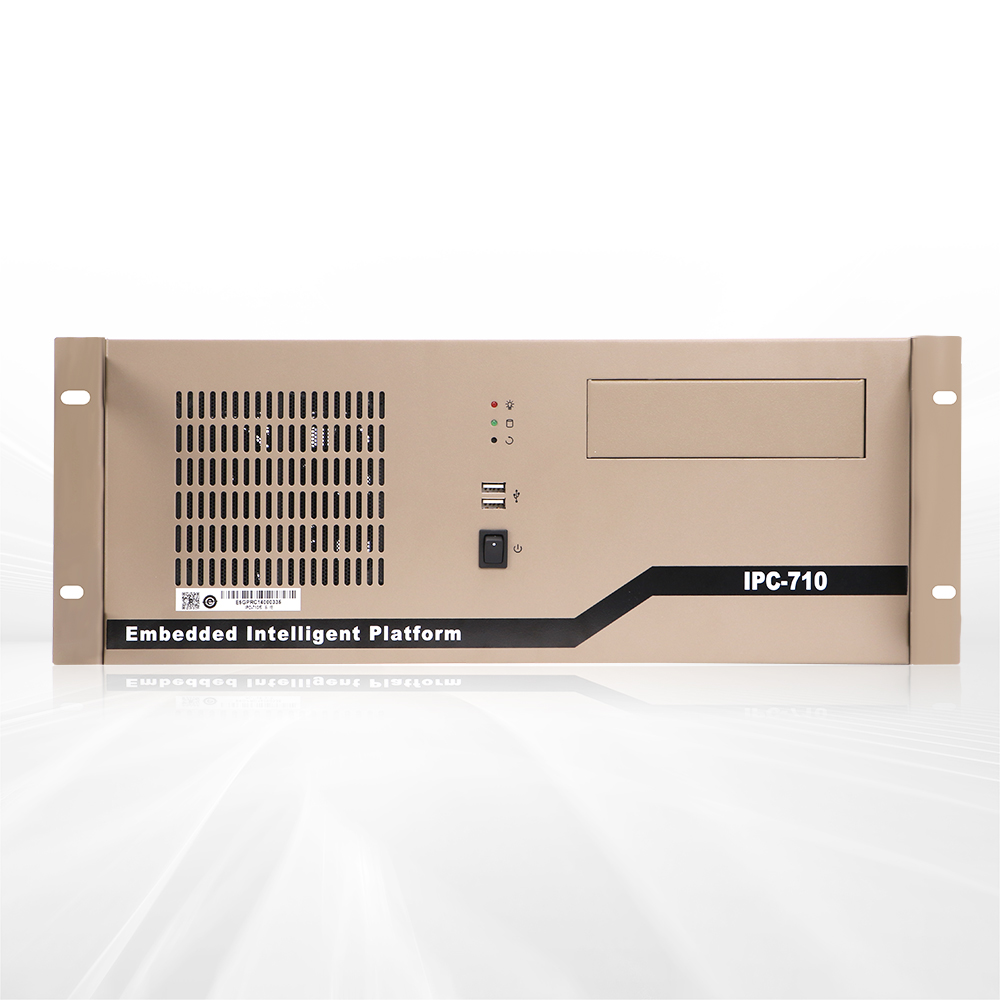

4U 19" Rackmount Chassis

Supports ATX Industrial Motherboard with HYGON 3330/3350 processor

IPC-710 is a 4U rackmount chassis, which can be equipped with Chinese HYGON 3330/3350 processor, support UOS, Kylin and other Chinese operating systems, and is with rich IO interfaces. The product can be widely used in intelligent manufacturing, industrial control, intelligent transport, intelligent security and other fields.

Product Features

Outstanding EMC Performance

Excellent Heat Dissipation

PCI+PCIE Expansion

Rich I/O Interfaces

Equipped with Chinese HYGON 3330/3350 Processor

4U Standard Rackmount

Product Specifications

Item		Description
Compatible motherboard		EC0-8501-HG motherboard
Storage		1x5.25" CD-ROM bay 2x3.5" HDD bay (with shock absorption) 1x3.5" HDD bay (without shock absorption)

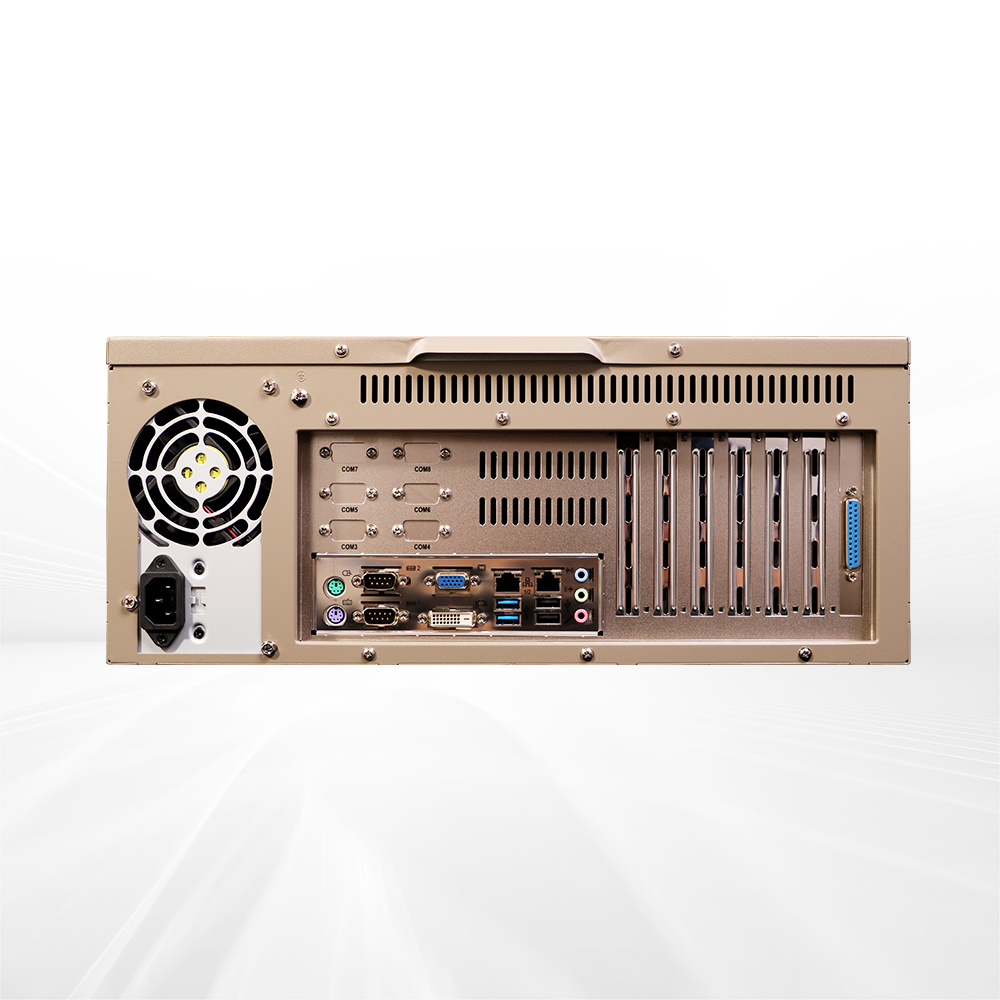

IO Ports		Power switch, reset switch Power supply and hard disk indicator lights 2xUSB ports in front
Power Supply		Standard ATX Power Supply
Working Temperature		0℃ ～ 40℃ (with HDD or GPU) 0℃ ～ 50℃ (with SSD)
Storage Temperature		-20℃～60℃
Constant Damp Heat		（40）℃ （95）%RH non-condensing
（WxHxD） Dimensions		482.6mmx177mmx469.8mm

Downloads

Name	Type	Platform	Version number	Update Date	Size	Download
IPC-710-HG-Product Manual	PDF	Various Platform	Vol15.0	2025-05-29	0.41MB	Download 𐃯
