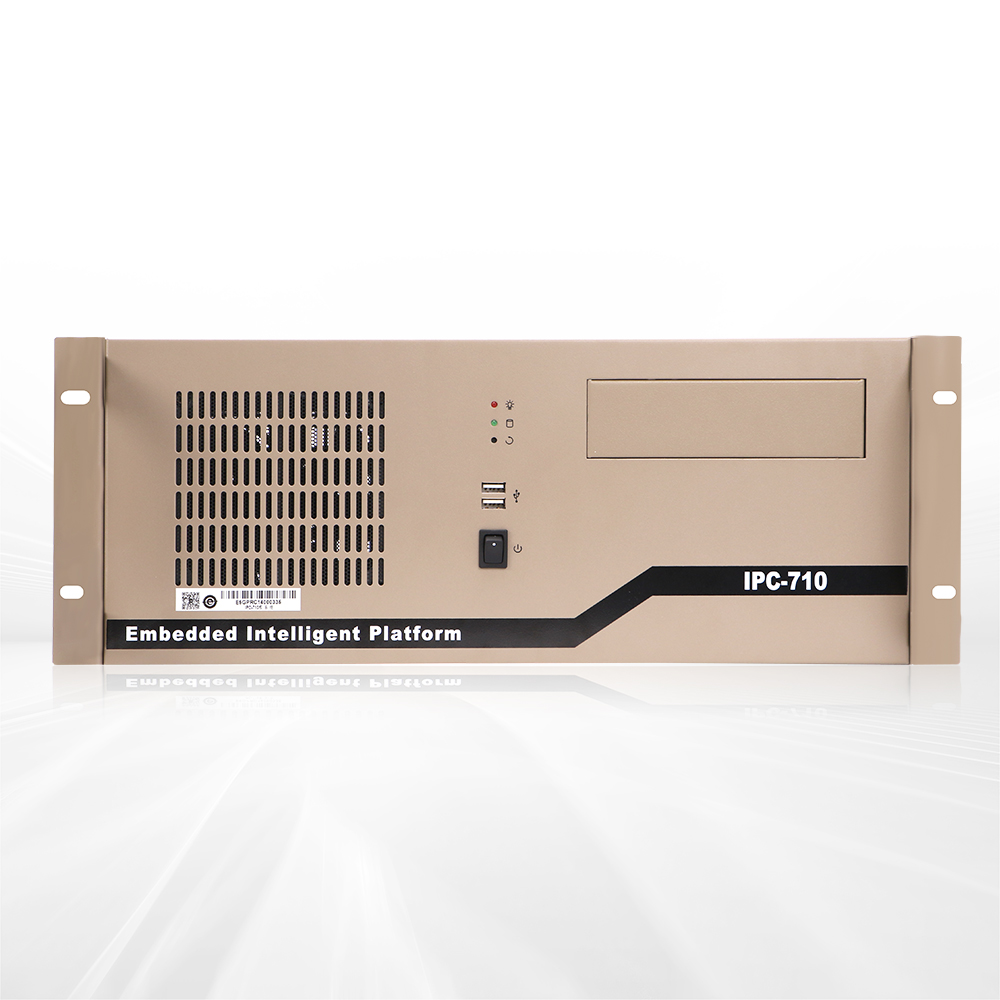

IPC-710
4U 19" Rackmount Chassis

Supports ATX Industrial Motherboard

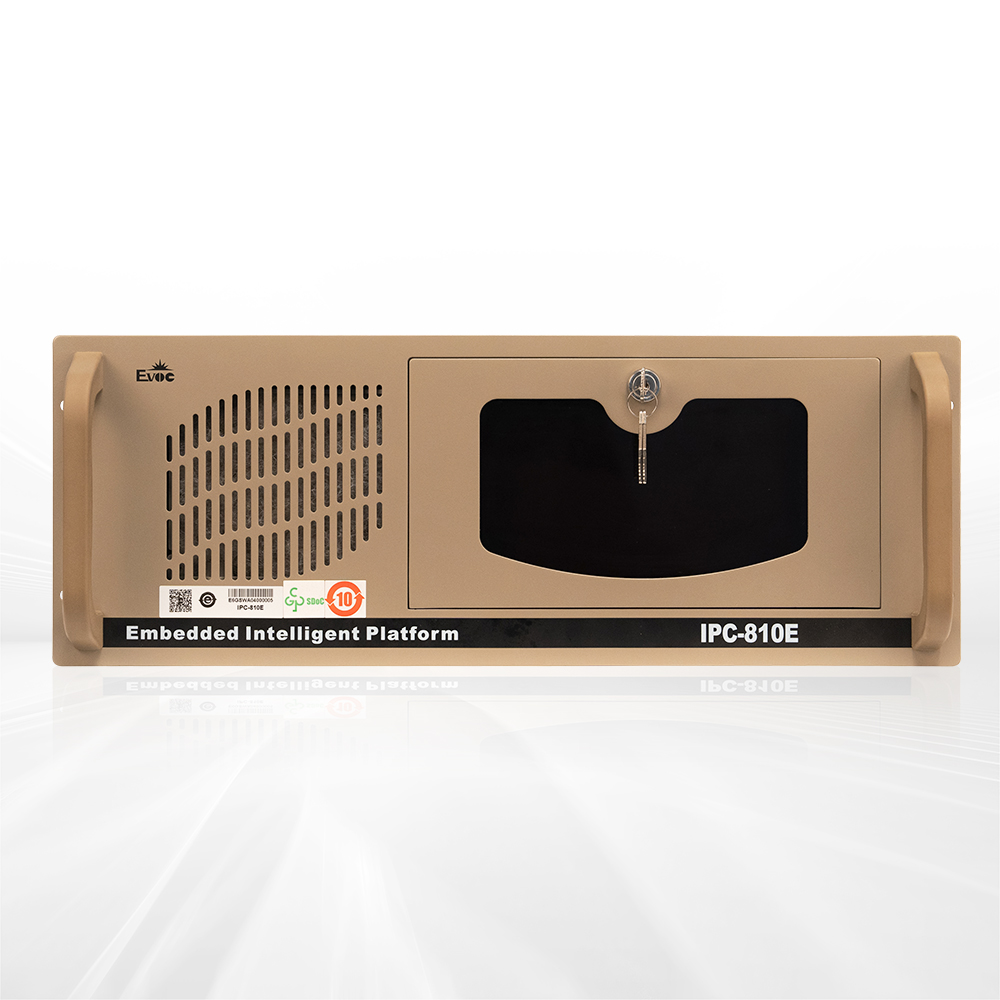

IPC-710 is a new 4U rack-mounted chassis launched by EVOC, and the only difference between it and the IPC classic series of IPC-810E is that the front panel is different; With the same identity, quality, production process, and internal structure as IPC-810E, the product with a new shape can be compatible with various full-series full-length cards and industrial motherboards such as EPI, EPE, EC7, EC9, EC0 and ECS of the company. As a classic 4U rack-mounted chassis, the product can be widely used in intelligent manufacturing, industrial automation, petroleum and petrochemicals, finance, electricity, transportation and other fields.

Product Features

Excellent EMC performance

Excellent heat dissipation

4U standard rack-mounted

Item	Description
Memory	1 x 5.25'' CD-ROM space 2 x 3.5'' HDD space (with shock absorption) 1 x 3.5'' HDD space (without shock absorption)
I/O Port	Power switch, reset switch, power supply and hard disk indicator; 2 x USB port in front
Power Supply	Small PS2 ATX power supply or 1U small power supply
Working Temperature	0°C~50°C, 5%~90% (non-condensing state)
Storage Temperature	-20°C~60°C, 5%~90% (non-condensing state)
Overall Dimensions (W×H×D)	482.6mm×177mm×469.8mm

Item

Description

Memory

1 x 5.25'' CD-ROM space
2 x 3.5'' HDD space (with shock absorption)
1 x 3.5'' HDD space (without shock absorption)

I/O Port

Power switch, reset switch, power supply and hard disk indicator; 2 x USB port in front

Power Supply

Small PS2 ATX power supply or 1U small power supply

Working Temperature

0°C~50°C, 5%~90% (non-condensing state)

Storage Temperature

-20°C~60°C, 5%~90% (non-condensing state)
