IPC-8207

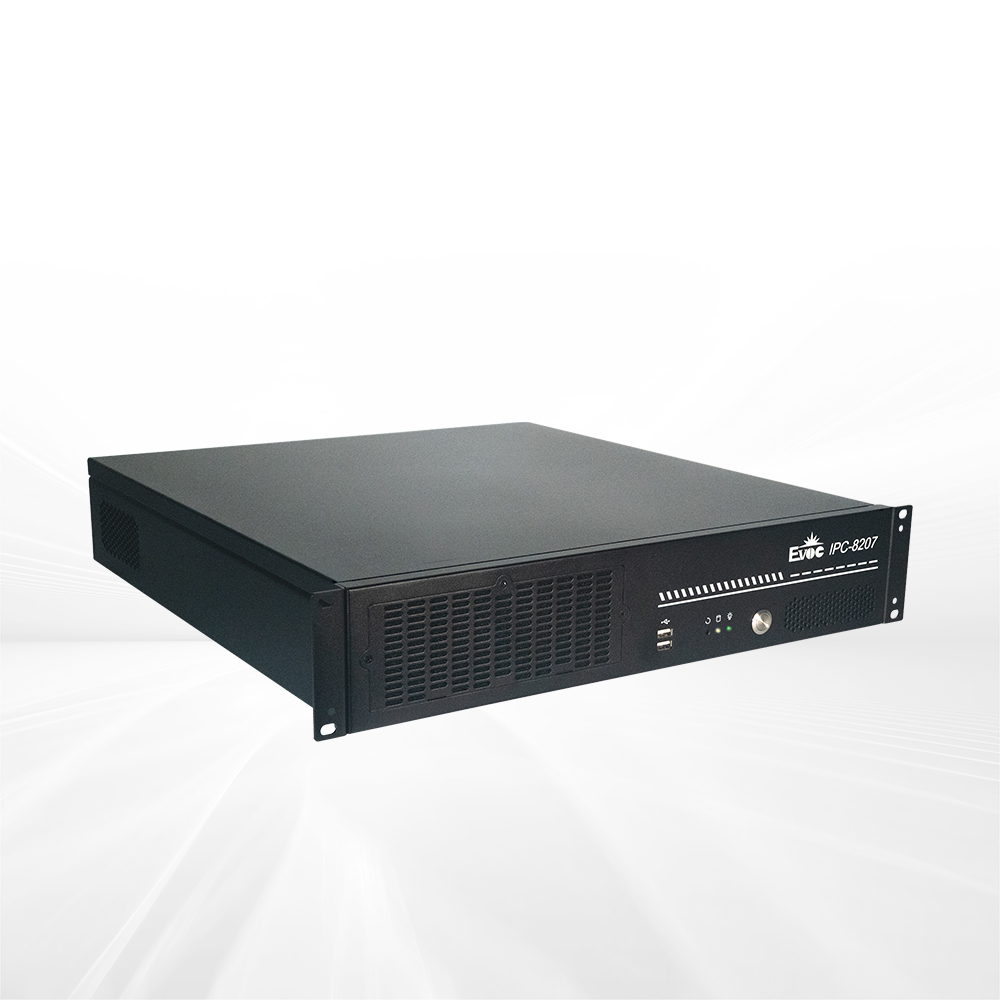

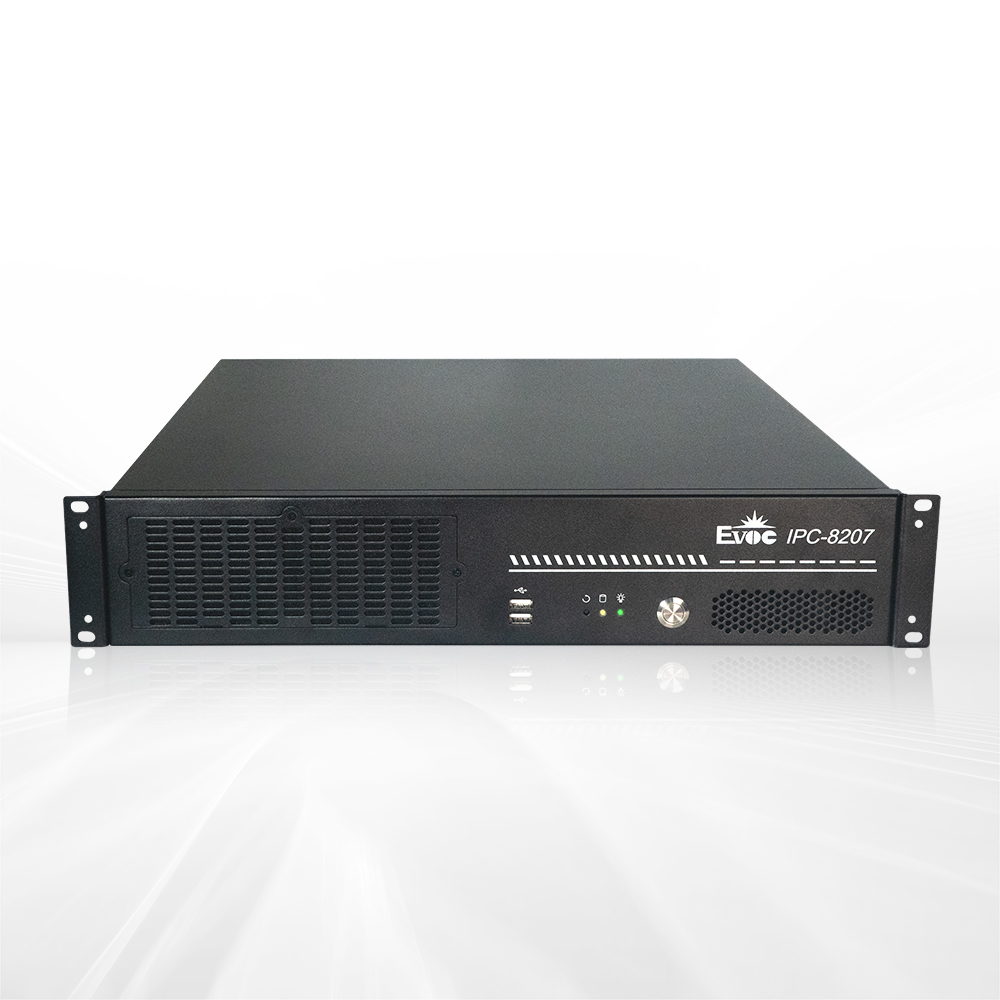

2U 19" Rackmount Chassis

Supports ATX & EPE Industrial Motherboard

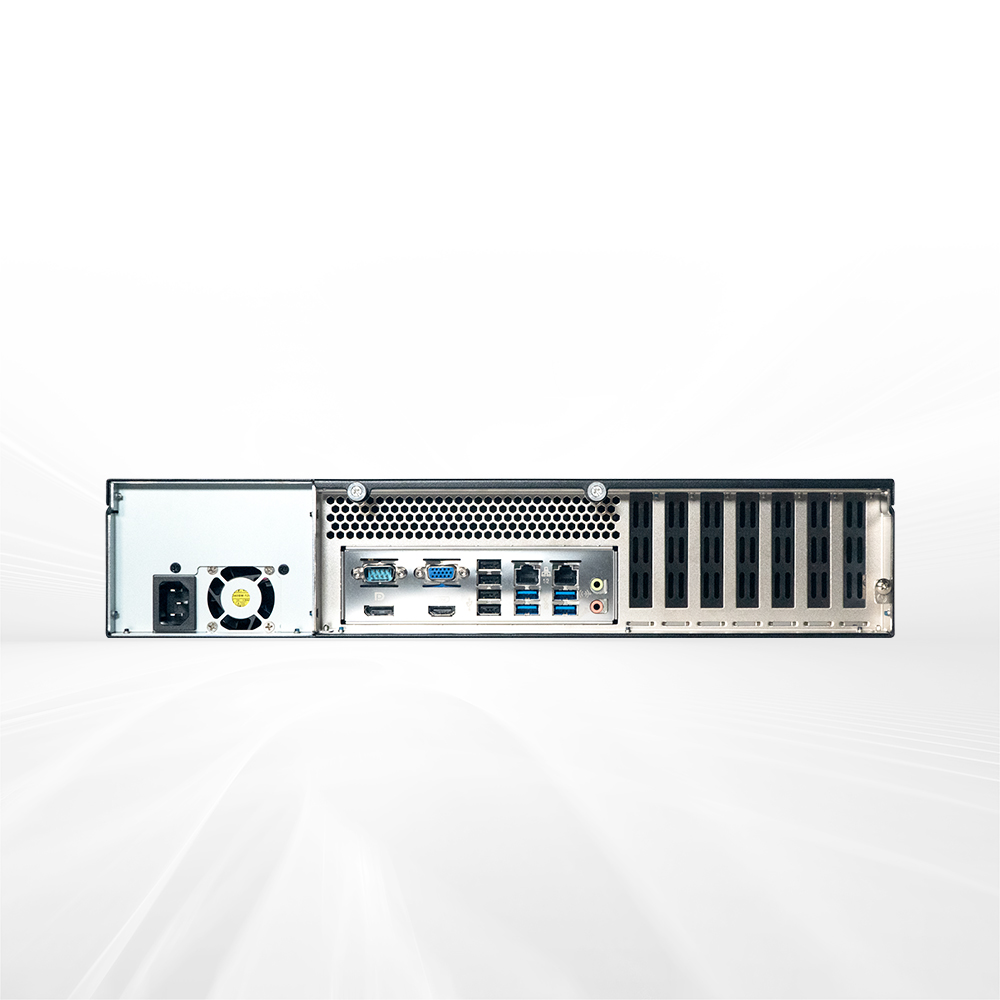

IPC-8207 is a 2U 19-inch standard rackmount chassis, compatible with EPE, EC0, EC9, EC7 and other types of full-length cards and industrial motherboards, compatible with a small 1U power supply, redundant power supply installation, front panel is with 2xUSB ports, power switch, status indicator, reset button. The front removable dust filter is easy to replace. There is air inlet on the front panel, air outlet on the rear panel, which has a excellent heat dissipation performance. It can be widely used in industrial control, industrial automation, intelligent transport, video surveillance and other fields.

Product Features

Outstanding EMC Performance

Excellent Heat Dissipation

Support Installation of Small 1U Power Supply and Redundant Power Supply

Compatible with Multiple Motherboards

It can be equipped with Standard ATX MATX ITX and EPE Series industrial motherboards

2U Standard Rackmount

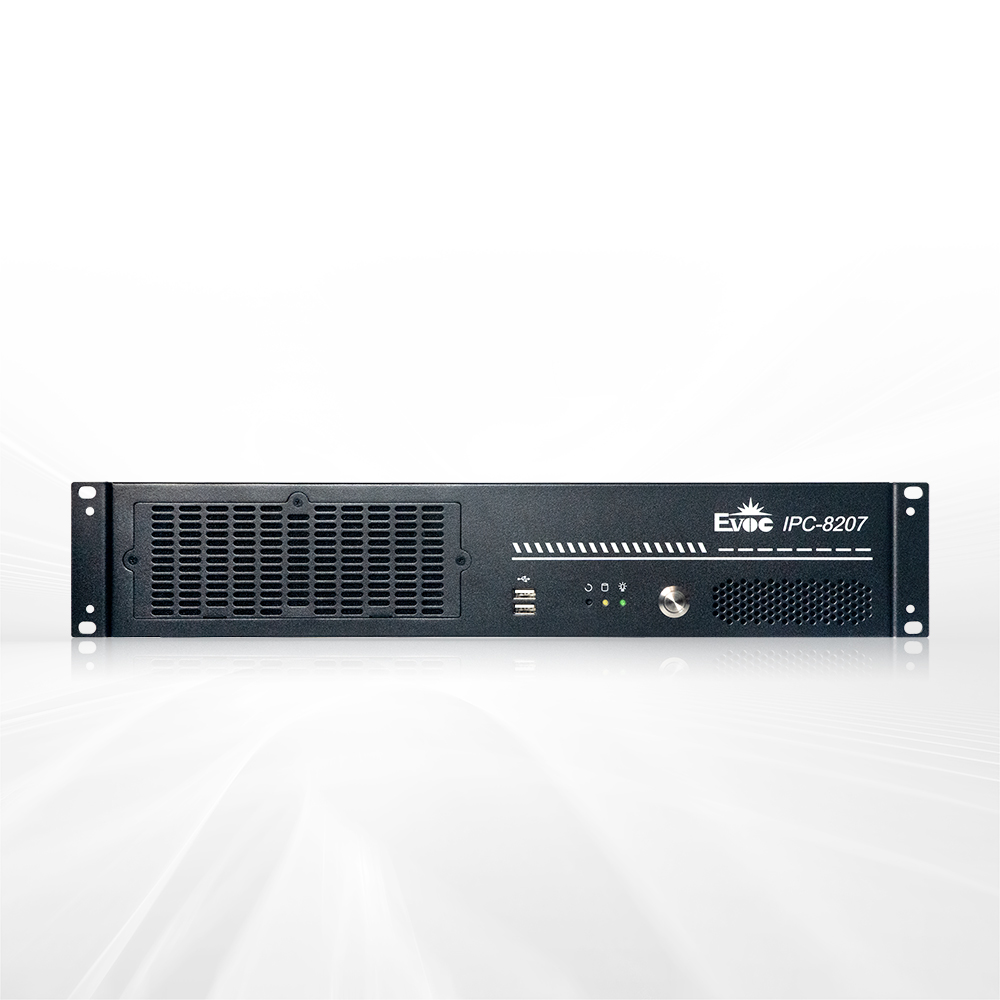

The Front Panel Features Two USB Ports, a Power Switch, Status Indicator Lights, and a Reset Button

Product Specifications

Item Description
Compatible Motherboard Can be installed with standard ATX, MATX, ITX, EPE series industrial motherboards
Storage Standard configuration: 1x3.5" hard disk bay, 1x 2.5" hard disk bay
IPC-8207-01/03 chassis: optional support up to 3x 3.5" hard disk bay, 1x 2.5" hard disk bay
IO Ports 2xUSB 2.0, power switch, reset switch, power and hard disk indicator lights
Expansion Card Slot IPC-8207-01: Equipped with EC0 series motherboard, supports up to 7 vertical half-height expansion card slots
IPC-8207-02: Equipped with EPE series motherboard, supports EPE backplane installation, supports horizontal full-height half-length expansion cards: PCI(3x)/PCIE(1x) expansion slots
IPC-8207-03: Equipped with EC0 series motherboard, supports up to 2 horizontal full-height expansion card slots by installing riser card, depending on the spec of motherboard and riser card.
Note: When using the IPC-8207-03 chassis with a riser card, please note:
① When you need to expand 2xPCIE slots, select the EB-X16-200G riser card, which can lead out 2xPCIE3.0 x8 signals. This riser card can only be used with the EC0-1823-05 motherboard, and cannot be used with other EC0 series standard motherboards.
② When you need to expand 1x PCIE slot, select the EB-X16-100H riser card, which can lead out 1x PCIE3.0x16 slot
③ This chassis cannot be used with the EC0-1826 motherboard, because of the PCIEx16 slot structure layout on the motherboard,the expansion slot cannot be leaded out.
Power Supply 1U FLEX power supply or redundant power supply
Working Temperature 0℃~+40℃ (with HDD or GPU)
0℃~+50℃ (with SSD)
Storage Temperature -40℃~+80℃
Constant Damp heat (40)℃ (95)%RH non-condensing
Dimensions 482.6mm(W)x88mm(H)x475mm(D)
