Supports ATX EATX & EPE Industrial Motherboard

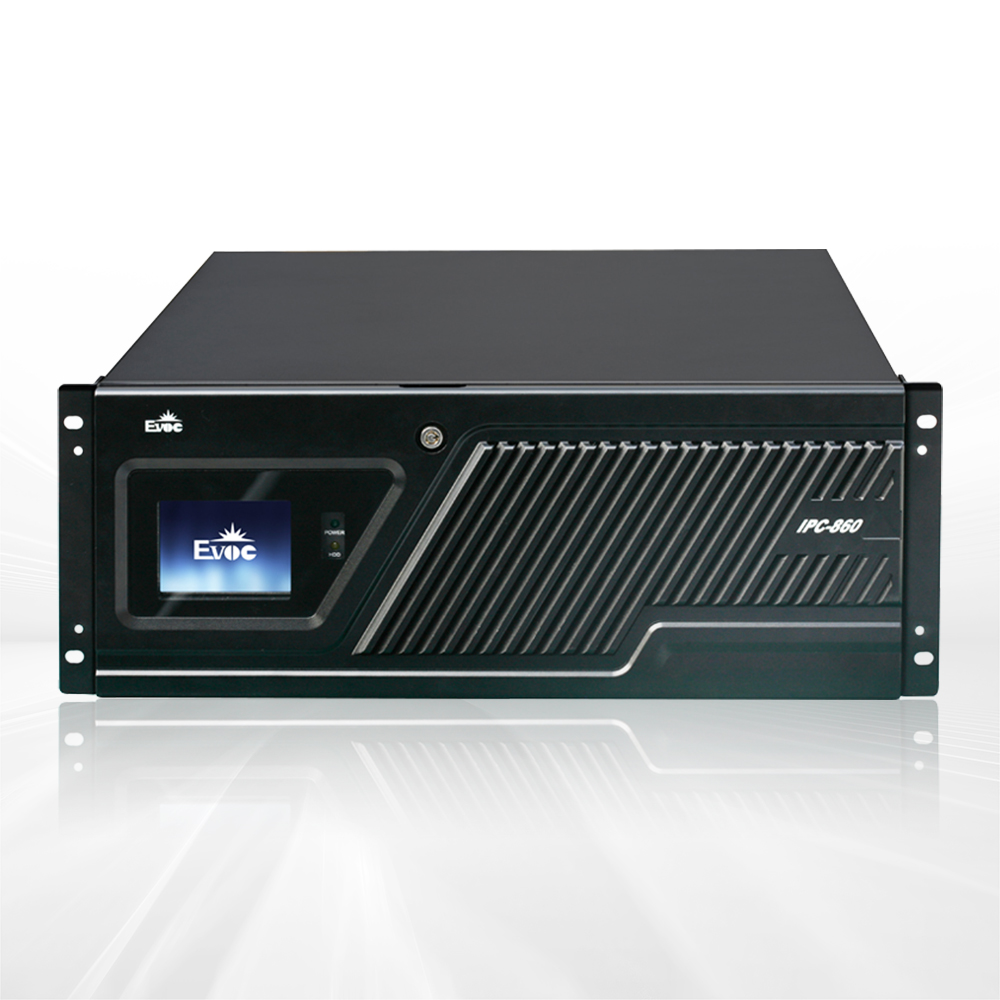

IPC-860 is a 19-inch 4U rack-mounted industrial chassis, which is made of high-quality metal steel plates. A high-power fan is used inside to directly dissipate heat from the system, which has good ventilation and heat dissipation performance. It has 4 × 3.5" pull-out type hard disk module, and is equipped with user interactive display module, which has touch function and can realize shutdown, information display, status monitoring, process management, log management, etc.
It can be widely used in bank security monitoring system, intelligent building management system (IBMS), integrated security management system (ISMS), integrated traffic management system (ITMS), machine vision, workstation, insurance, securities and other industry recording monitoring systems.
| Item | Description | |
|---|---|---|
| Adaptive motherboard | EPE full-length card, ATX single board, and EATX server motherboard | |
| Processor | Depends on motherboard: SVE-2901 motherboard: supports dual-channel Xeon E5-2600 V3/V4 series processors | |
| Memory | Depends on motherboard: SVE-2901 (dual-channel C612): supports 16 × 288PIN DDR4 slot, supporting up to 512GB DDR4 ECC RDIMM | |
| Adaptive Backplane | When an EPE series motherboard is used, it can be paired with 10-13-slot standard EPE backplane | |

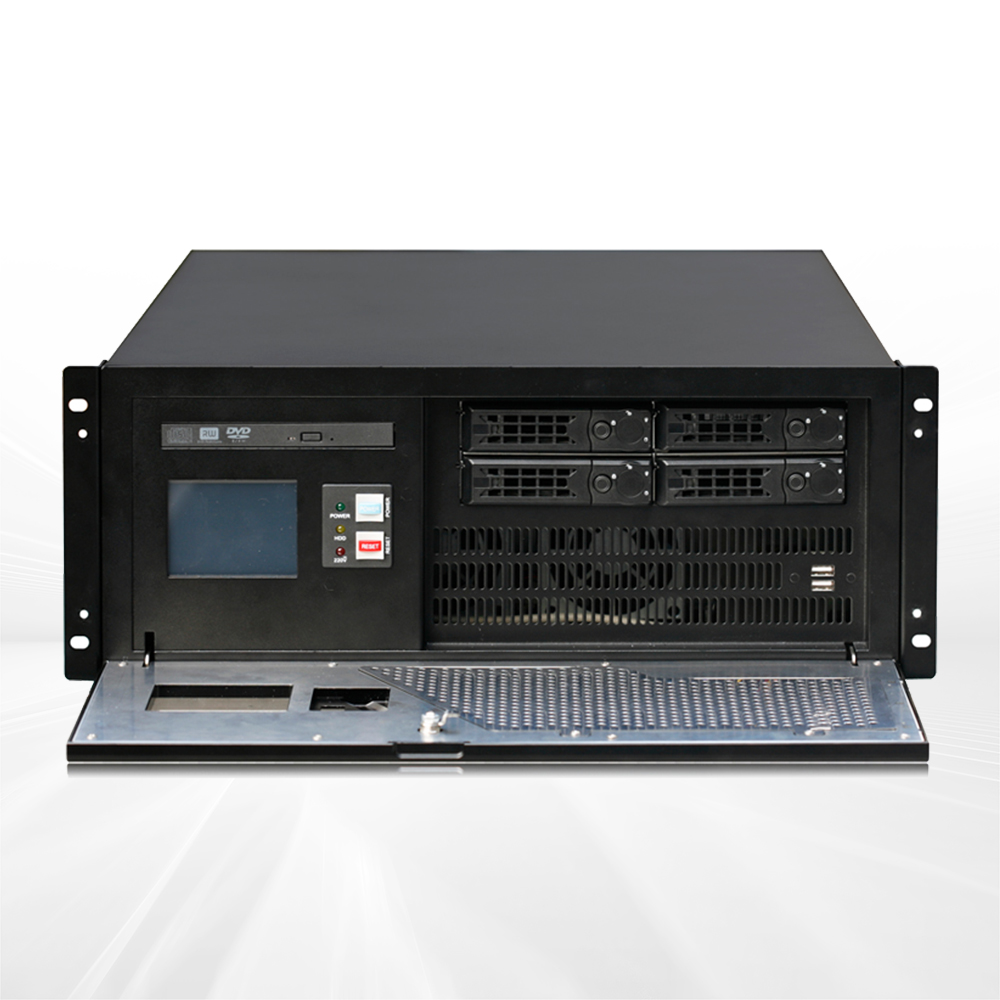

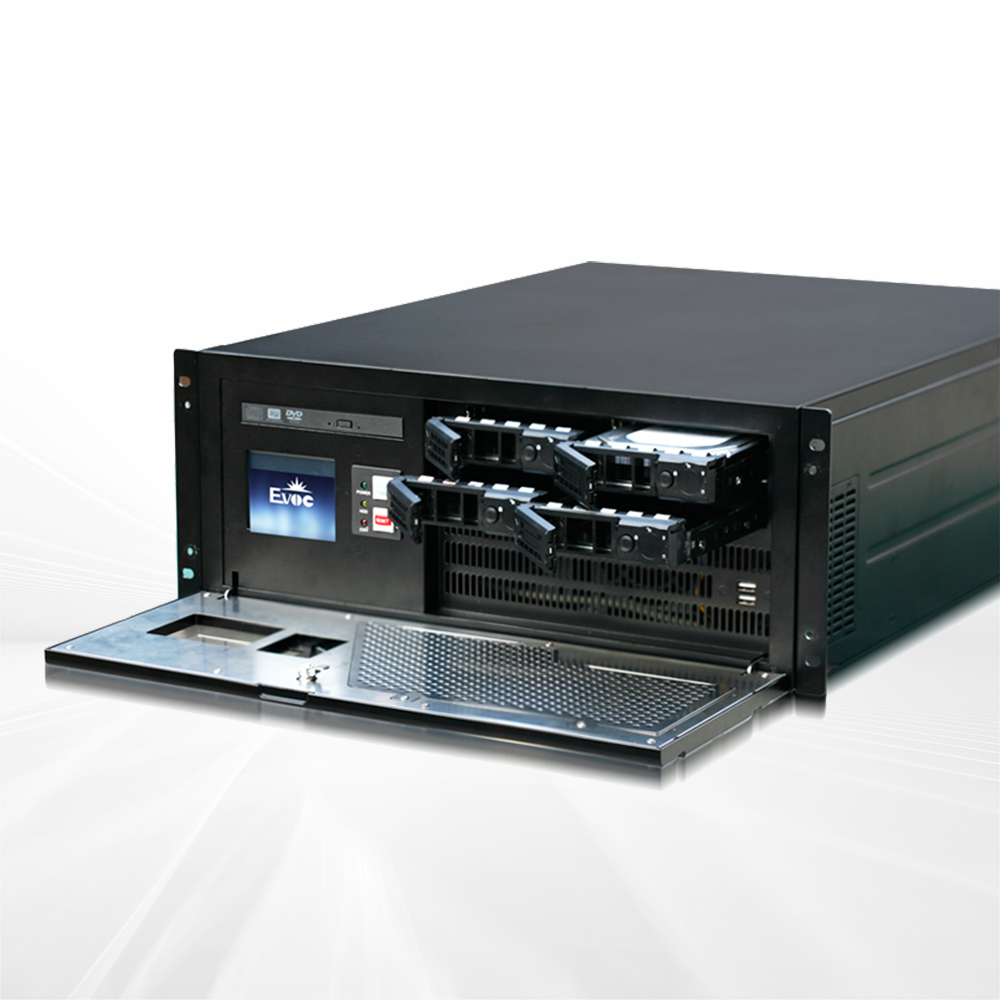

| Storage | Compatible with two types of hard disk modules: A: 4 × 3.5" pull-out hard disks (without shock absorption) B: 2 × 3.5" pull-out hard disks (shock absorption) Note: The server motherboard is compatible with SAS hard disk installation, and all hard disks are placed in the safety door to ensure data security. |
|
| I/O Port | Power switch, reset switch; power supply and hard disk indicator lights; there are 2 × USB2.0 port in the lockable safety door; Rear port: depends on different motherboard configurations |
|
| Power Supply | Supports standard PS2 ATX power supply; supports 2U redundant power supply | |
| Working Temperature | ECO/EPE configuration: 0°C~50°C, 5%~90% (non-condensing state) EATX server configuration: 0°C~40°C, 5%~90% (non-condensing state) |
|
| Storage Temperature | -20°C~60°C, 5%~90% (non-condensing state) | |
| Overall Dimensions (W×H×D) | 482 mm×177 mm×552 mm | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| IPC-860-Product Manual | Various Platform | Vol15.0 | 2025-04-27 | 0.11MB | Download 𐃯 |
