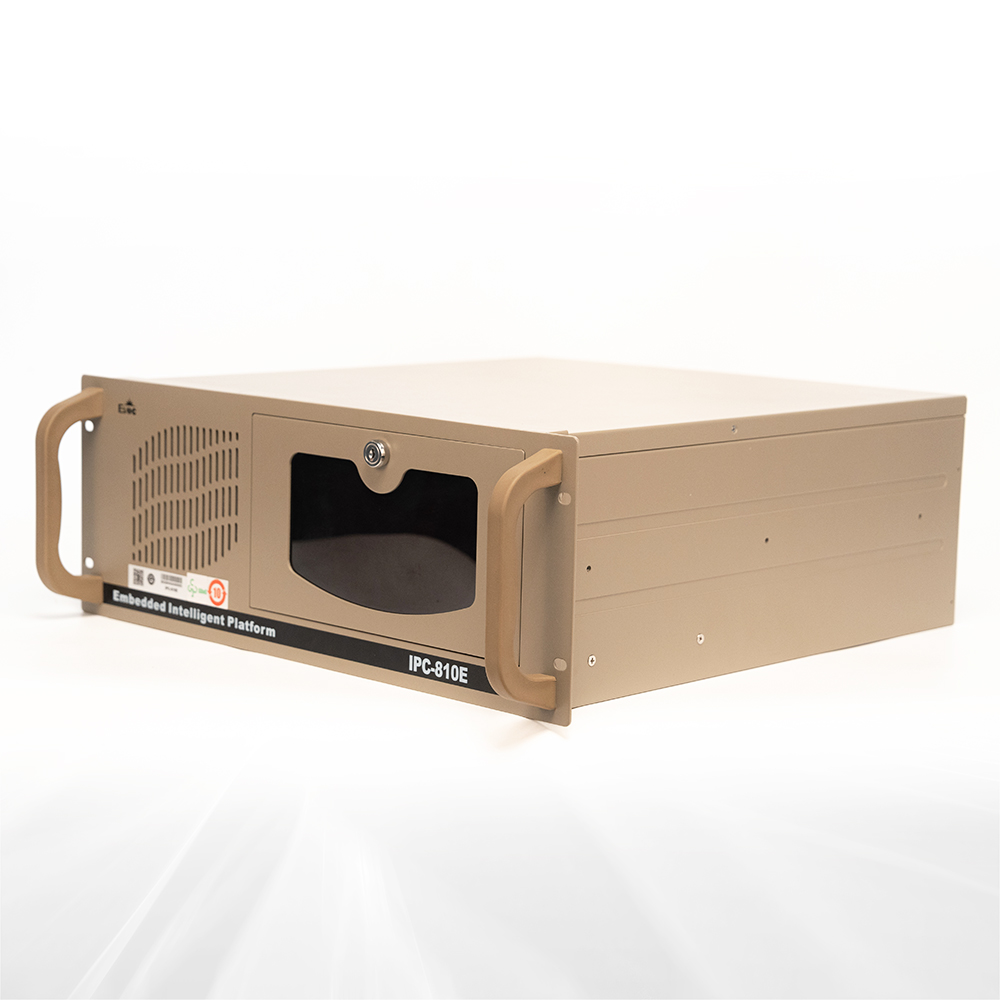

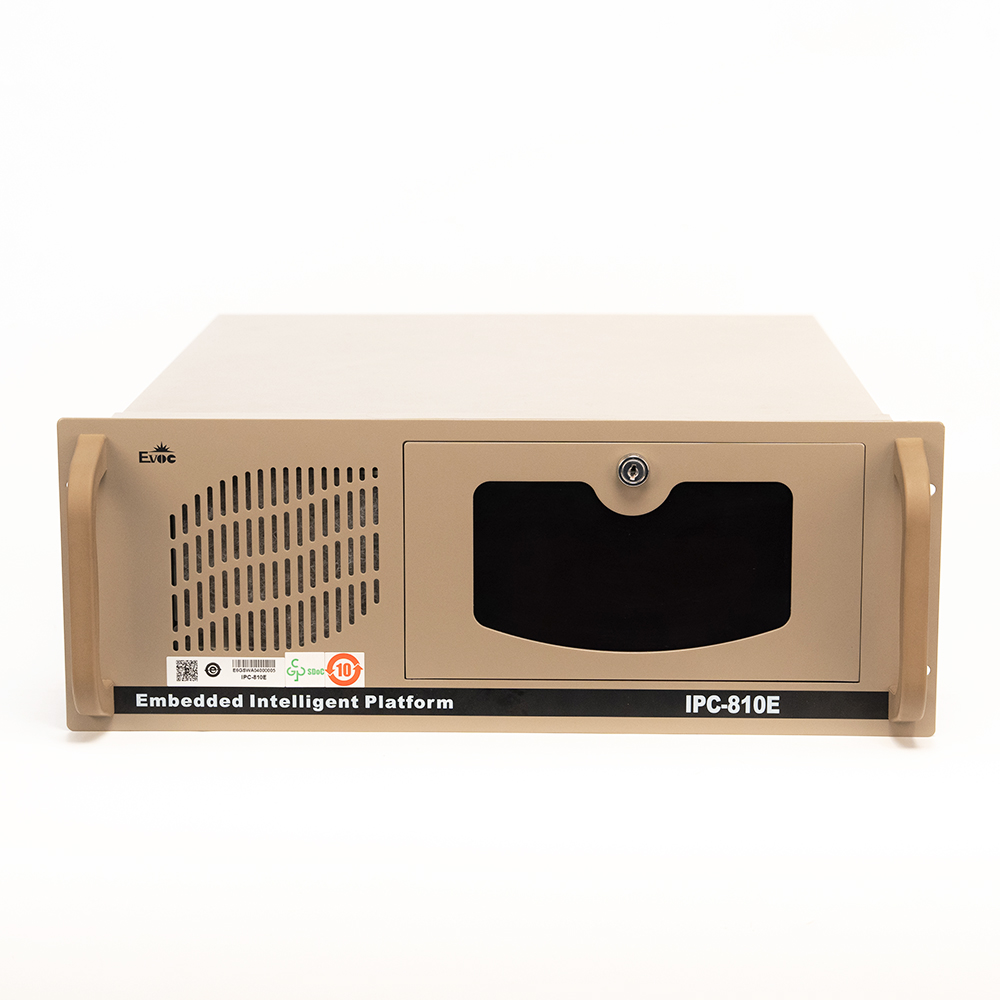

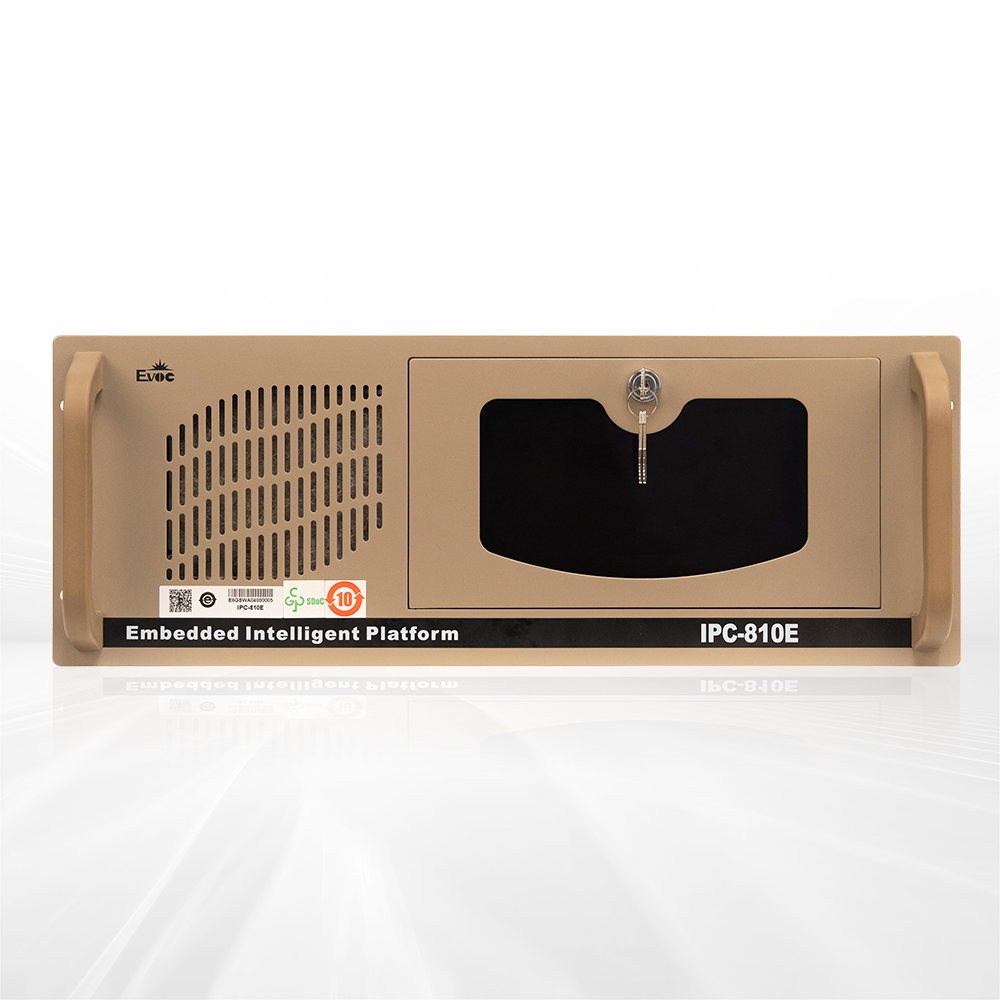

IPC-810E
4U 19" Rackmount Chassis

Supports ATX & EPE Industrial Motherboard

IPC-810E is a 4U rack-mounted chassis made of high-quality steel plate and compatible with various full-length cards and industrial motherboards such as EPE, EC9 and ECO. A 5.25" CD-ROM and two 3.5" shock-absorbing hard disk bays can be installed, with reasonable structure. It can be widely used in various fields such as communication, network, finance, electric power, transportation and industrial automation.

Product Features

Professional Heat Dissipation

Super EMC performance

Compatible with various motherboards

4U standard rack-mounted

Product Specifications

Item		Description
Adaptive motherboard		EPE full-length card and ATX single board
Adaptive Backplane		EPE series backplane
Memory		1 x 5.25-inch CD-ROM bay; 2 x 3.5-inch shock-absorbing hard disk bay; 1 x 3.5-inch HDD space (without vibration reduction)

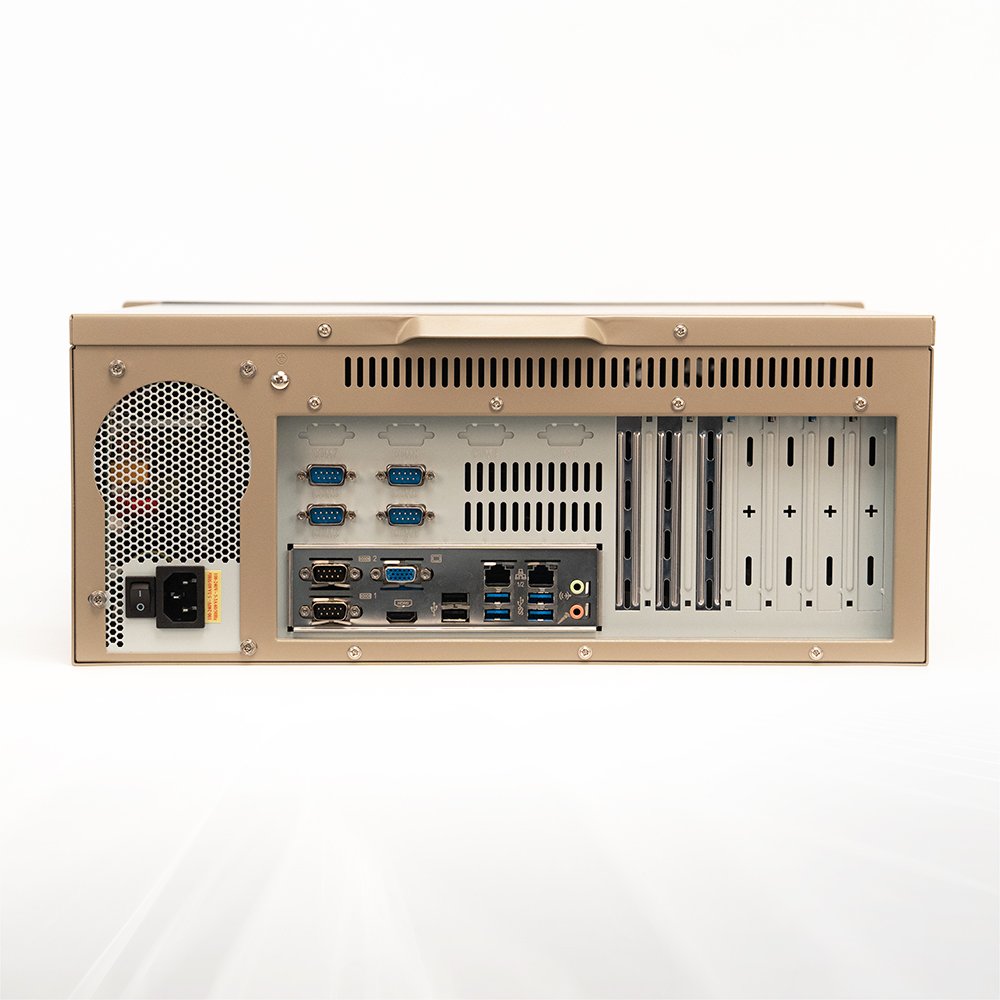

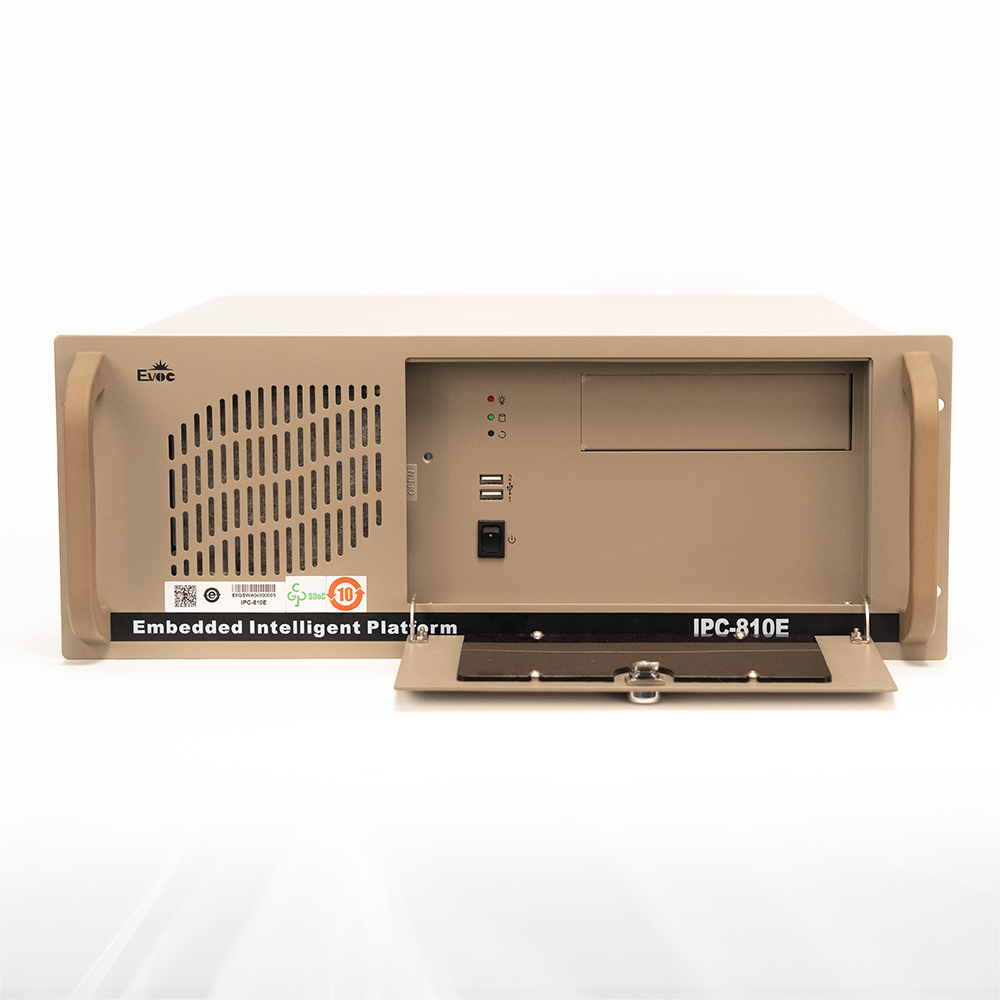

I/O Port		Power switch, reset switch, power supply and hard disk indicator; 2 x USB port in front
Power Supply		Standard ATX power supply
Working Temperature		0°C~50°C, 5%~90% (non-condensing state)
Storage Temperature		-20°C~60°C, 5%~90% (non-condensing state)
Overall Dimensions （W×H×D）		482 mm×177 mm×470.4 mm

Downloads

Name	Type	Platform	Version number	Update Date	Size	Download
IPC-810E-Product Manual	pdf	Various Platform	Vol15.0	2025-04-27	0.10MB	Download 𐃯
