Supports ATX & EPE Industrial Motherboard

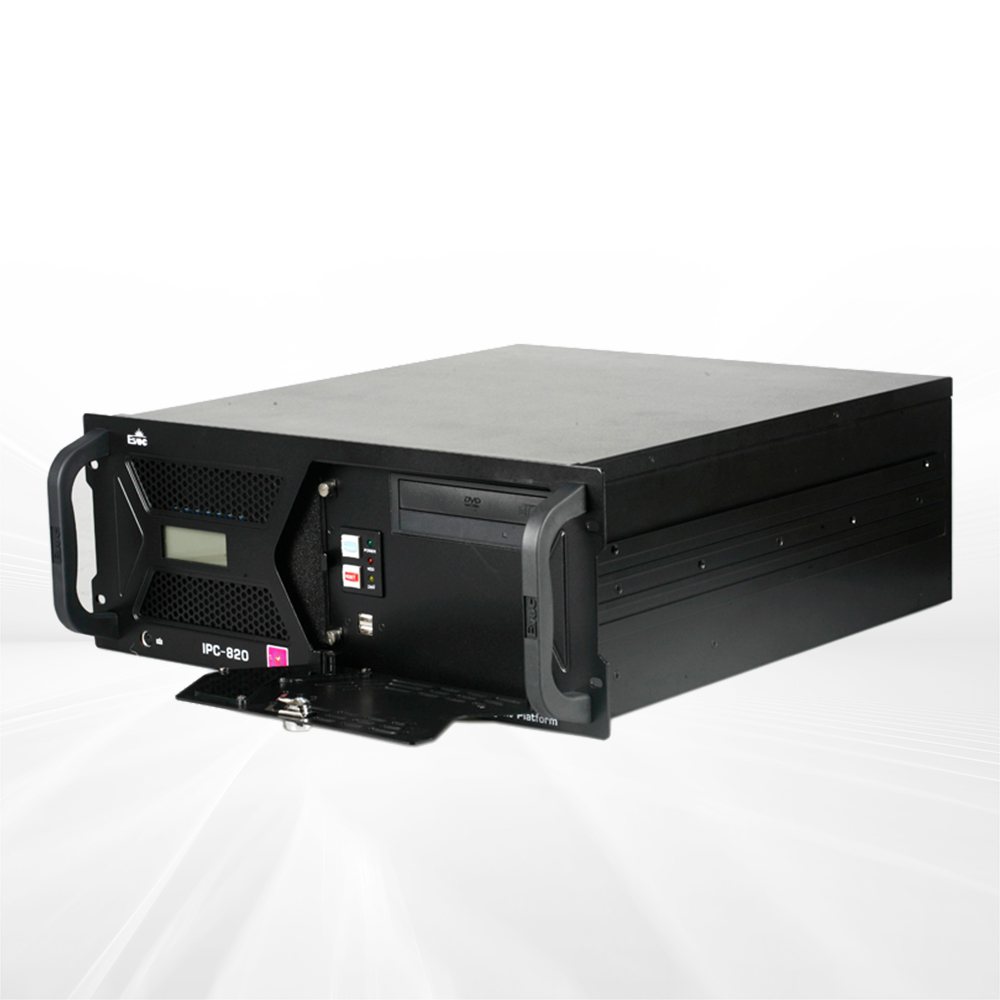

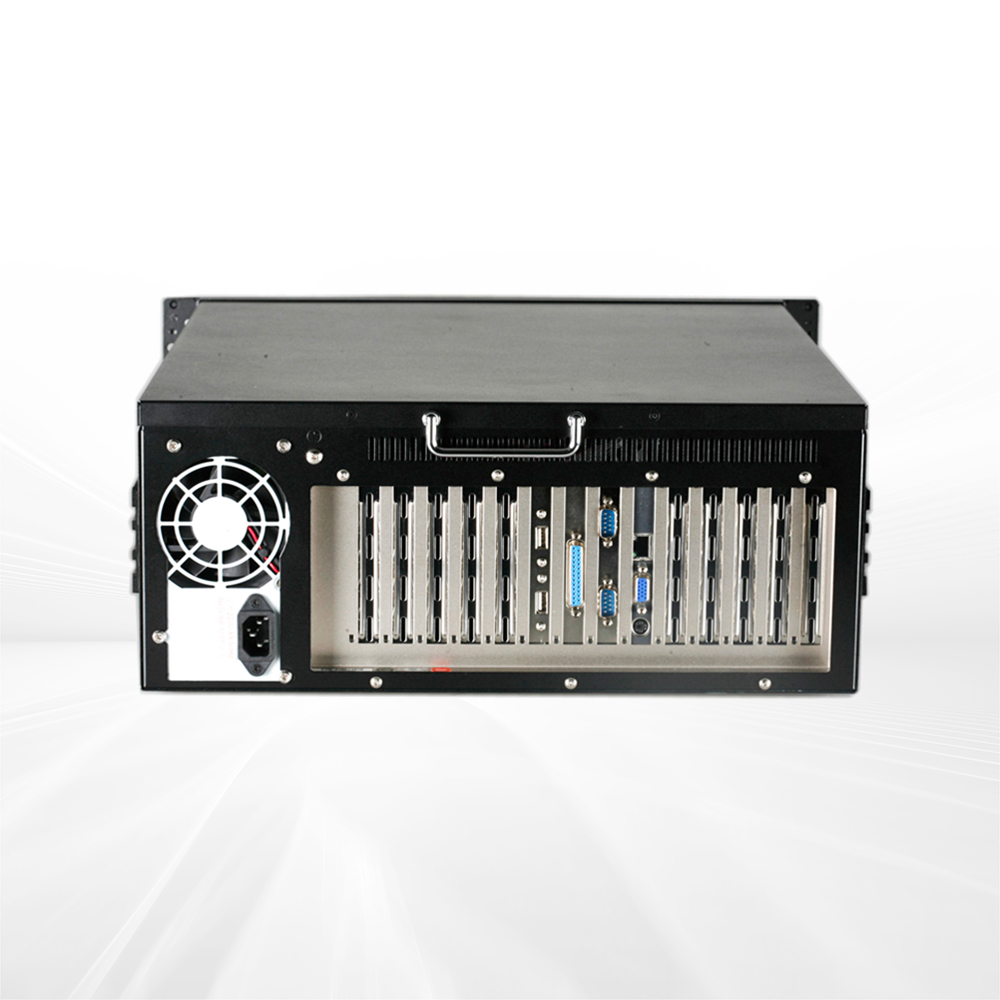

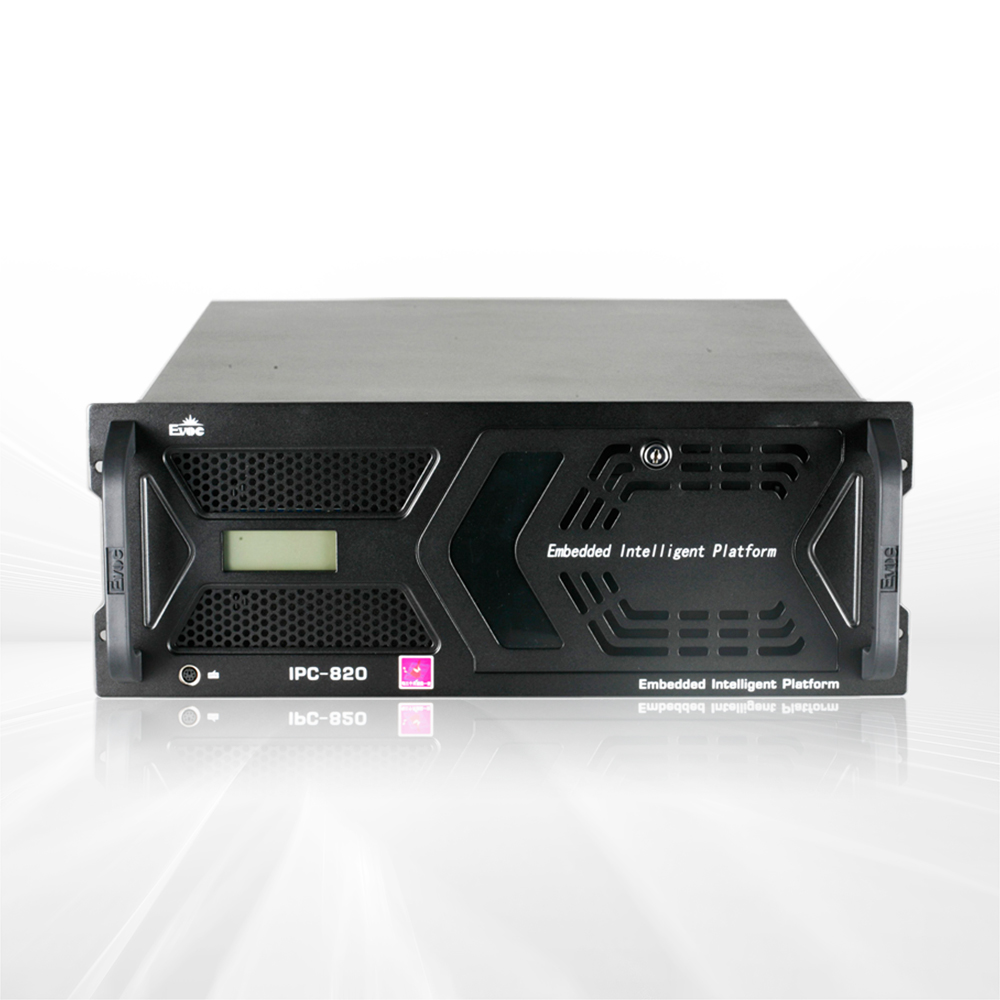

IPC-820 is a 4U rack-mounted chassis compatible with various full-length cards and industrial motherboards such as EPE, EC9 and ECO. It has a built-in high-speed air intake fan with good heat dissipation, vibration resistance and EMC performance. The front panel is made of sheet metal, and the chassis is made of high-quality steel plate. The integrated lock protection system for chassis and door panels can also avoid the intrusion of unauthorized personnel. It can be widely used in various fields such as communication, network, finance, electric power, transportation and industrial automation.
| Item | Description | |
|---|---|---|
| Adaptive motherboard | EPE full-length card and ATX single board | |
| Adaptive Backplane | EPE series backplane | |
| Memory | 1 x 5.25-inch CD-ROM bay; 2 x 3.5-inch shock-absorbing hard disk bay; 1 x 3.5-inch HDD space (without vibration reduction) | |
| I/O Port | Power switch, reset switch, power supply and hard disk indicator; 2 x USB port in front | |
| Power Supply | Standard ATX power supply | |
| Working Temperature | 0°C~50°C, 5%~90% (non-condensing state) | |
| Storage Temperature | -20°C~60°C, 5%~90% (non-condensing state) | |
| Overall Dimensions (W×H×D) | 482.6 mm×177 mm×470.4 mm | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| IPC-820-Product Manual | Various Platform | Vol15.0 | 2025-04-27 | 0.11MB | Download 𐃯 |
