4-8ports GbE RJ45 Network Expansion Module
This series of network cards is a server level high-performance network card module developed based on Intel XL710 or E810 series network card chips. It provides one or two 40G or 100G fiber network interfaces, and some modules can support one set of Bypass function. The network card module is installed in a plug and play manner and is suitable for Advantech's network communication series products.
Adopting industrial design concepts, it can meet the 7 * 24H uninterrupted operation of products
| Item | Description | |
|---|---|---|

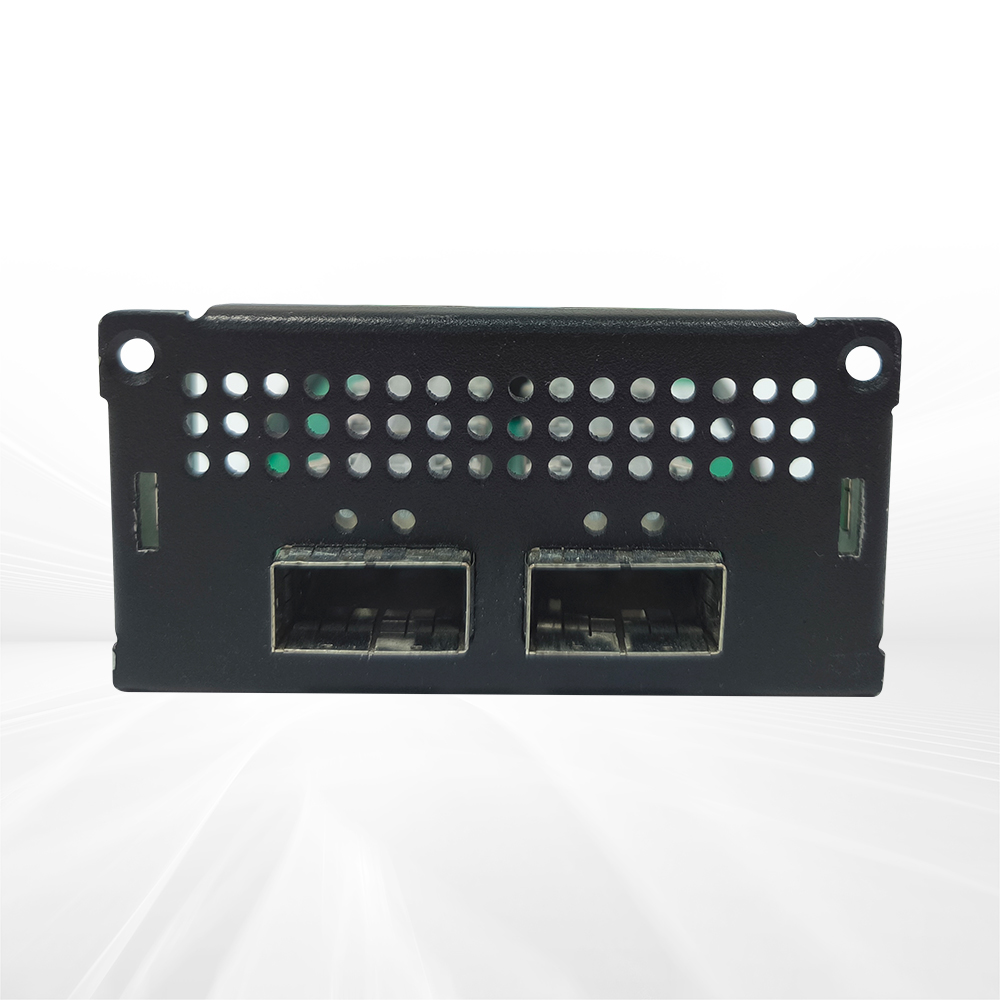

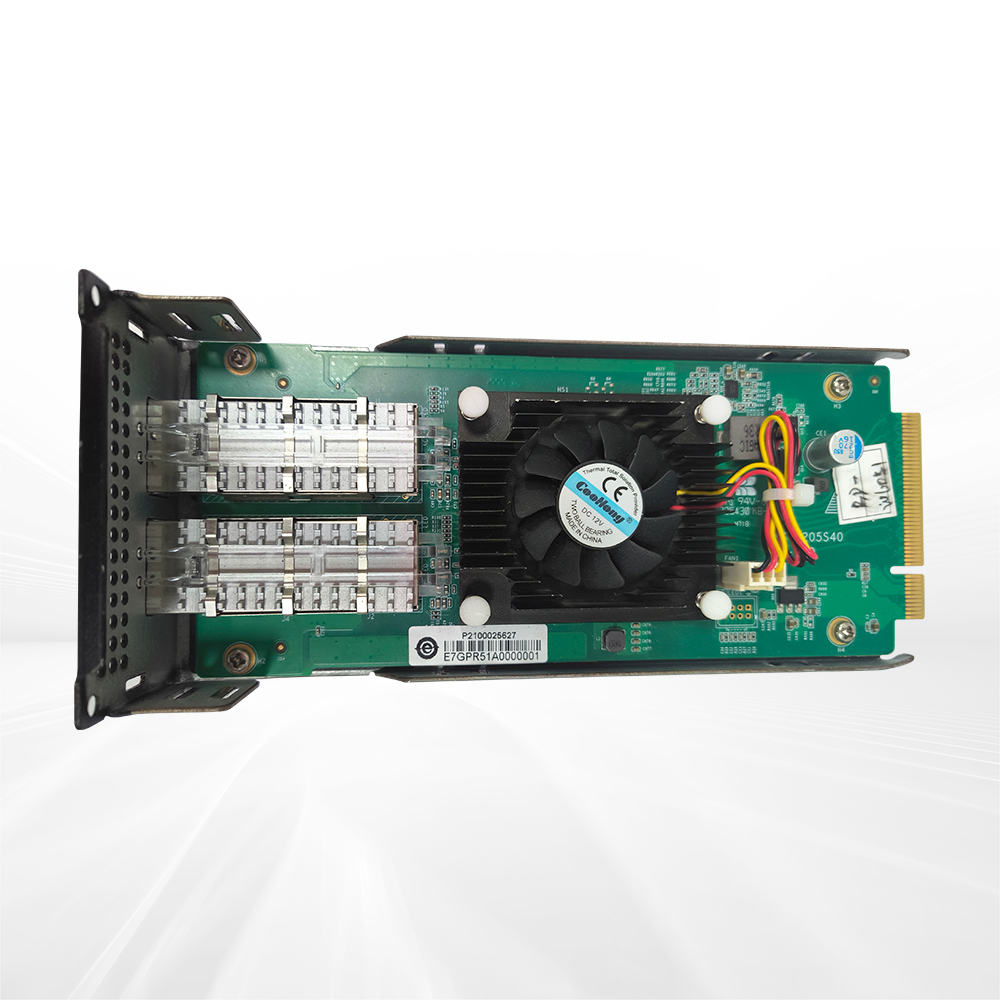

| ENS-4205S40-01 | Chipset | Intel XL710 |
| Bus | 1 x PCIE X8 | |
| LAN Port | 2 | |
| LAN Port Speed | 40G | |
| LAN Port Type | QSFP+ | |
| bypass | NA | |
| Product Dimensions | 182.8mm x 78.6mm | |
| ENS-4205S40-02 | Chipset | Intel XL710 |
| Bus | 1 x PCIE X8 | |
| LAN Port | 1 | |
| LAN Port Speed | 40G | |
| LAN Port Type | QSFP+ | |
| bypass | NA | |
| Product Dimensions | 182.8mm x 78.6mm | |

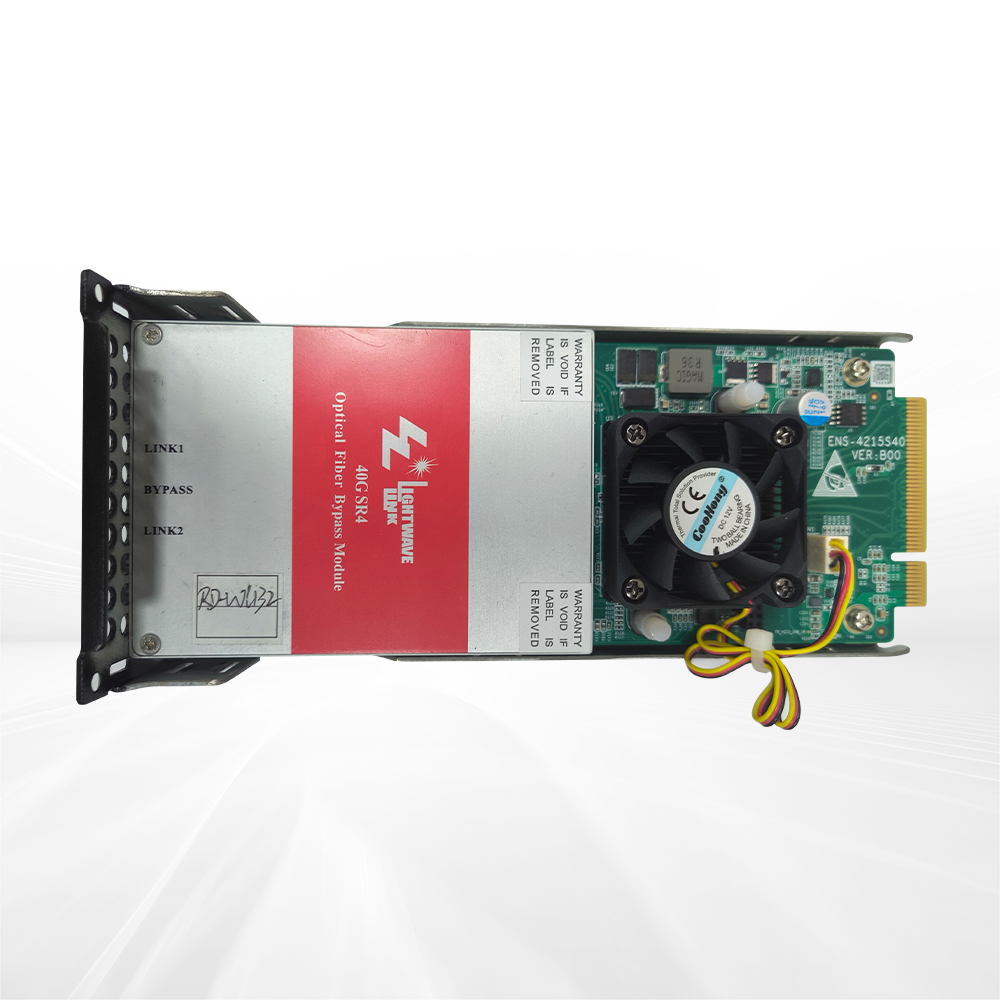

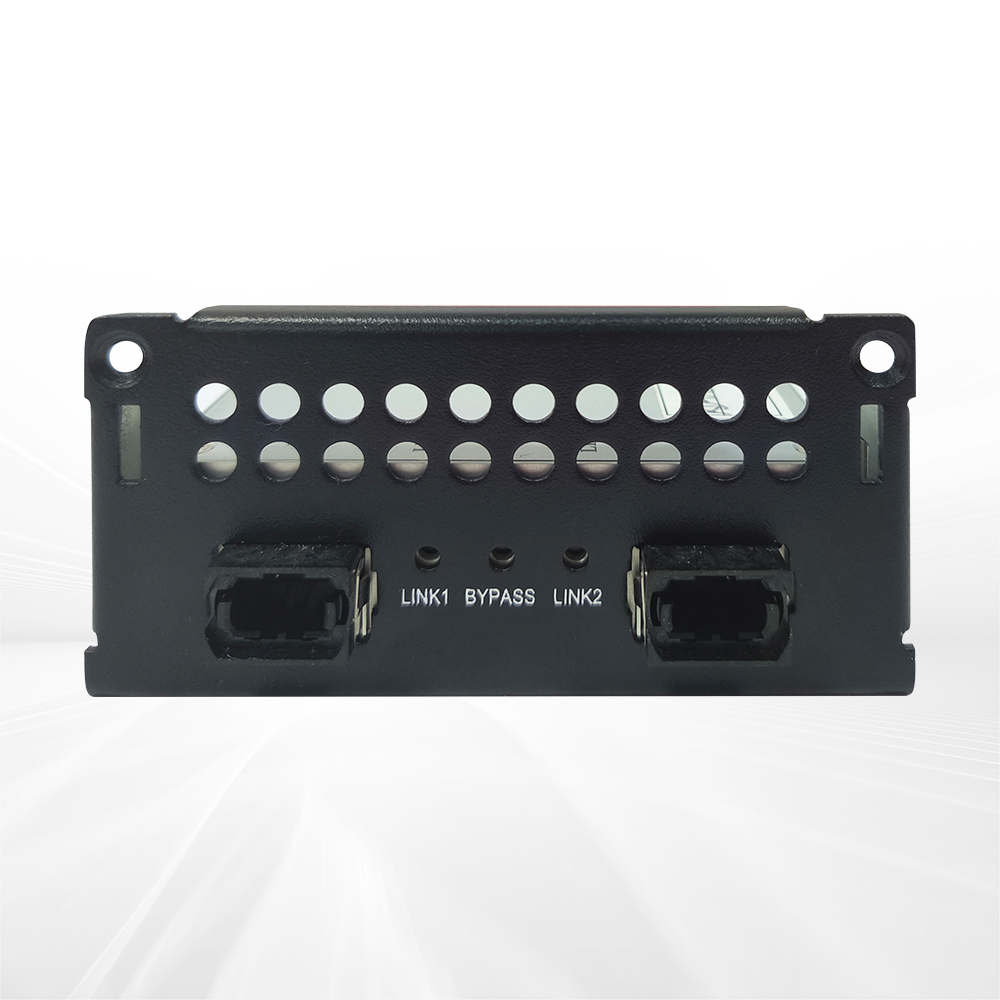

| ENS-4215S40-MM | Chipset | Intel XL710 |
| Bus | 1 x PCIE X8 | |
| LAN Port | 2 | |
| LAN Port Speed | 40G | |
| LAN Port Type | NPO Multimode | |
| bypass | 1 | |
| Product Dimensions | 182.8mm x 78.6mm | |
| ENS-4215S40-SM | Chipset | Intel XL710 |
| Bus | 1 x PCIE X8 | |
| LAN Port | 2 | |
| LAN Port Speed | 40G | |
| LAN Port Type | LC Singlemode | |
| bypass | 1 | |
| Product Dimensions | 182.8mm x 78.6mm | |

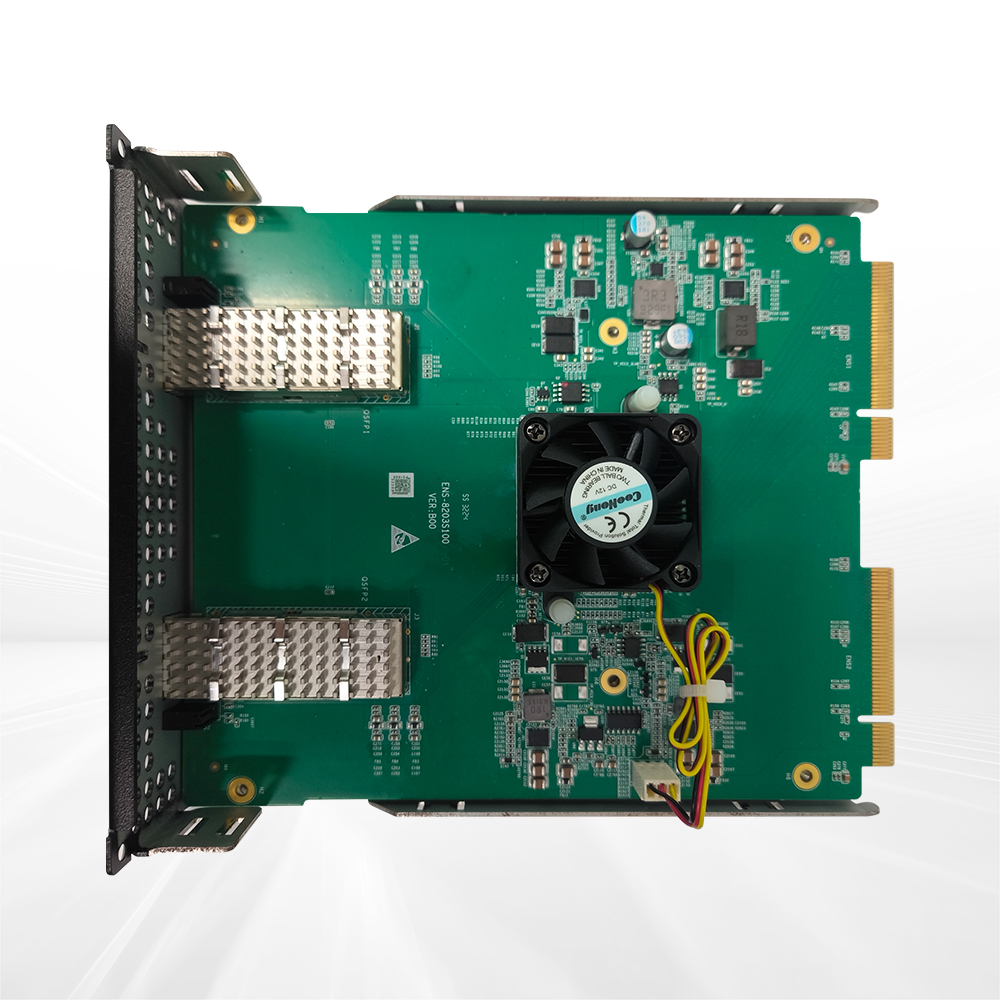

| ENS-8203S100-01 | Chipset | Intel E810 |
| Bus | 1 x PCIE X16 | |
| LAN Port | 2 | |
| LAN Port Speed | 100G | |
| LAN Port Type | QSFP28 | |
| bypass | NA | |
| Product Dimensions | 183.6 mmx157.6 mm | |
| ENS-8203S100-02 | Chipset | Intel E810 |
| Bus | 1 x PCIE X16 | |
| LAN Port | 1 | |
| LAN Port Speed | 100G | |
| LAN Port Type | QSFP28 | |
| bypass | NA | |
| Product Dimensions | 183.6 mmx157.6 mm | |
