4-8ports GbE RJ45 Network Expansion Module
Intel I350/WX-1860

4-8ports GbE RJ45 Network Expansion Module

This series of network cards is developed based on Intel I350 or domestic network card chips, with 4 or 8 RJ45 gigabit network port modules. The network ports can adapt to 10/100/1000Mbps networks and support up to 4 sets of bypass functions. The network card modules are installed in a plug and play manner and are suitable for Advantech's network communication series products.

Product Features

Industrial Quality

Adopting industrial design concepts it can meet the 7 * 24H uninterrupted operation of products

Modular design

Adopting modular design, compatible with bypass and without bypass

Product Specifications

Item		Description

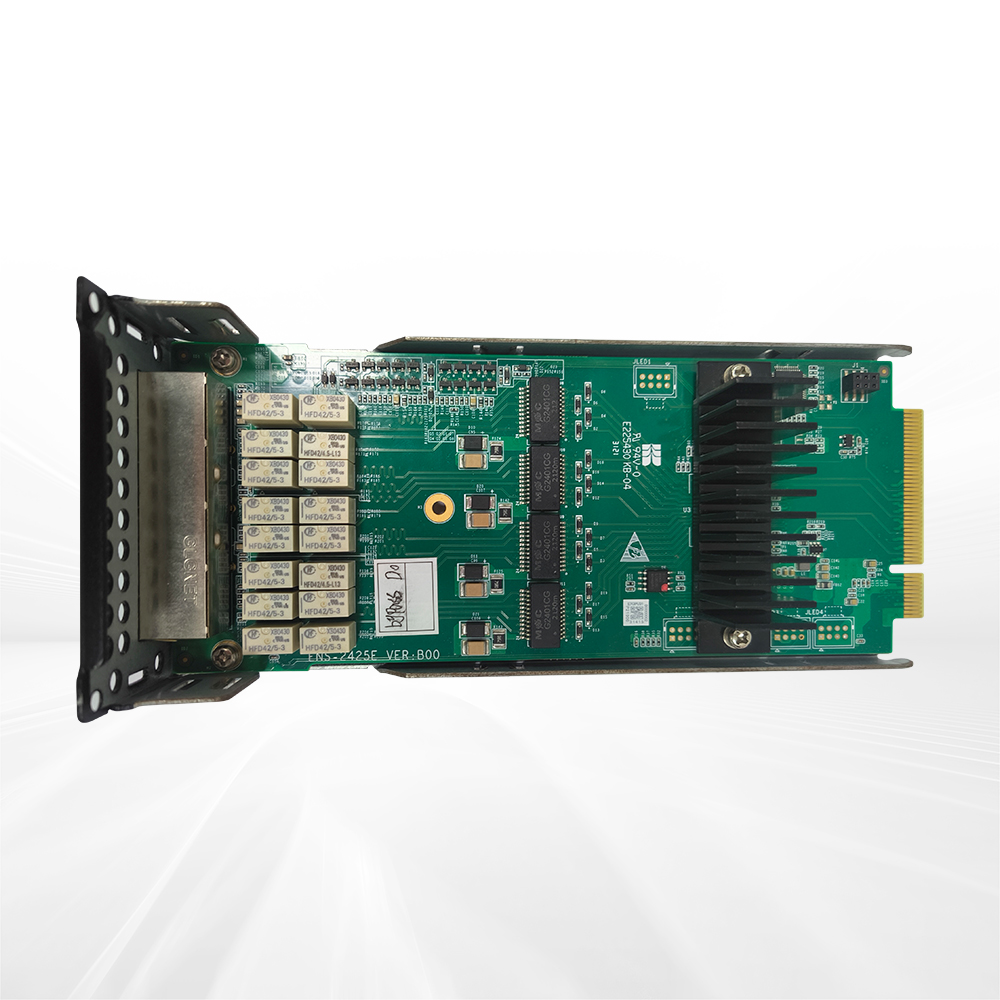

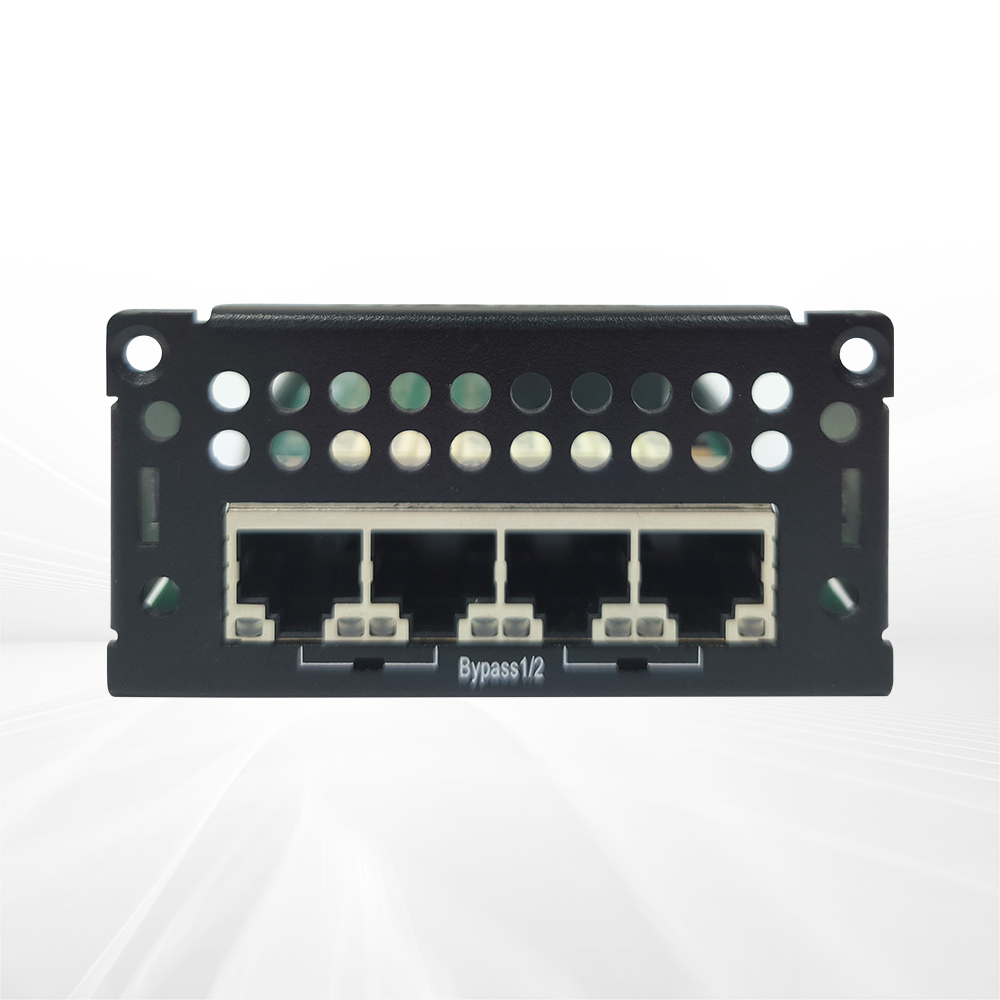

ENS-2425E	Chipset	WX1860/Netswift WX1860
	Bus	1 x PCIE X4
	LAN Port	4
	LAN Port Speed	1G
	LAN Port Type	RJ45
	bypass	2 groups available, optional 0 group
	Product Dimensions	182.8mm x 78.6mm
ENS-2421E	Chipset	Intel I350AM4
	Bus	1 x PCIE X4
	LAN Port	4
	LAN Port Speed	1G
	LAN Port Type	RJ45
	bypass	2 groups available, optional 0 group
	Product Dimensions	182.8mm x 78.6mm

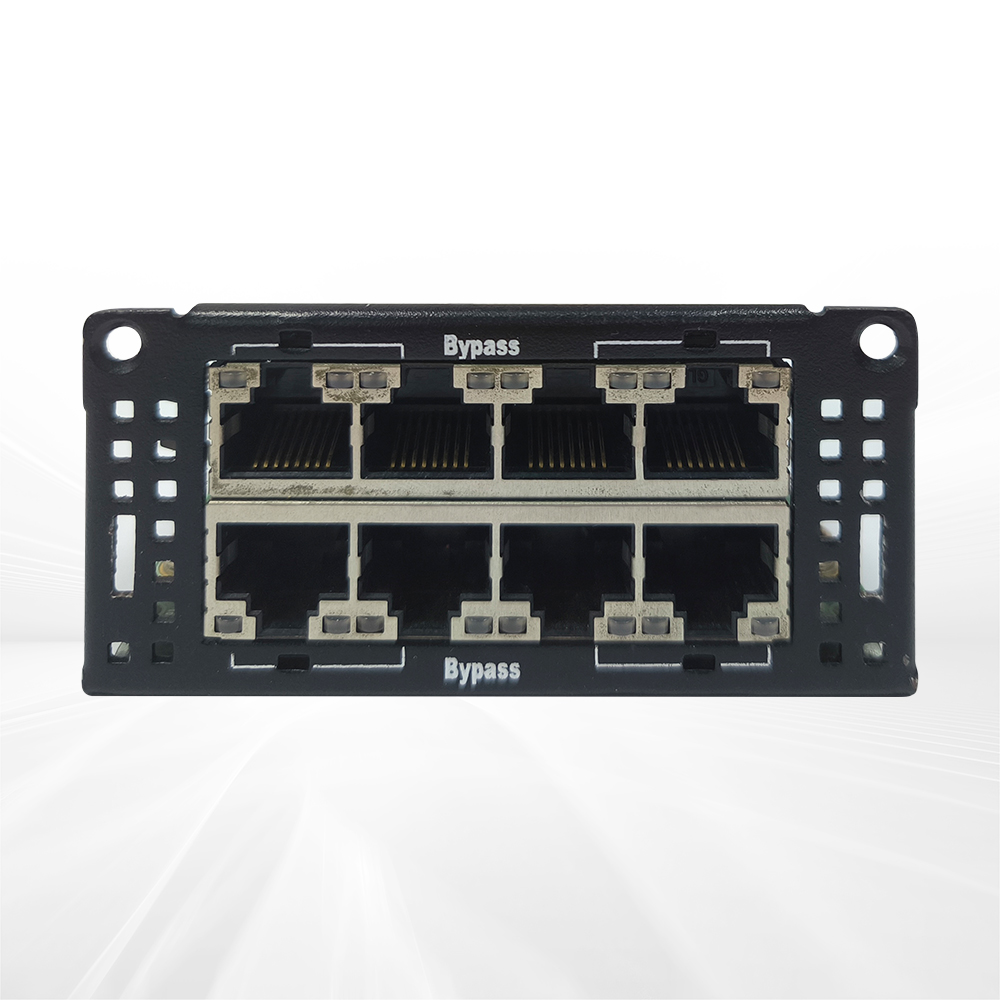

ENS-2841E(B)	Chipset	Intel I350AM4
	Bus	1 x PCIE X4
	LAN Port	8
	LAN Port Speed	1G
	LAN Port Type	RJ45
	bypass	Support up to 4 groups, optional 0 groups
	Product Dimensions	182.8mm x 78.6mm

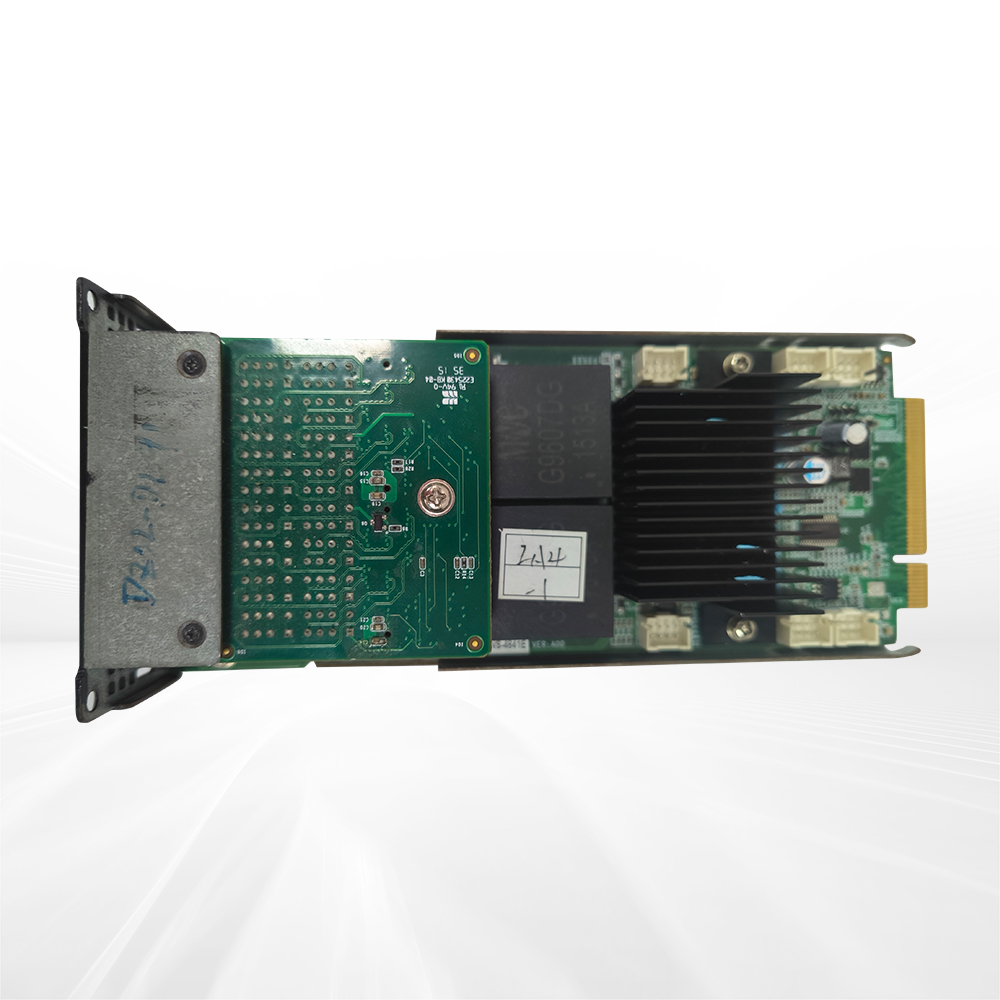

ENS-4841E	Chipset	Intel I350AM4
	Bus	2 x PCIE X4
	LAN Port	8
	LAN Port Speed	1G
	LAN Port Type	RJ45
	bypass	Supports up to 4 groups, with the option to choose 0 groups
	Product Dimensions	182.8mm x 78.6mm
