4-8ports GbE RJ45 Network Expansion Module
This series of network cards is developed based on Intel I350 or domestic gigabit network card chips, with 4 or 8 gigabit optical port modules. Some modules can support 2 sets of bypass functions, and the network card modules are installed in a plug and play manner, suitable for Advantech's network communication series products.
Adopting industrial design concepts, it can meet the 7 * 24H uninterrupted operation of products
Item | Description | |
---|---|---|

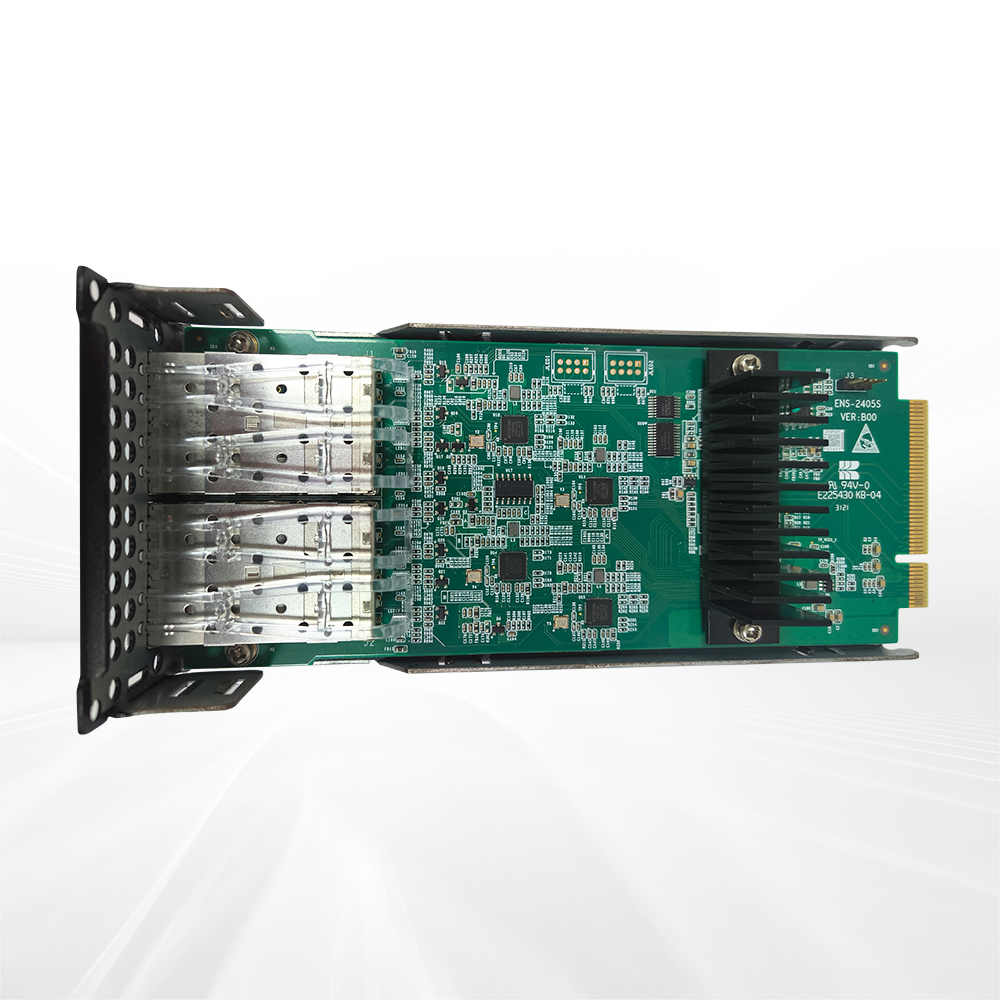

ENS-2405S | Chipset | WX1860/Netswift WX1860 |
Bus | 1 x PCIE X4 | |
LAN Port | 4 | |
LAN Port Speed | 1G | |
LAN Port Type | SFP | |
bypass | NA | |
Product Dimensions | 182.8mm x 78.6mm | |

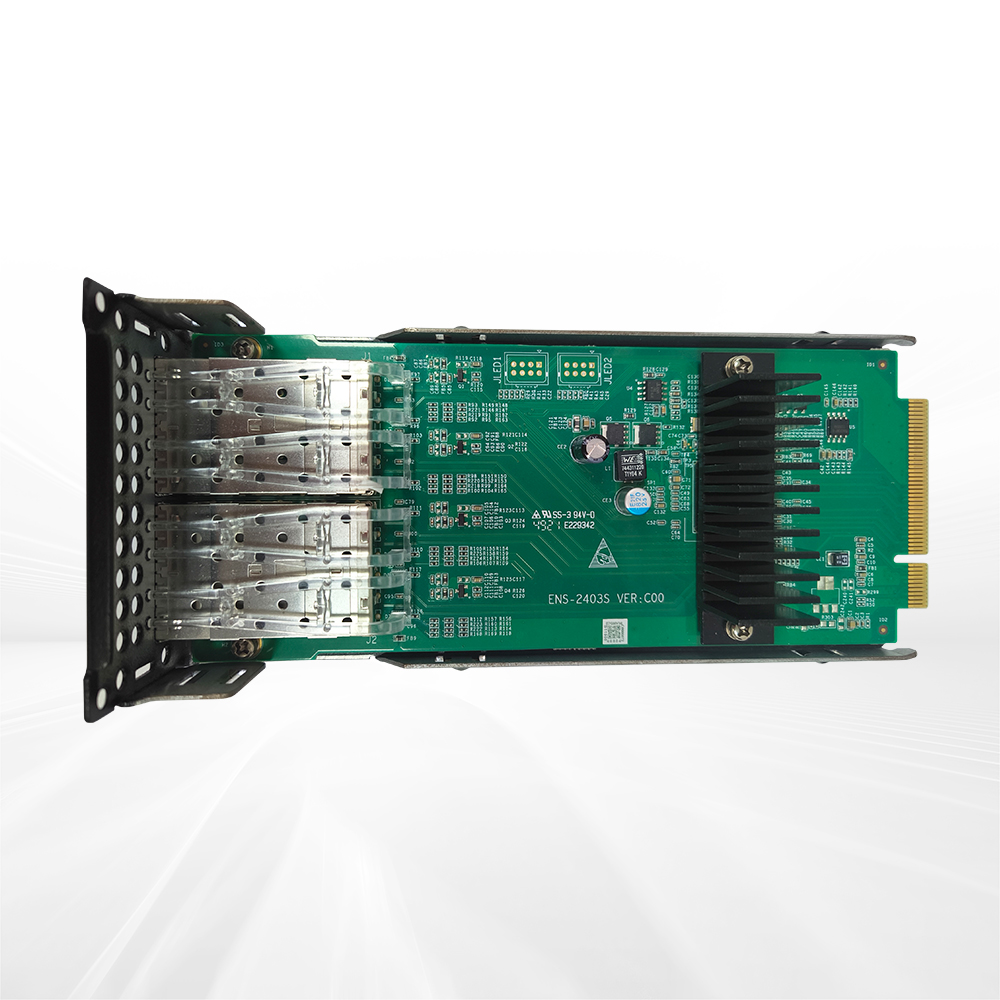

ENS-2403S | Chipset | Intel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 4 | |
LAN Port Speed | 1G | |
LAN Port Type | SFP | |
bypass | NA | |
Product Dimensions | 182.8mm x 78.6mm | |

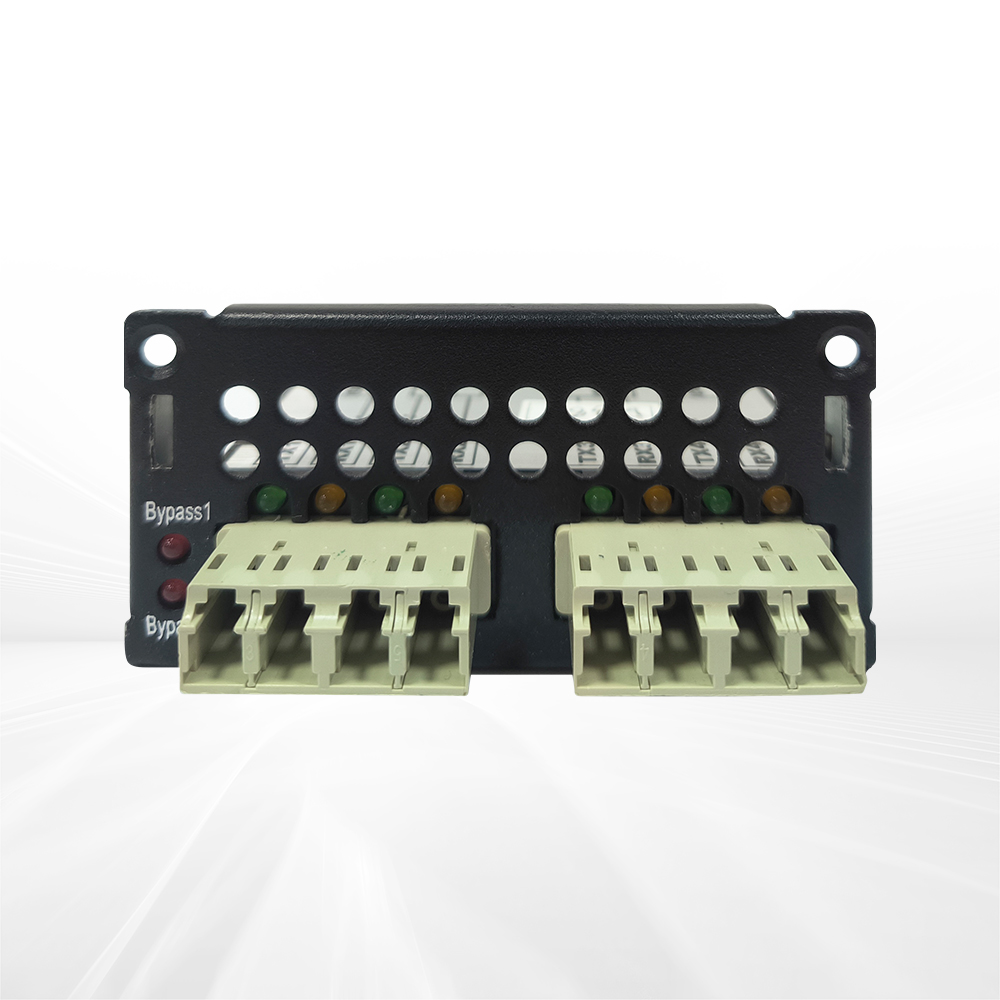

ENS-2423S(B)-MM | Chipset | Intel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 4 | |
LAN Port Speed | 1G | |
LAN Port Type | LC Multimode | |
bypass | groups | |
Product Dimensions | 182.8mm x 78.6mm | |

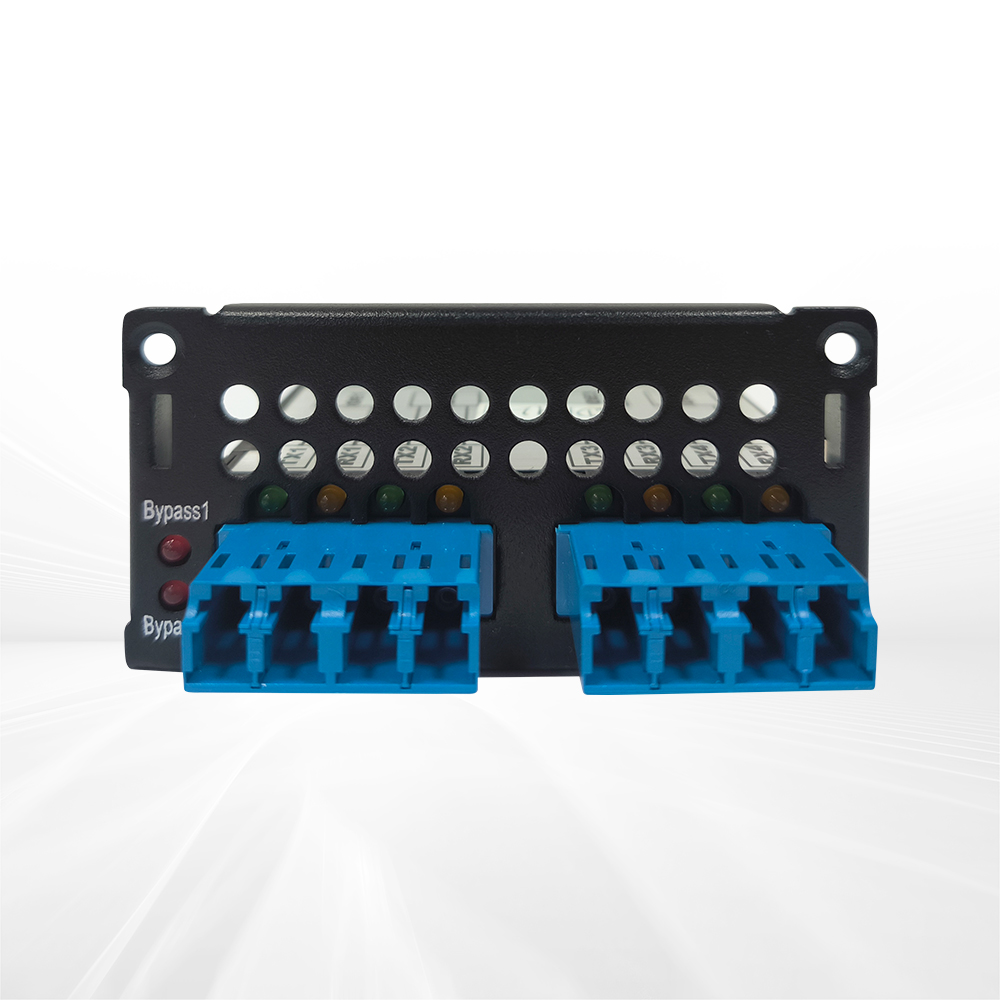

ENS-2423S(B)-SM | Chipset | Intel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 4 | |
LAN Port Speed | 1G | |
LAN Port Type | LC Single-mode | |
bypass | 2 groups | |
Product Dimensions | 182.8mm x 78.6mm | |

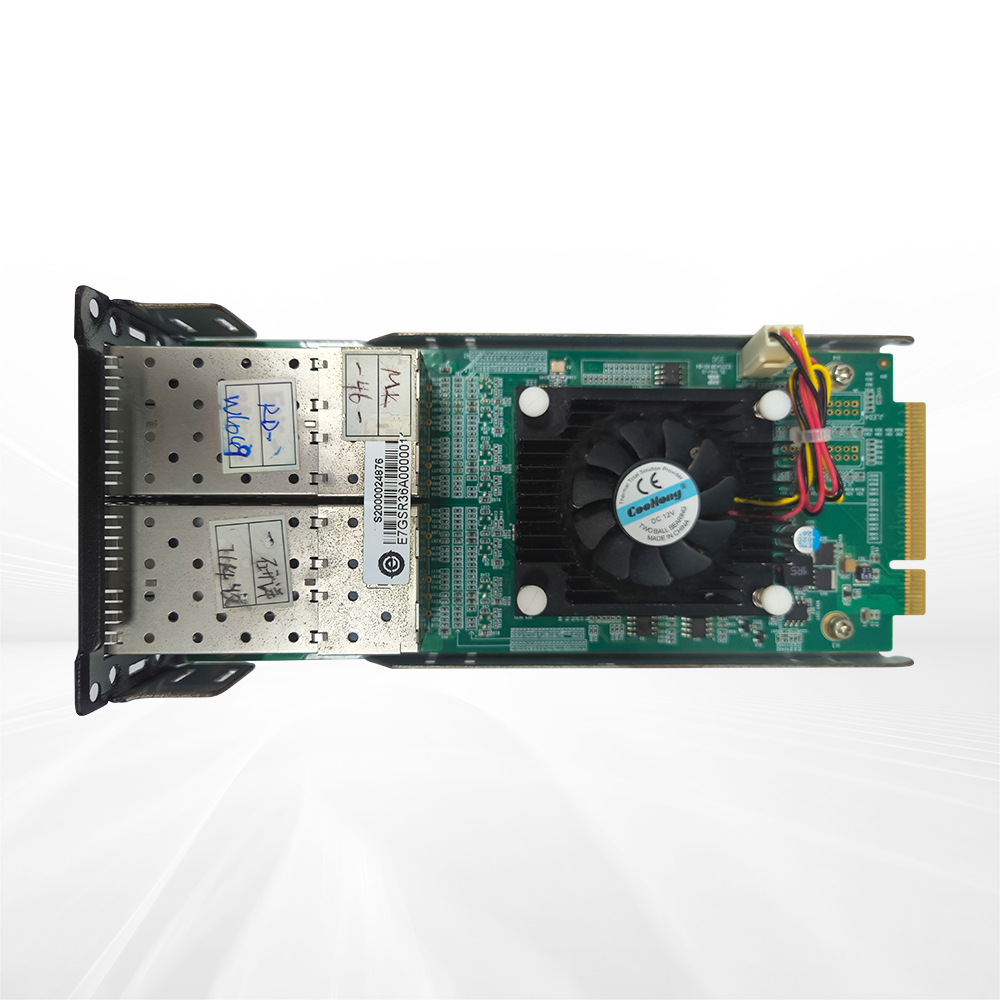

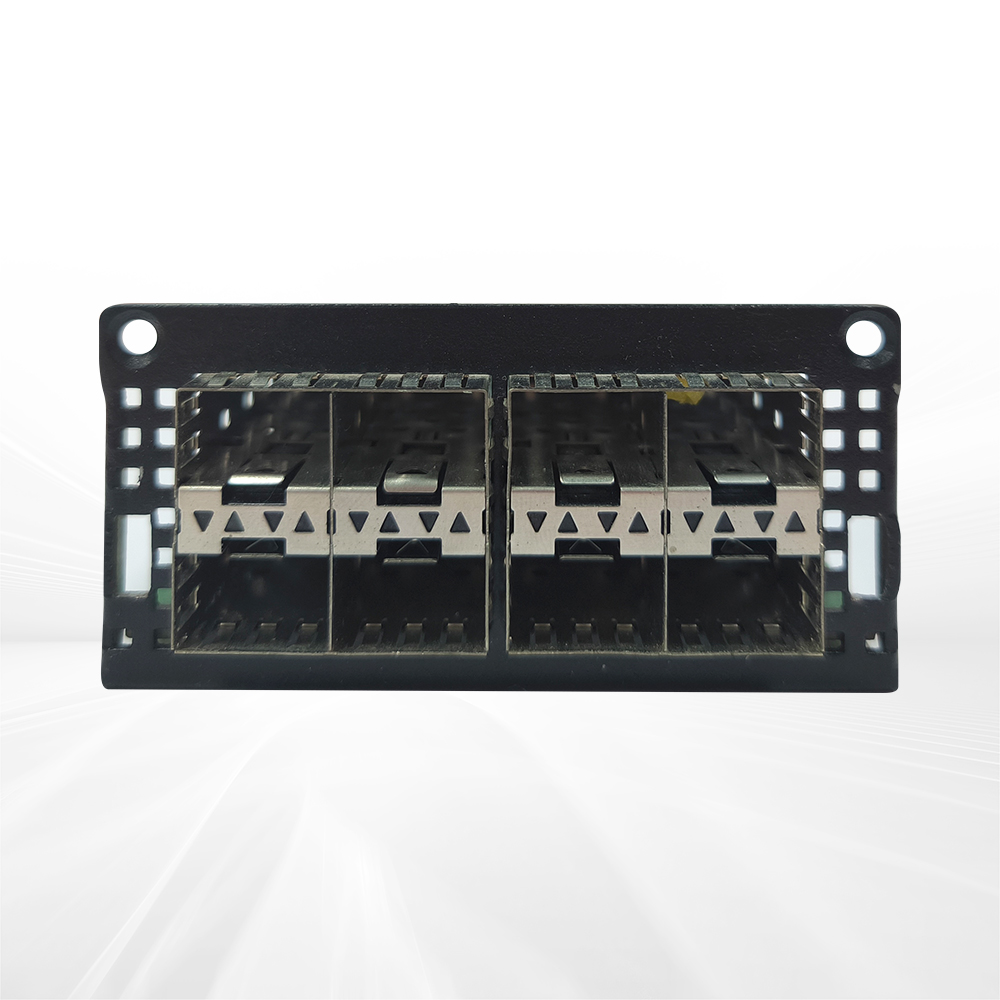

ENS-2803S | Chipset | 2xIntel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 8 | |
LAN Port Speed | 1G | |
LAN Port Type | SFP | |
bypass | NA | |
Product Dimensions | 182.8mm x 78.6mm | |
ENS-4803S | Chipset | 2xIntel I350AM4 |
Bus | 2 x PCIE X4 | |
LAN Port | 8 | |
LAN Port Speed | 1G | |
LAN Port Type | SFP | |
bypass | NA | |
Product Dimensions | 182.8mm x 78.6mm | |

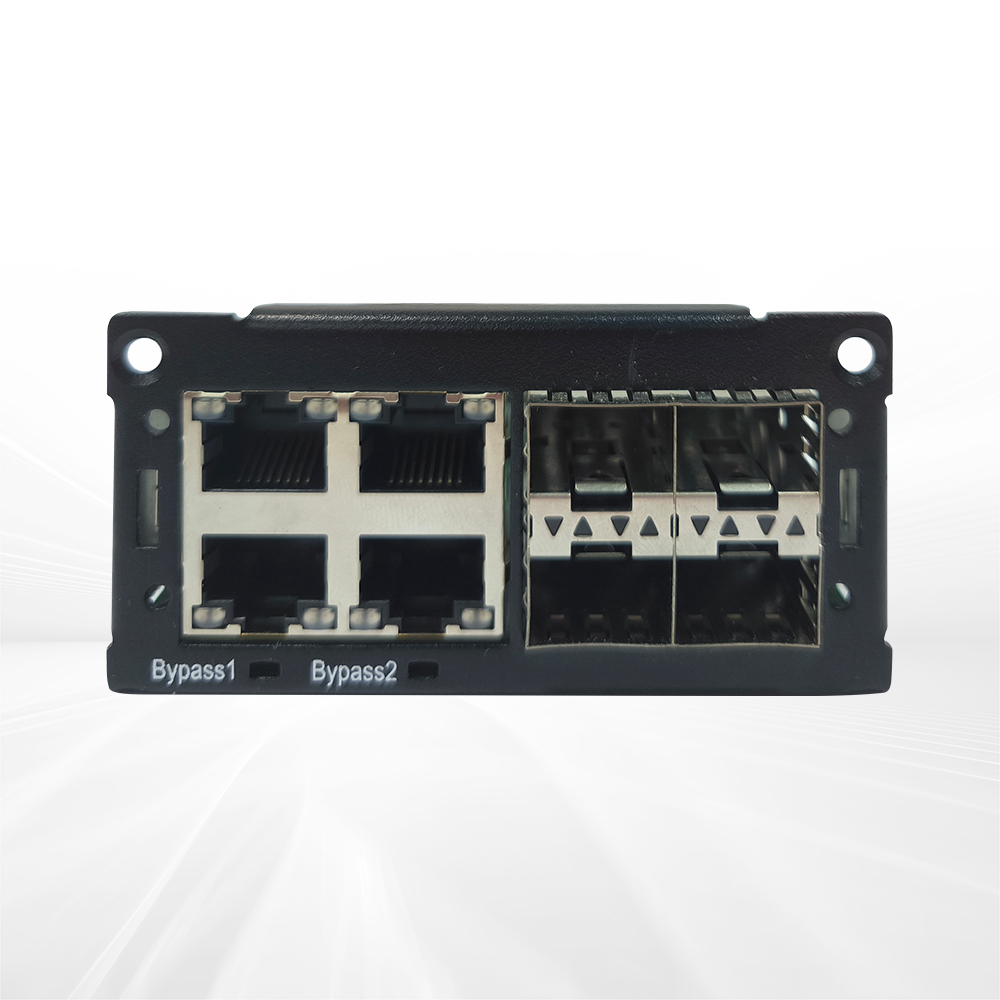

ENS-2823ES | Chipset | 2xIntel I350AM4 |
Bus | 1 x PCIE X4 | |
LAN Port | 8 | |
LAN Port Speed | 1G | |
LAN Port Type | 4xRJ45+4xSFP | |
bypass | 2 groups available, option to select 0 group | |
Product Dimensions | 182.8mm x 78.6mm | |
ENS-4823ES | Chipset | 2xIntel I350AM4 |
Bus | 2 x PCIE X4 | |
LAN Port | 8 | |
LAN Port Speed | 1G | |
LAN Port Type | 4xRJ45+4xSFP | |
bypass | 2 groups available, option to select 0 group | |
Product Dimensions | 182.8mm x 78.6mm |
