Special Controller for AFC system

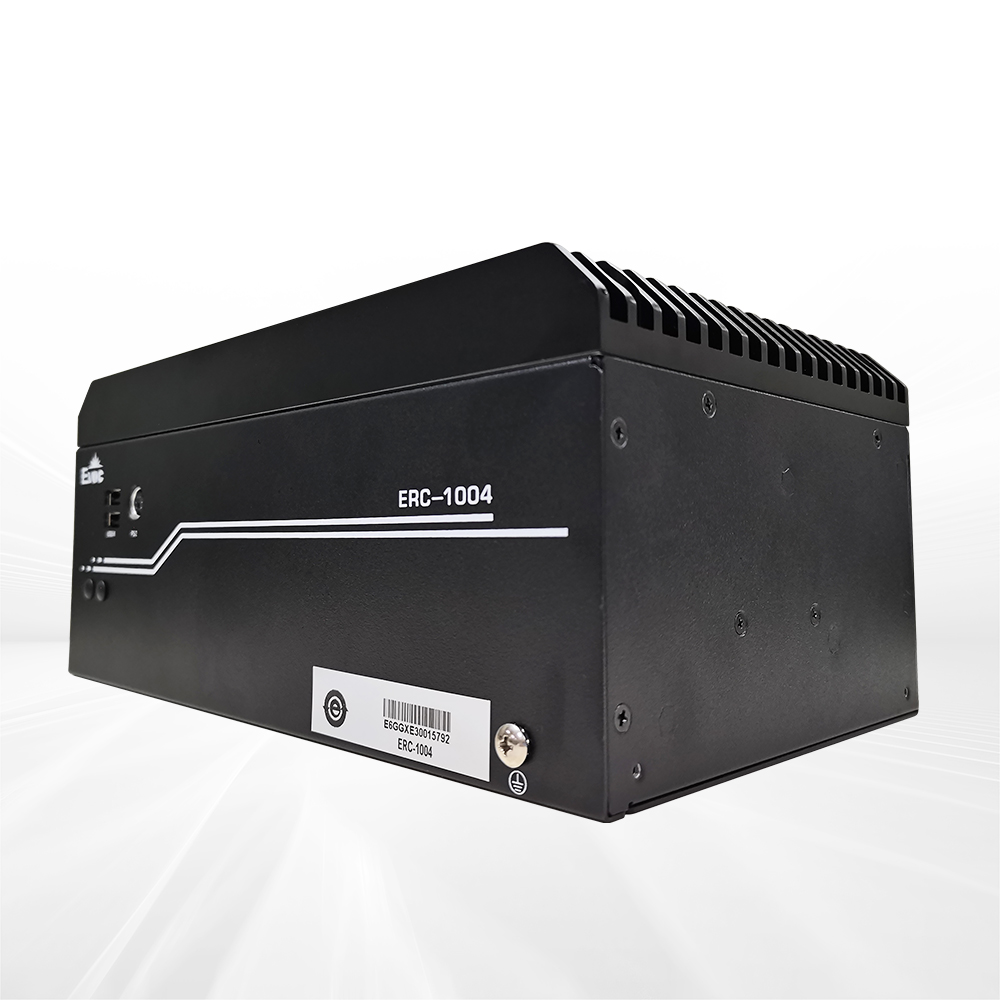

ERC-1004D is a multi-serial port multi-display fanless embedded complete PC, which is specially designed for the application of terminal equipment main control unit of the metro AFC system. A domestic Phytium E2000Q quad-core processor is adopted, with a compact structure, reasonable internal layout and rich I/O and expansion ports. It can be widely used in terminal equipment main control units of automatic gate machines (AGM), ticket vending machines (TVM) and booking office machines (BOM) of the metro AFC system.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | Domestic FT E2000Q 2.0G/4C processor |
| Memory | Onboard 4GB/8GB/16G DDR4 memory | |

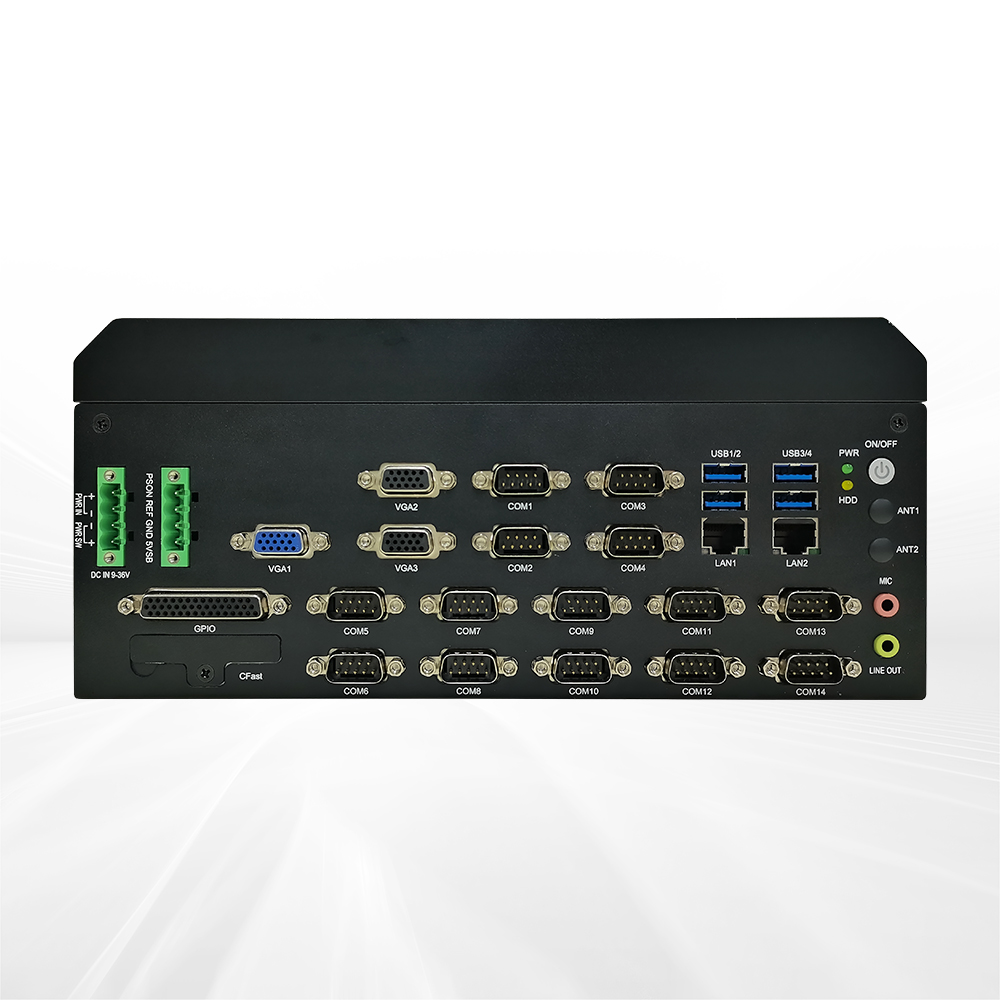

| I/O port | LAN port | Standard configuration of 2 × RJ45 port, supporting up to 3 × RJ45 + 1 × M12 LAN port 10M/100M/1000M self-adaption, LAN1 supports LAN wake-up |
| Display | Onboard 2 x VGA 1 x display module by optional(1 x LVDS or 1 x VGA optional), can support triple display duplication |
|
| USB | 2 × USB3.0 and 6 × USB2.0 | |

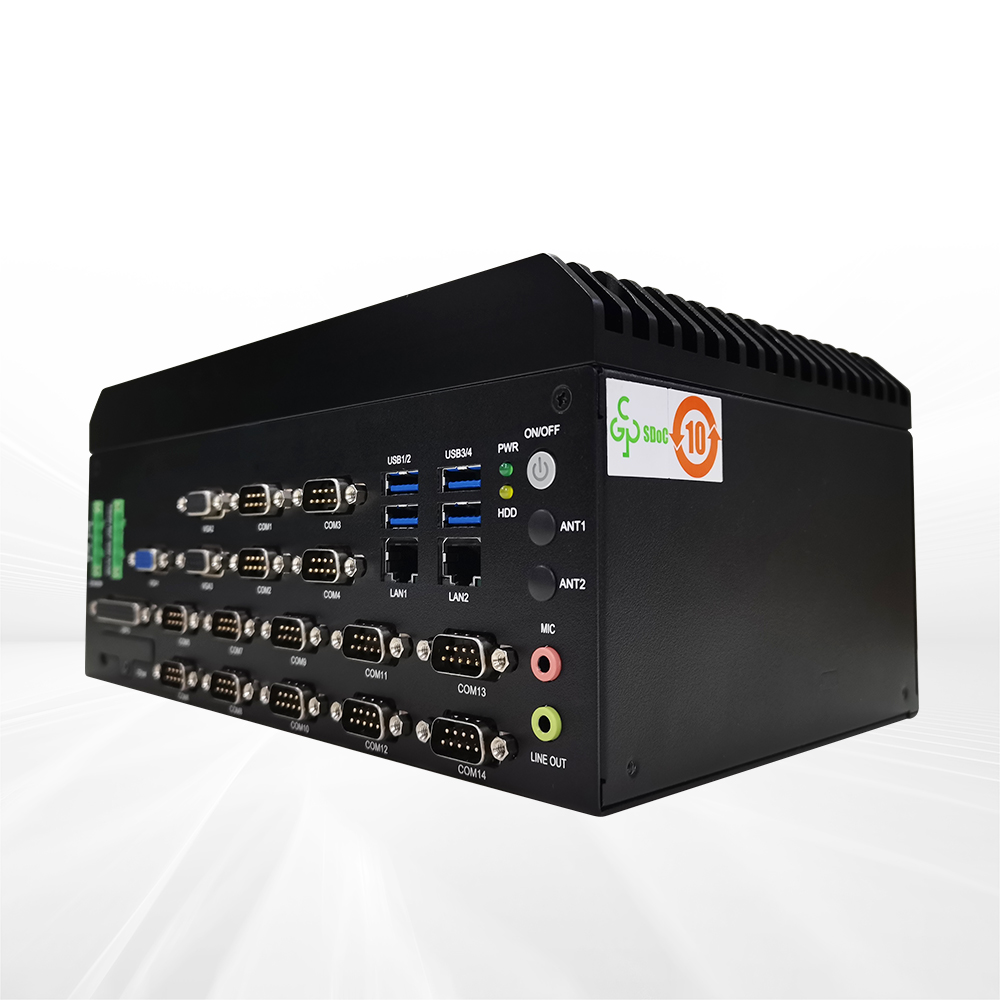

| COM | 14 × serial port, including 2 × RS232/422/485 port and 12 × RS232 serial port | |
| GPIO | 48-channel GPIO port (optional) | |

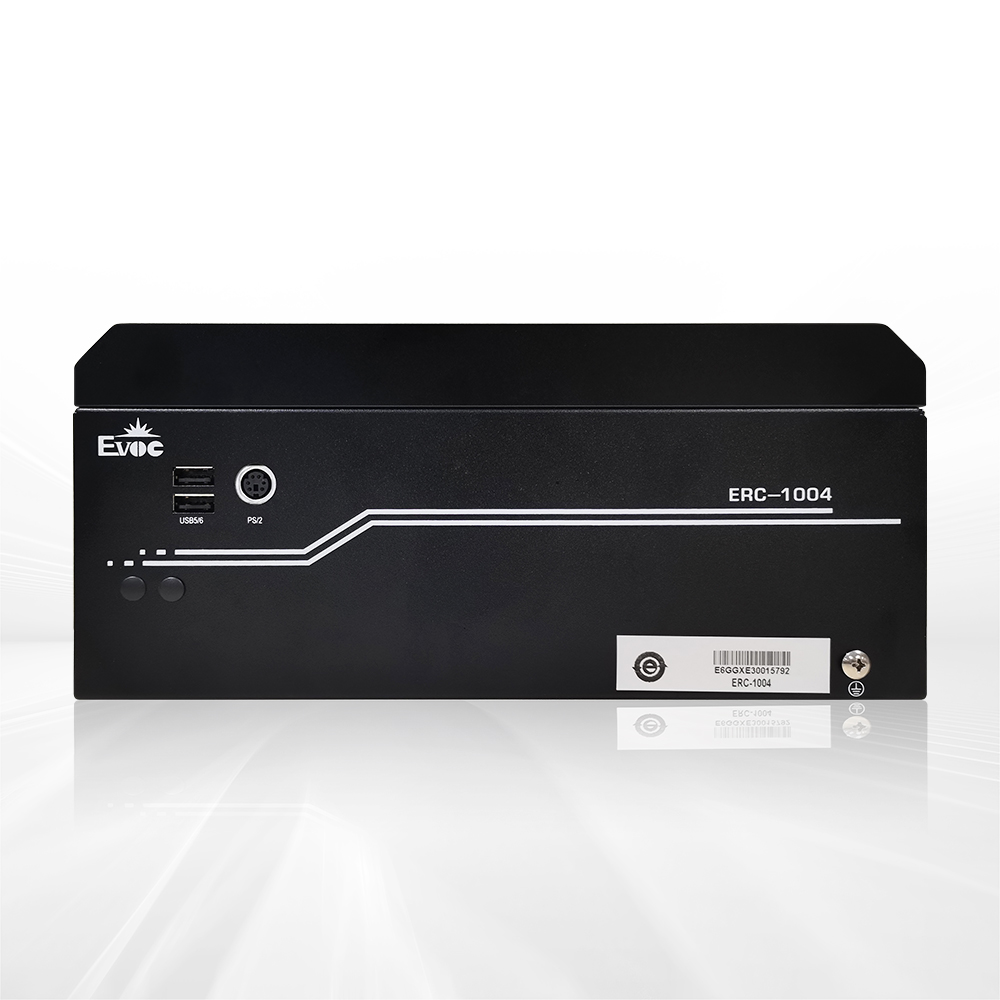

| PS/2 | 1 × PS/2 | |
| Audio | 1 group of audio ports, supporting MIC-IN and LINE-OUT | |
| Switches and Indicator Lights | 1 × power switch button, 1 × power status indicator and 1 × hard disk status indicator | |
| Antenna | 5 × antenna holes | |
| Expansion Bus | Motherboard Integration | 1 × Mini-PCIe expansion slot; 1 × M.2 Key-B port; 1 × SIM card slot |
| Storage | Hard Disk | 1 × 2.5-inch SSD bay |
| M-SATA/Cfast | 1 × M.2 Key-M, EMMC 32GB storage (optional) | |
| Working Environment | Operating temperature | -20℃～+70℃ |
| Storage Environment | Storage Temperature | -40℃～+80℃ |
| Storage Humidity | Temperature 40°C, relative humidity 95% (non-condensing) | |
| Installation Method | Wall-mounted, desktop | |
| Product Dimensions | 260mm (width) * 91.7mm (height) * 165mm (depth)(Excluding Tripod) | |
| Power supply | Wide voltage DC9~36V input, supporting power wake-up function | |
| Operating system | Galaxy Kirin, openEuler | |
