2U 19" Rackmount Network Application Platform

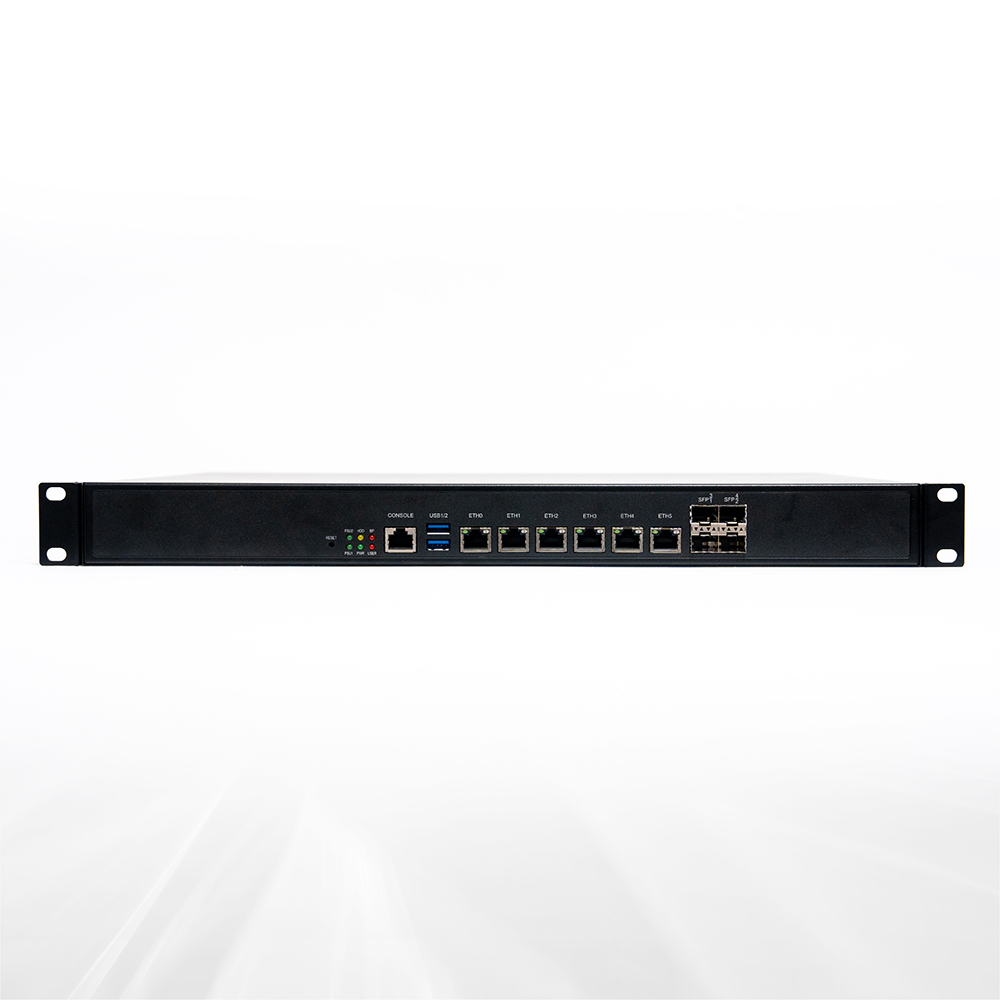

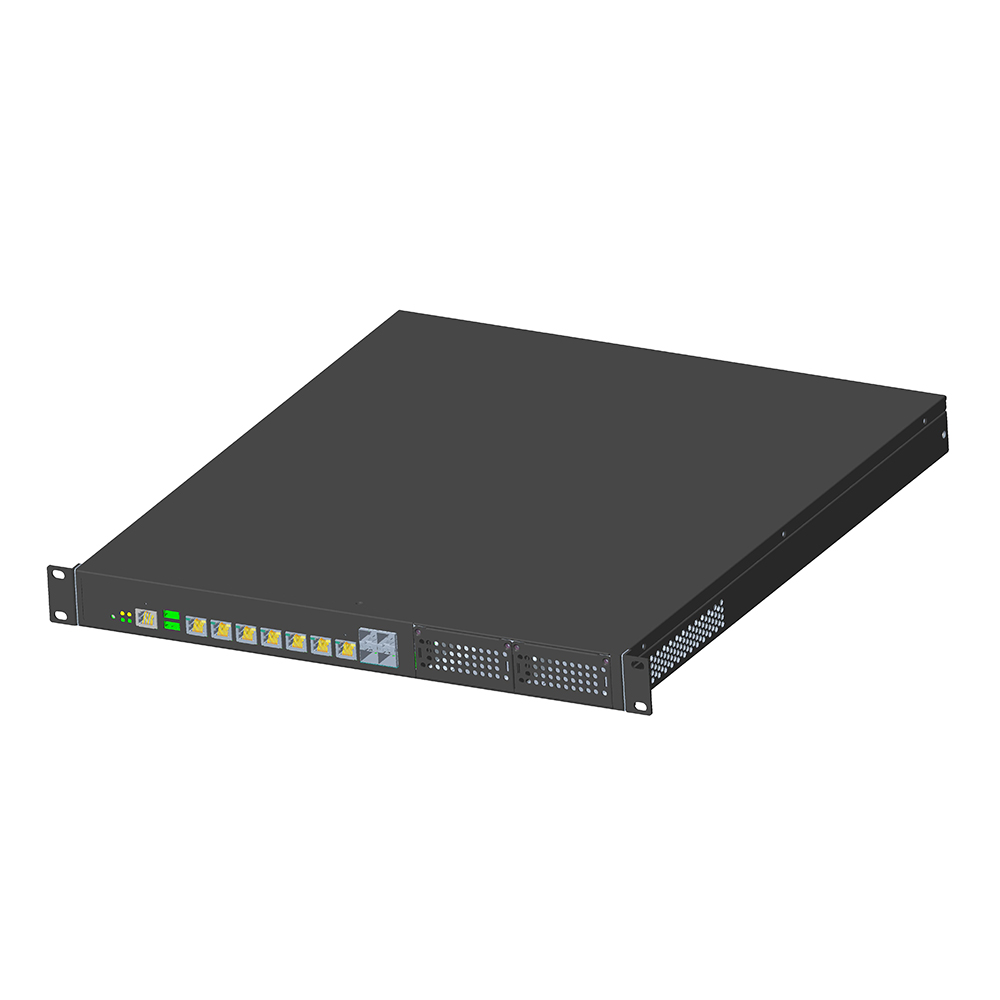

NPC-5118-FT is a standard 1U rack mount network security application product developed based on a Phytium D2000 processor, supporting domestic Linux systems such as Kylin. The product is mainly used in communication, enterprise, finance, education, medical treatment and other fields. NPC-5118-FT can replace the application scenarios of most non-domestic H110, C236 and other platforms and is positioned as a domestic middle-end platform to help enterprises with domestic replacement and upgrading and consolidate enterprise information and asset security. It can be widely used in the new-generation high-end application delivery and can be widely applied to information security protection such as firewalls, behavior management and audit, VPN, vulnerability scanning, and gatekeepers.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | Phytium D2000/8C, with a dominant frequency of 2.3GHz |
| Memory | X100 | |
| Dual-channel, 2*DDR4 memory slot, supporting up to 32GB | ||
| Storage | SATA | Supports 2 x SATA3.0 port, and standard configuration of 1 x hard disk bay (1 x SATA3.0 port free) |
| MSATA/M.2 | 1 x MSATA slot (resource multiplexing with SATA1), 1 x M.2 KEY-M | |
| I/O Port | USB | 2 x USB3.0 port (front), 2 x USB3.0 pin (built-in) |
| COM | 1 × Console port, 2 × serial Wafer socket (built-in, RS-232 mode) | |
| GPIO | Supports 8-channel digital GPIO interface | |
| Display Port | 1 x VGA port at rear | |
| Network port | Network card chip | Intel® i210 + Muchuang N400L |
| LAN Port Type | Onboard 7 x Gigabit LAN port + 4 x Gigabit optical port, of which 1 x electrical port is a special management port | |
| Expansion Bus | PCIE | Onboard 2 × standard PCI_E X8 slot and 1 × Mini_PCIe slot (built-in, X1 signal) |
| ENS | 2 x ENS network card expansion slot | |
| Matched Motherboard | NET-1601A11N1B Series | |
| Working Environment | Working temperature: 0°C -40°C Working humidity: 10%～ 90%(non-condensing state) |
|
| Storage Environment | Storage temperature: -20°C ~ 70°C; storage humidity: 10% ~ 90% (non-condensing state) |
|
| Overall Dimensions | 440mm（W）×43.8mm（H）×500mm（D） | |
| Power Supply | 250W ATX redundant power supply (optional) | |
| Operating Systems | Kylin X86, Unity and other Phytium systems. Please refer to the product manual for details | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| NPC-5118-FT-Product Manual | Various Platform | Vol15.0 | 2025-04-29 | 0.15MB | Download 𐃯 |
