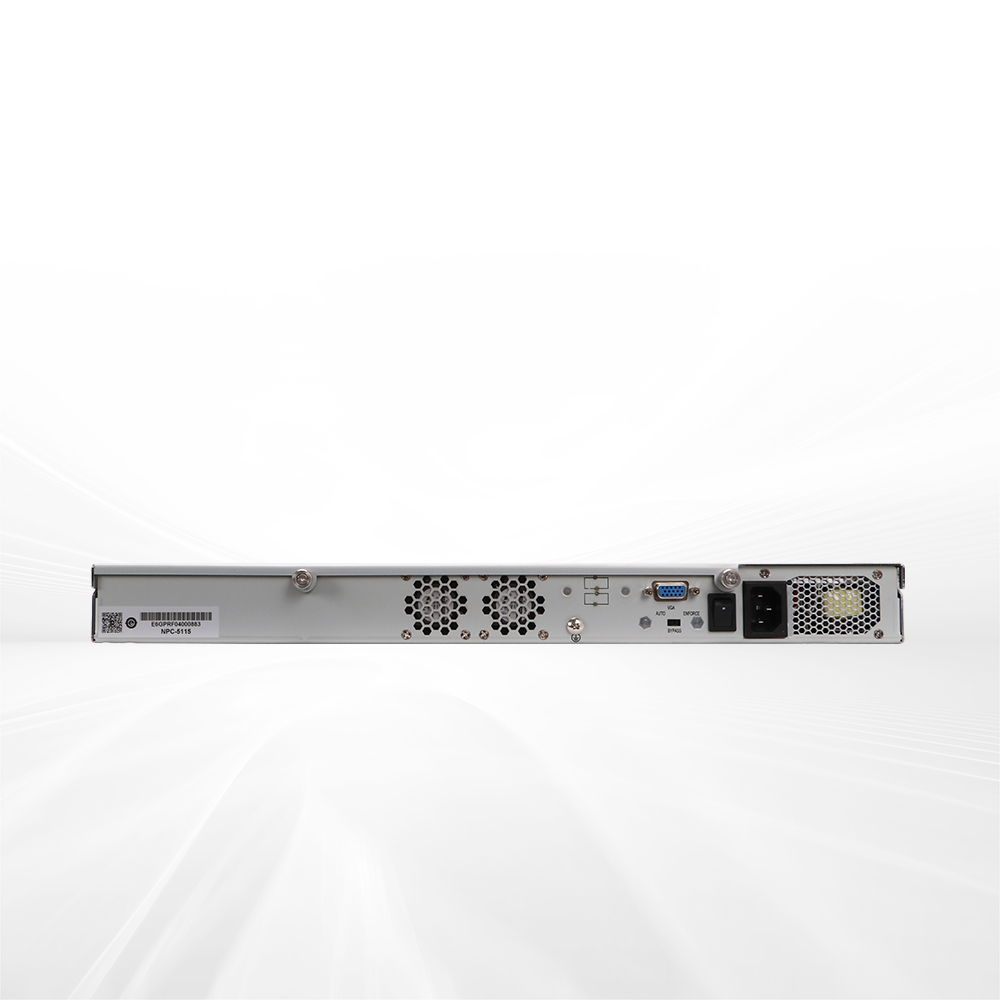

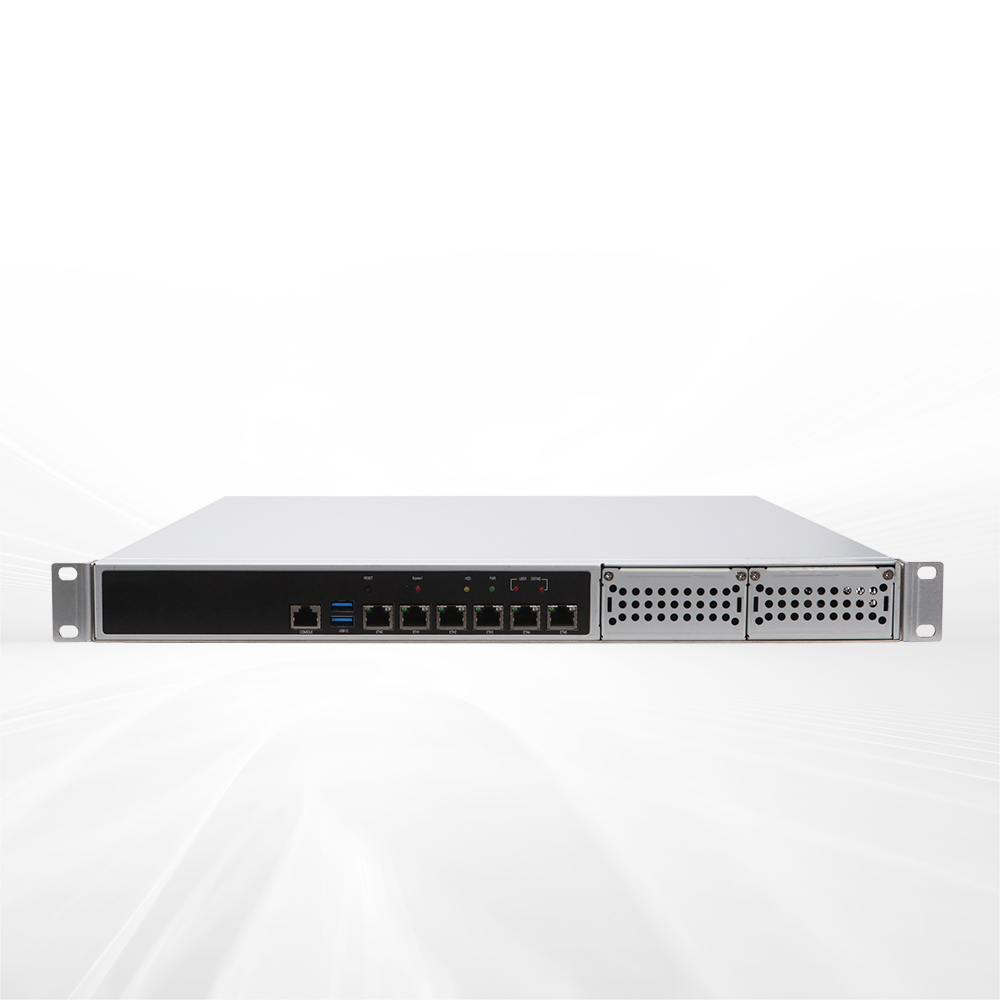

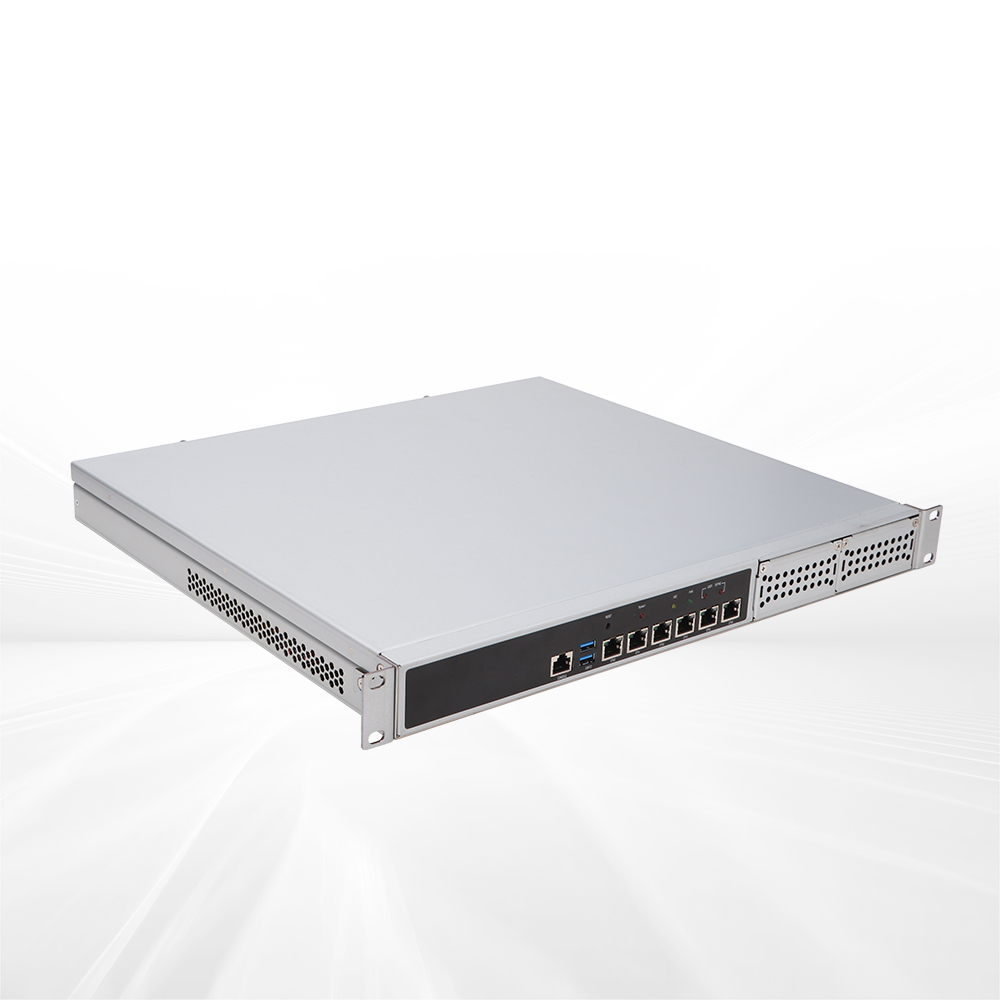

1U 19" Rackmount Network Application Platform
NPC-5115-ZX is a network security application product developed based on autonomous controllable ZX-C+ and ZX-C series quad-core processors. The motherboard is fully compatible with X86 architecture and adapts to the traditional Linux operating system. The complete PC can be configured with DDR3 32GB memory, onboard 6 × Gigabit electrical port, and 2 × optional ENS expansion slot. NPC-5115-ZX is mainly used in mainstream firewalls, antivirus walls, VPN, gatekeepers and network acceleration.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | C-Quadcore C4710 quad-core processor, with a dominant frequency of 2.0GHz C-Quadcore C4600 quad-core processor, with a dominant frequency of 2.0GHz |
| Chipset | ZX-100S | |
| Memory | Supports 2 x DDR3 memory slot and Un-buffered ECC, and the total capacity of the complete PC can reach 32GB | |
| Storage | SATA | 2 × SATA 3.0 interface, and standard configuration of 1 × hard disk bay (1 × free SATA3.0 interface) |
| I/O Port | USB | 2 × USB3.0 port (at front); 2 × built-in USB2.0 pin and 2 × USB3.0 pin |
| COM | 1 x RJ45 Console port, 1 x built-in Wafer pin | |
| GPIO | Supports 8-channel digital GPIO interface | |
| Display Port | 1 x VGA port | |
| Network port | Network card chip | Intel® i211/I210 |
| LAN Port Type | 6 x Gigabit electrical port | |
| Expansion Bus | PCIE | Onboard 1 × standard PCI_E2.0 8X (X8 signal, multiplexed with ENS slot resources, one out of two) |
| ENS | 1 × ENS expansion slot (two optional expansions, EB-X8N-200B Part No.: 1090-012451) | |
| Matched Motherboard | NET-1512VD6N series | |
| Working Environment | Working temperature: 0°C -40°C humidity: 10% ~ 90% (non-condensing state) |
|
| Storage Environment | Storage temperature: -20°C ~ 70°C storage humidity: 10% ~ 90% (non-condensing state) |
|
| Overall Dimensions | 440mm（W）*88mm(H)*550mm(D) | |
| Power Supply | 250W/180W ATX (300W is optional, and the chassis needs to be lengthened) | |
| Operating Systems | Linux (CentOS, Red Hat, Ubuntu), Kylin operating system. Please refer to the product manual for details | |
| System Configuration | Processor | C-Quadcore C4710 quad-core processor, with a dominant frequency of 2.0GHz C-Quadcore C4600 quad-core processor, with a dominant frequency of 2.0GHz |
| Chipset | ZX-100S | |
| Memory | Supports 2 x DDR3 memory slot and Un-buffered ECC, and the total capacity of the complete PC can reach 32GB | |
| Storage | SATA | 2 × SATA 3.0 interface, and standard configuration of 1 × hard disk bay (1 × free SATA3.0 interface) |
| I/O Port | USB | 2 × USB3.0 port (at front); 2 × built-in USB2.0 pin and 2 × USB3.0 pin |
| COM | 1 x RJ45 Console port, 1 x built-in Wafer pin | |
| GPIO | Supports 8-channel digital GPIO interface | |
| Display Port | 1 x VGA port | |
| Network port | Network card chip | Intel® i211/I210 |
| LAN Port Type | 6 x Gigabit electrical port | |
| Expansion Bus | PCIE | Onboard 1 × standard PCI_E2.0 8X (X8 signal, multiplexed with ENS slot resources, one out of two) |
| ENS | 1 × ENS expansion slot (two optional expansions, EB-X8N-200B Part No.: 1090-012451) | |
| Matched Motherboard | NET-1512VD6N series | |
| Working Environment | Working temperature: 0°C -40°C humidity: 10% ~ 90% (non-condensing state) |
|
| Storage Environment | Storage temperature: -20°C ~ 70°C storage humidity: 10% ~ 90% (non-condensing state) |
|
| Overall Dimensions | 440mm（W）*88mm(H)*550mm(D) | |
| Power Supply | 250W/180W ATX (300W is optional, and the chassis needs to be lengthened) | |
| Operating Systems | Linux (CentOS, Red Hat, Ubuntu), Kylin operating system. Please refer to the product manual for details | |
