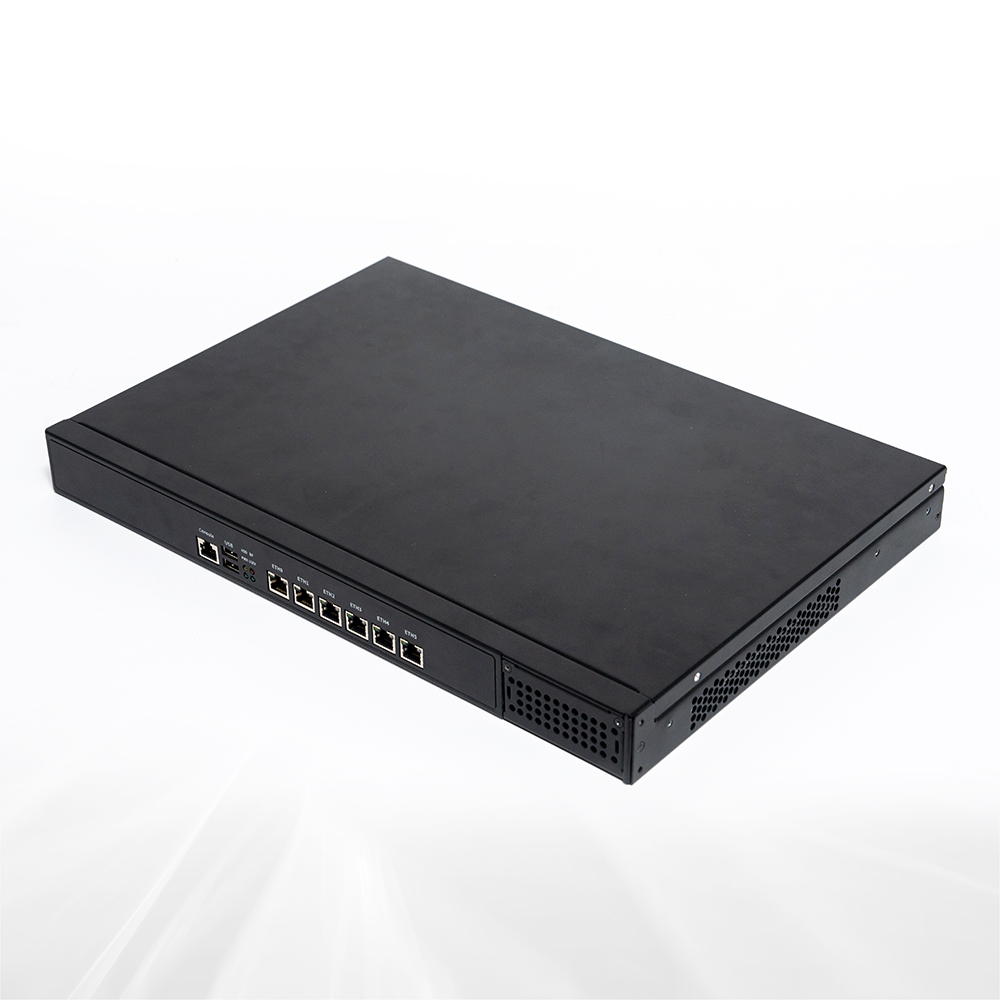

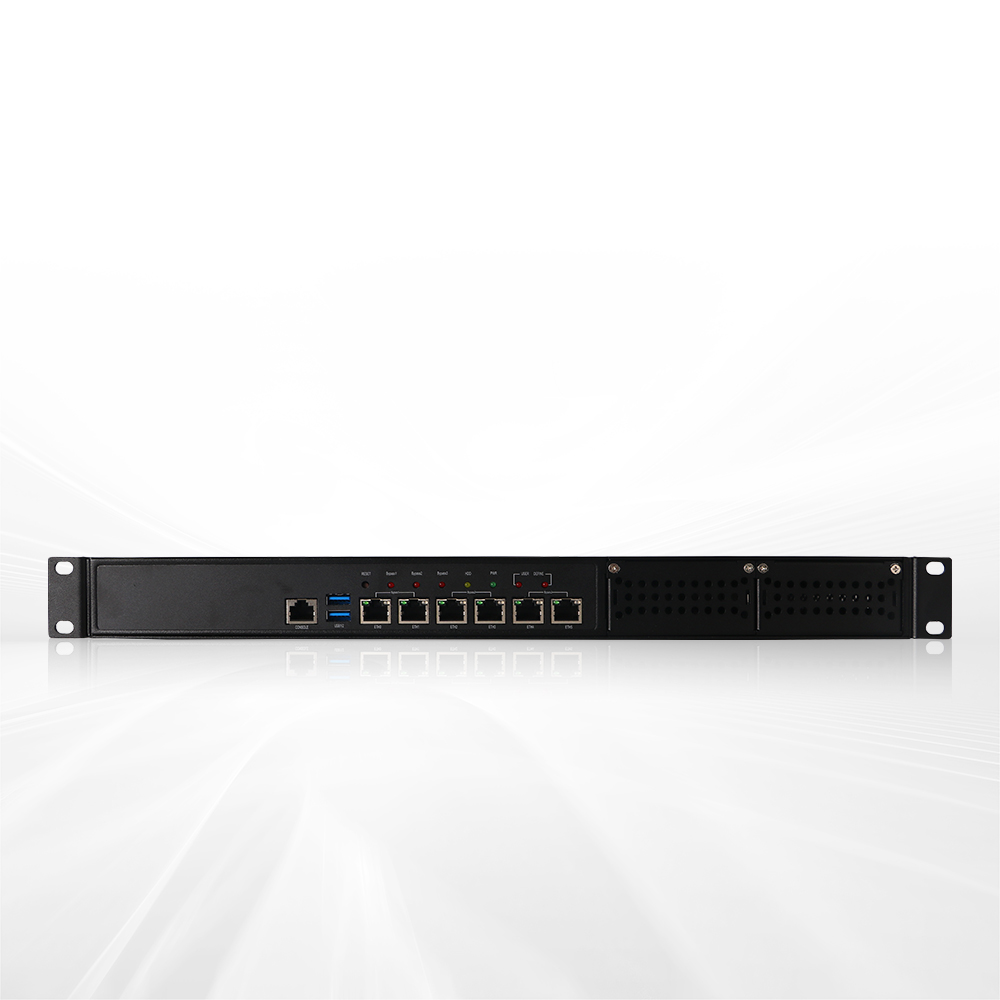

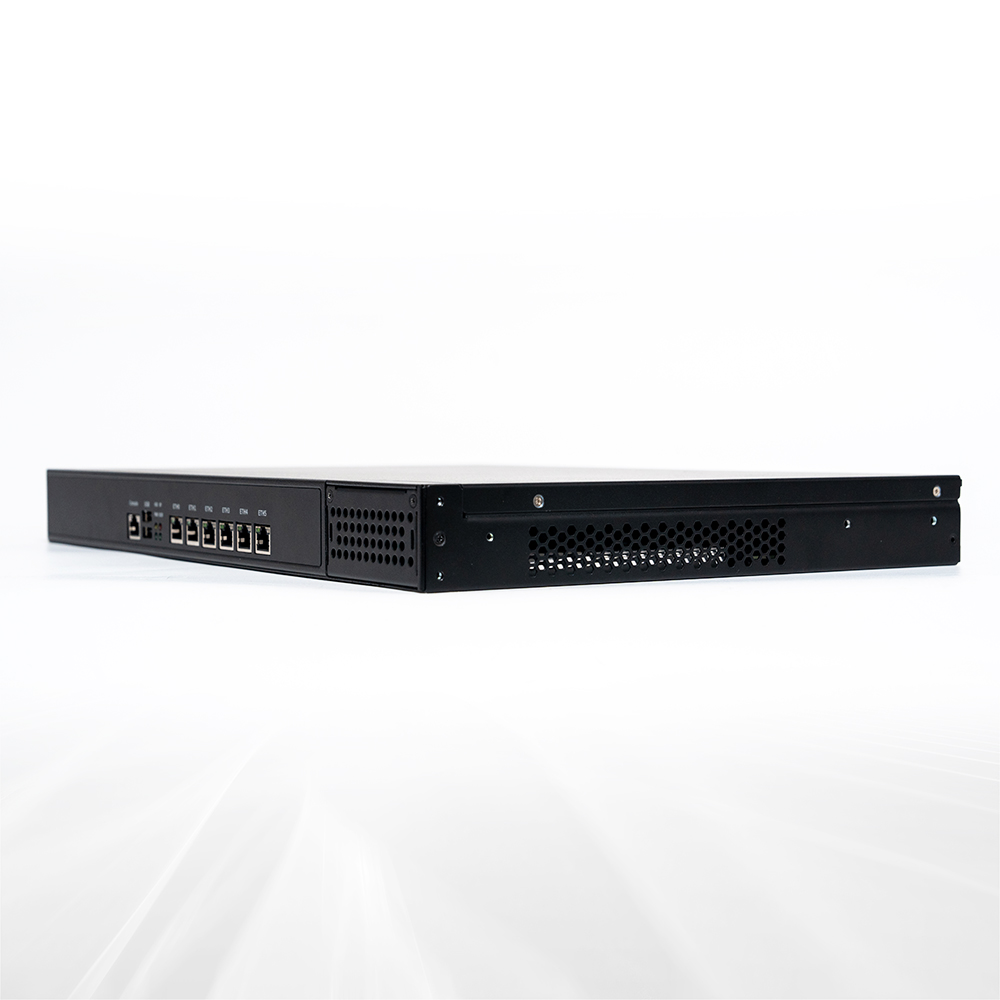

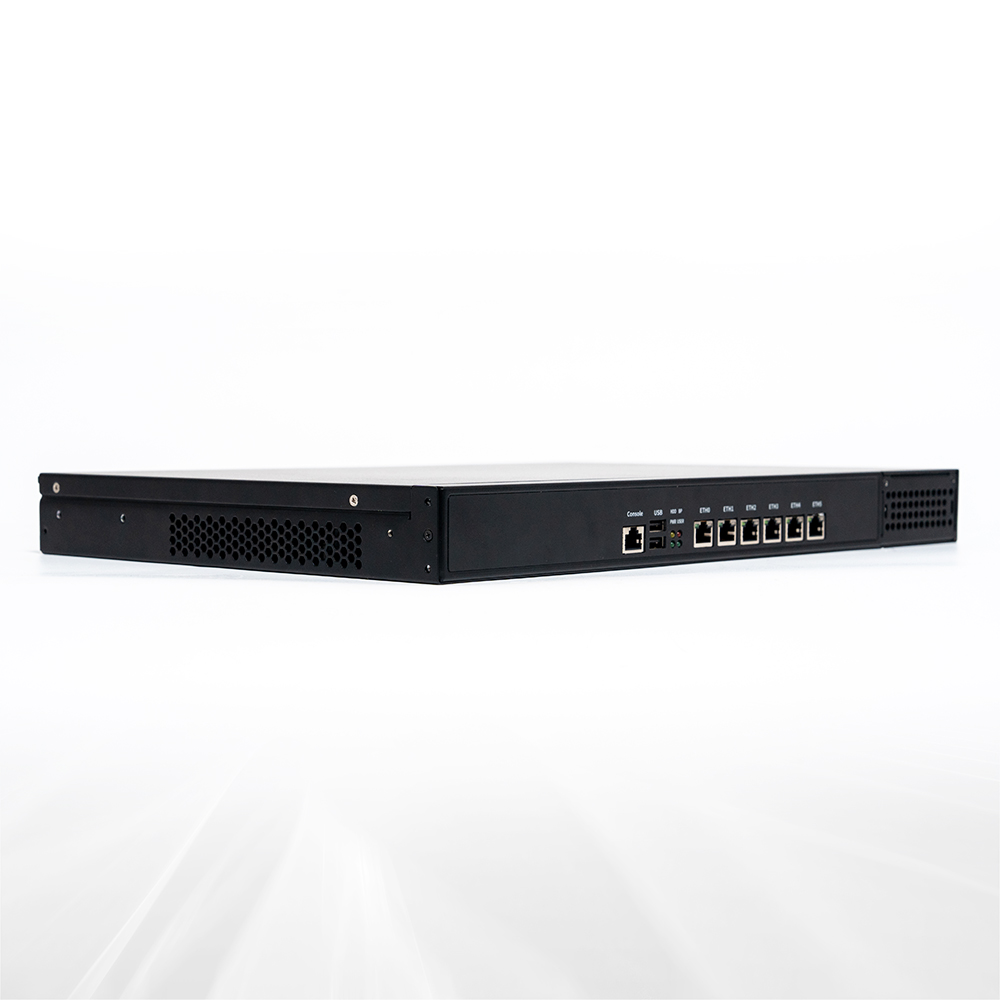

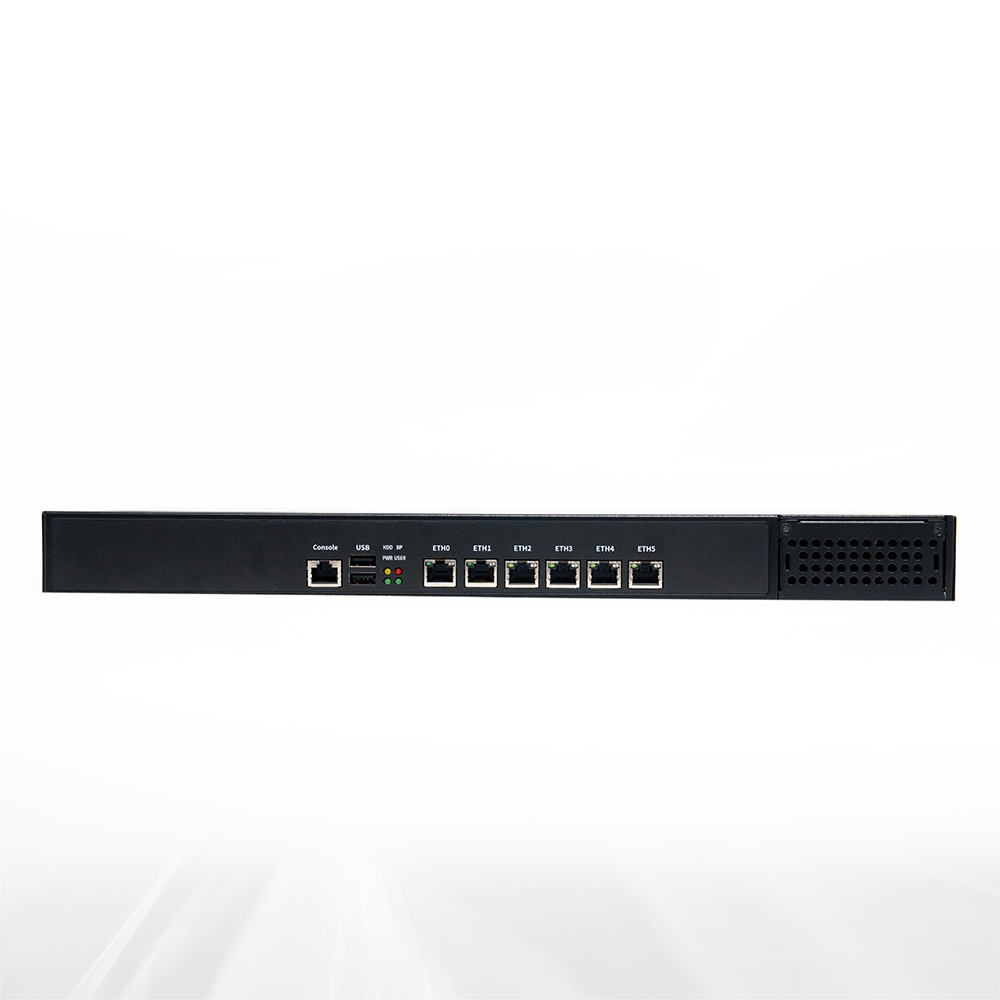

1U 19" Rackmount Network Application Platform
N15-02 is a standard 1U rack-mounted mainstream network application platform, which adopts an Intel® Celeron™ J1900 processor, 1 x SO-DIMM DDR3L memory slot, maximum memory support of 8GB, onboard 6 x electrical ports and 1 x expansion slot. N15-02 can be widely used in network security application fields such as entry-level firewalls, intrusion detection systems and Internet behavior management.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | Intel® Celeron™ J1900 |
| Chipset | Intel® Celeron | |
| Memory | 1 x DDR3L SO-DIMM memory slot, up to 8GB | |
| Storage Port | SATA | 1 x SATA port, and standard configuration of 1 x hard disk bay |
| MSATA | 1 x MSATA slot | |
| I/O Port | USB | 2 x USB 2.0 port (front) |
| COM | 1 x RJ45 Console port | |
| GPIO | Supports 8-channel digital GPIO | |
| Display Port | ||
| Network port | Network Chip | Intel® I210/I211 |
| LAN Port Type | Onboard 6 x Gigabit electrical port | |
| Expansion Bus | PCIE | 1 x standard PCIE X8 slot (X1 signal) |
| ENS | 1 x ENS network card expansion slot (optional), shared with PCIE slot (alternative) | |
| Matched Motherboard | NET-1837VD6N series | |
| Working Environment | Working temperature: 0°C -40°C Storage humidity: 10%-90% (non-condensing state) |
|
| Storage Environment | Storage temperature: -20°C-70°C; Storage humidity: 10%-90% (non-condensing state) |
|
| Overall Dimensions | 440mm(W)×43.6mm(H)×300mm(D) | |
| Power supply | Single power supply 60W | |
| Operating Systems | Linux OS (kernel version 2.6 and above). Please refer to the product manual of EVOC for details | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| N15-02-Product Manual | Various Platform | Vol15.0 | 2025-04-29 | 0.12MB | Download 𐃯 |
