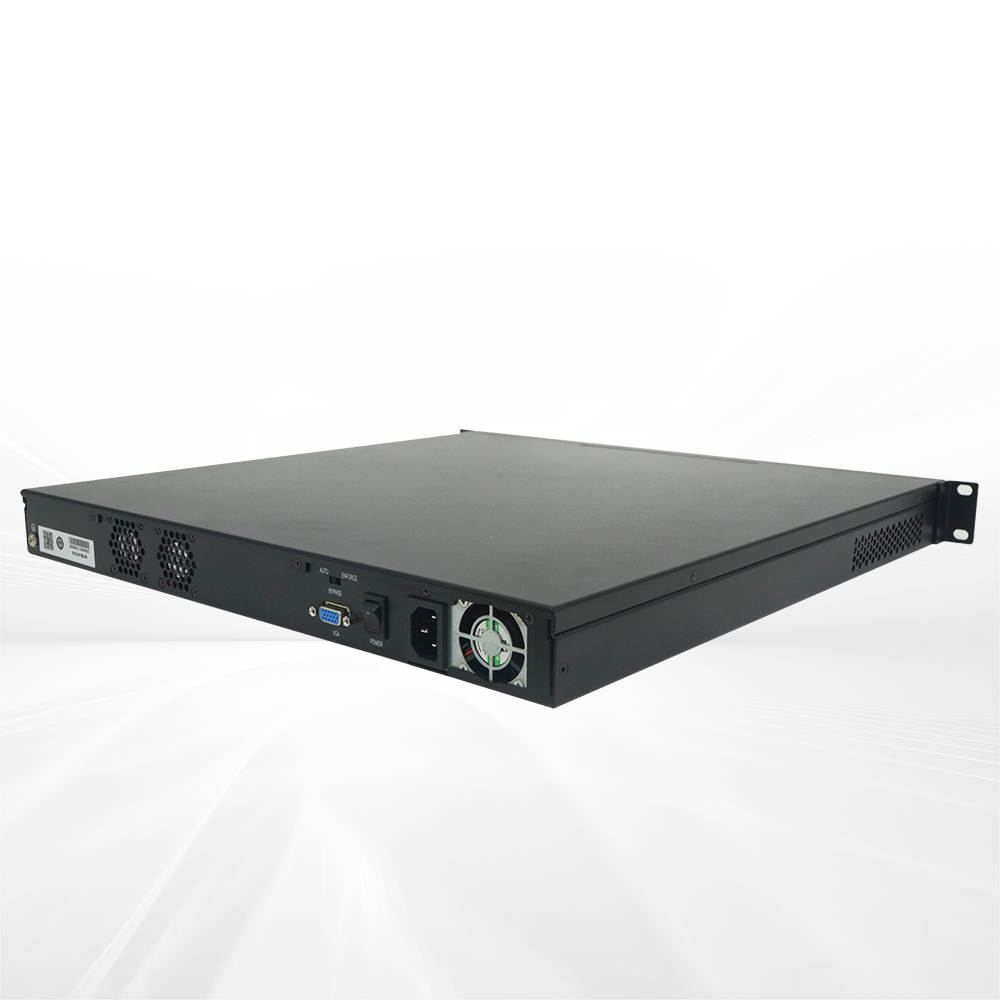

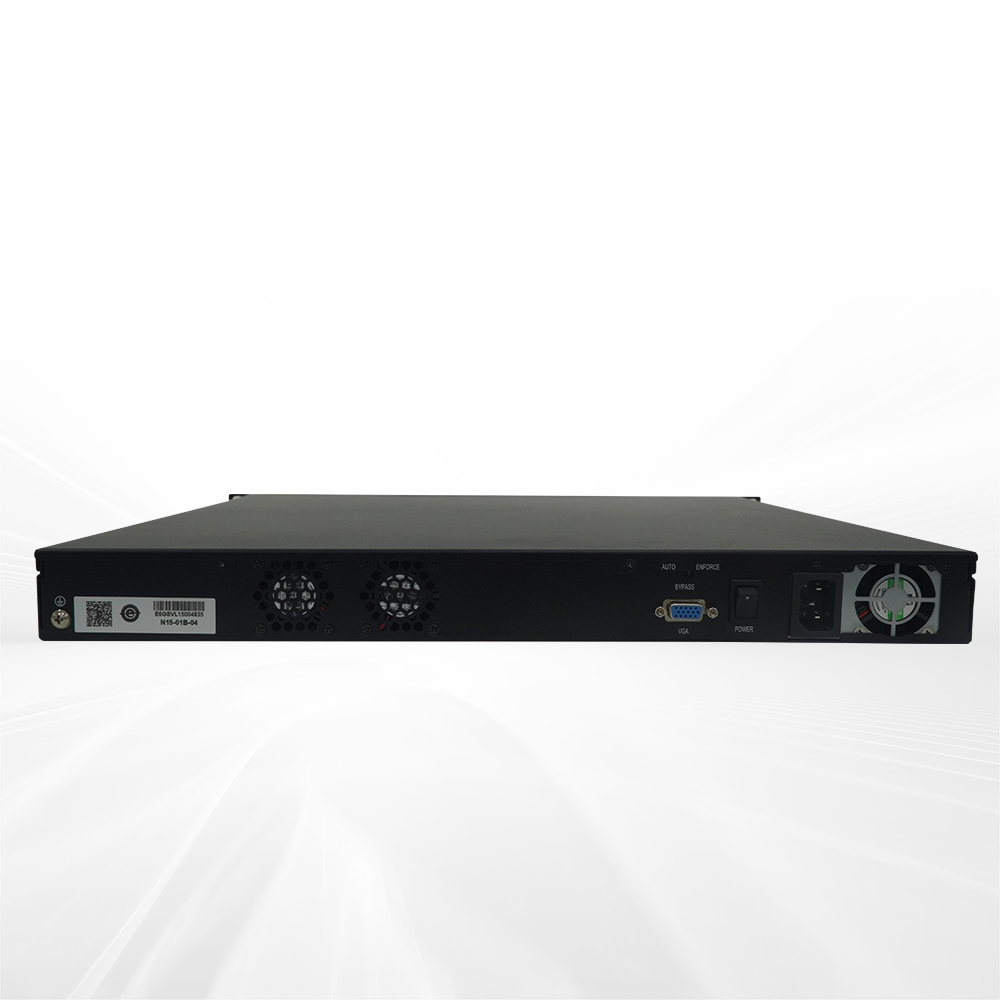

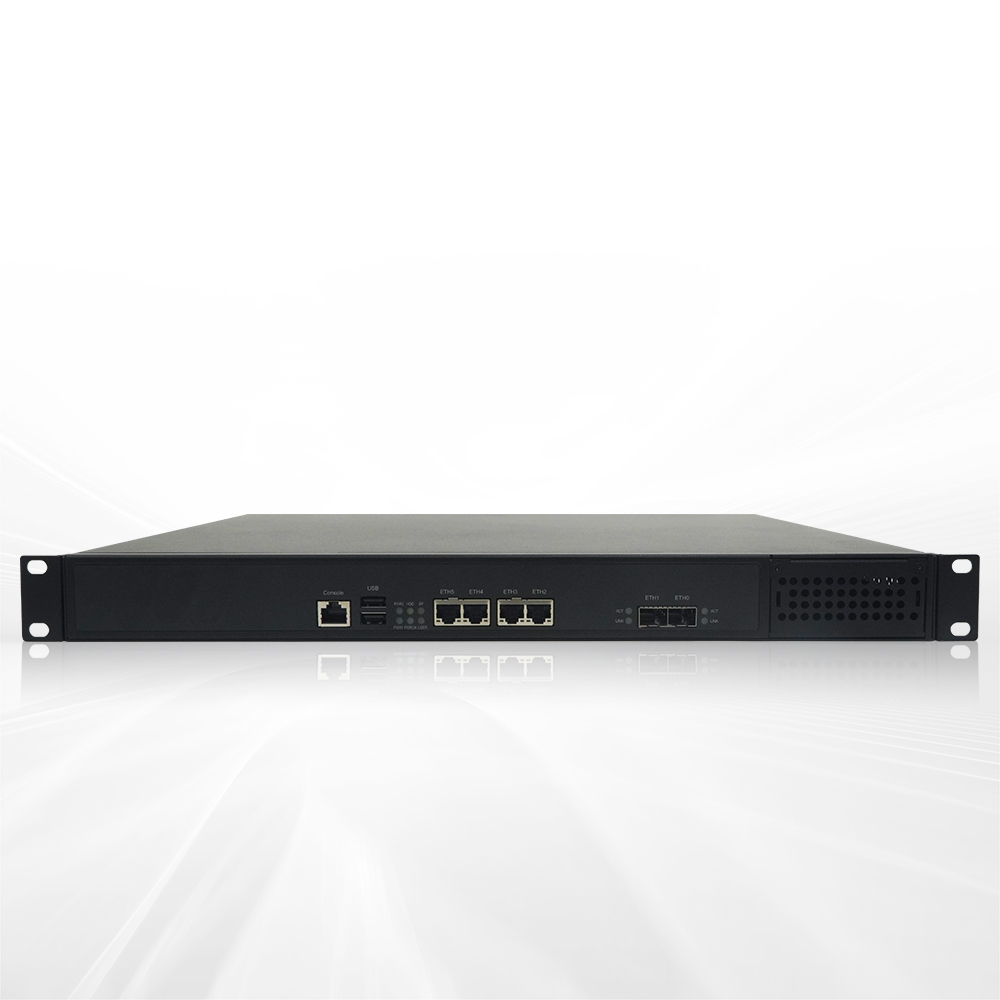

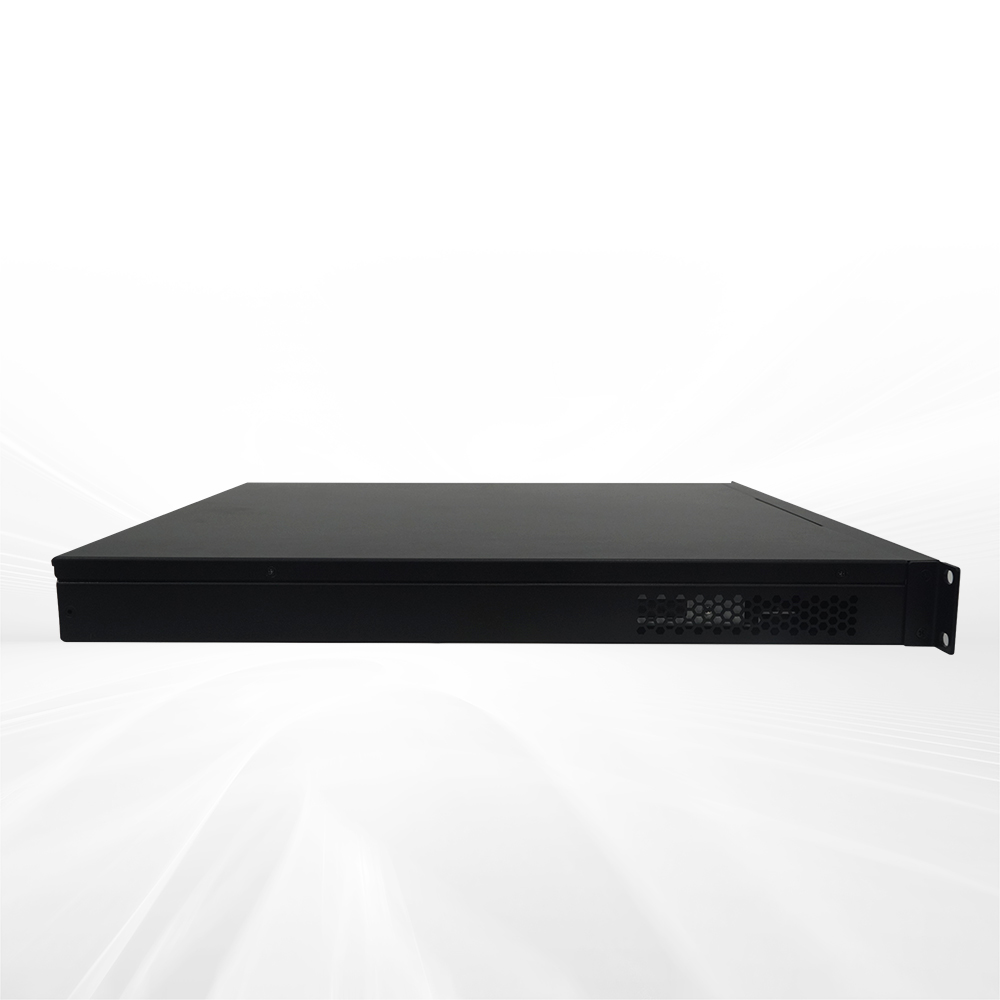

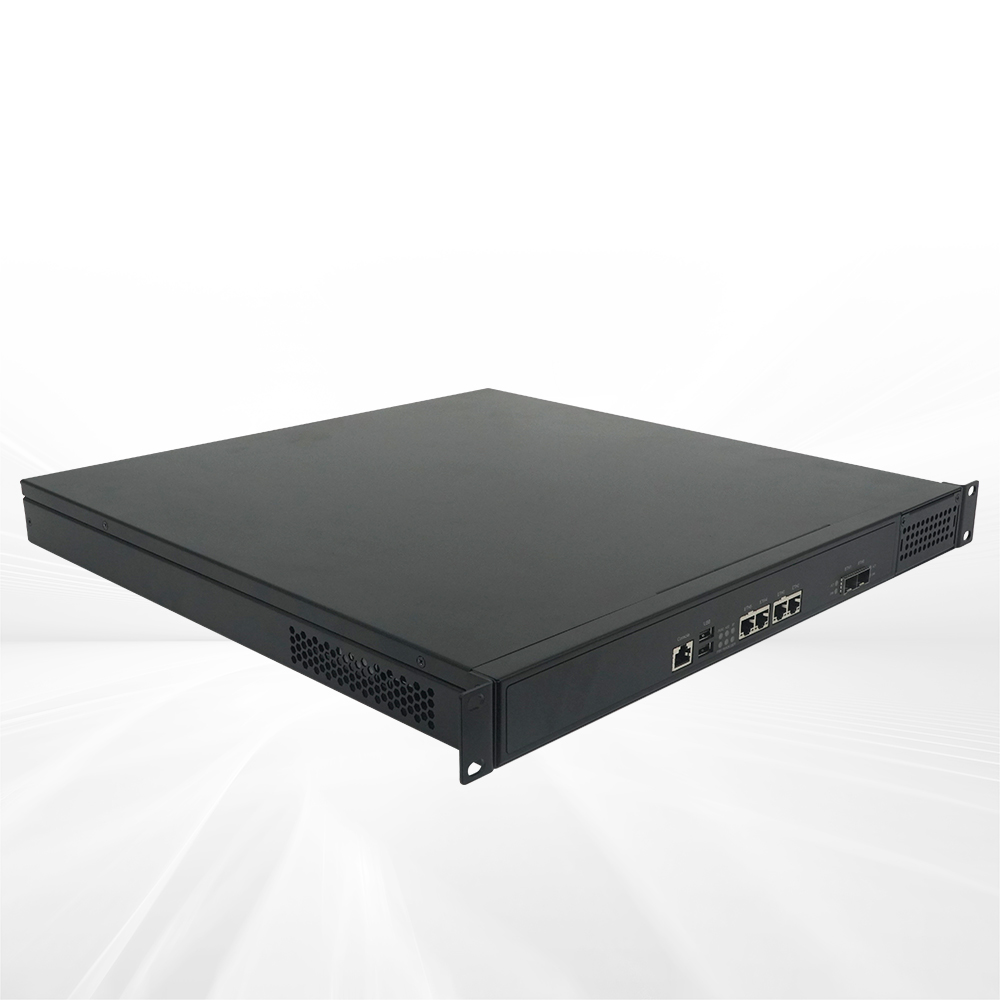

1U 19" Rackmount Network Application Platform
N15-01B is an economical network security hardware solution developed based on the 3rd Gen C3000 of Intel® Atom and a 1U 19" standard rack-mounted chassis is adopted. It supports 1 x Mini PCI_E slot and 1 x PCI_E (signal X1). The onboard module supports up to 6 x Gigabit LAN ports, and the high-configuration module supports 1 x ENS LAN expansion. The complete PC supports up to 14 x Gigabit LAN ports. N15-01B is mainly applicable to firewalls, antivirus walls, next-generation firewalls, application delivery, traffic management, VPN, DNS, IDS/IPS, UTM and other scenarios.
| Item | Description | |
|---|---|---|
| Storage Port | SATA | Supports 1 x SATA port. Note: The standard configuration of 1 x hard disk bay, and the economical model has no SATA port or SATA hard disk bay |
| MSATA | supports 1 x MSATA slot | |
| I/O Port | USB | 2 * USB3.0 (front) |
| COM | 1 x RJ45 Console port (front), RS232 mode by default, supporting redirection function | |
| GPIO | Supports 8-channel digital GPIO Expansion bus | |
| Display Port | 1 x VGA port (optional and can be led out at the rear). Note: If necessary, please indicate that VGA is provided when placing an order Optional chipset Part No.：1060-009761 EF-V-001-EFI |
|
| Network port | Network Chip | Intel® I210/I211 |
| LAN Port Type | Scheme 1: 6 x Gigabit electrical port onboard; Scheme 2: 4 x Gigabit electrical port + 2 x 10-Gigabit optical port onboard |
|
| Expansion Bus | PCIE | 1 x standard PCIE X8 slot (X1 signal) |
| ENS | High-configuration module: Supports 1 x ENS network card expansion slot. | |
| Matched Motherboard | NET-1832VD6N series | |
| Working Environment | Working temperature: 0°C -40°C Storage humidity: 10%-90% (non-condensing state) |
|
| Storage Environment | Storage temperature: -20°C-70°C; Storage humidity: 10%-90% (non-condensing state) |
|
| Overall Dimensions | 440mm（W）×44mm(H)×450mm（D） | |
| Power supply | Low configuration (no network expansion slot): default 1*60W single power supply, optional dual power supply. High configuration (1 x ENS expansion slot): default 1*150W single power supply, optional redundant power supply |
|
| Operating Systems | Linux OS (kernel version 2.6 and later). Please refer to the product manual for details | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| N15-01(B)-Product Manual | Various Platform | Vol15.0 | 2025-04-29 | 0.12MB | Download 𐃯 |
