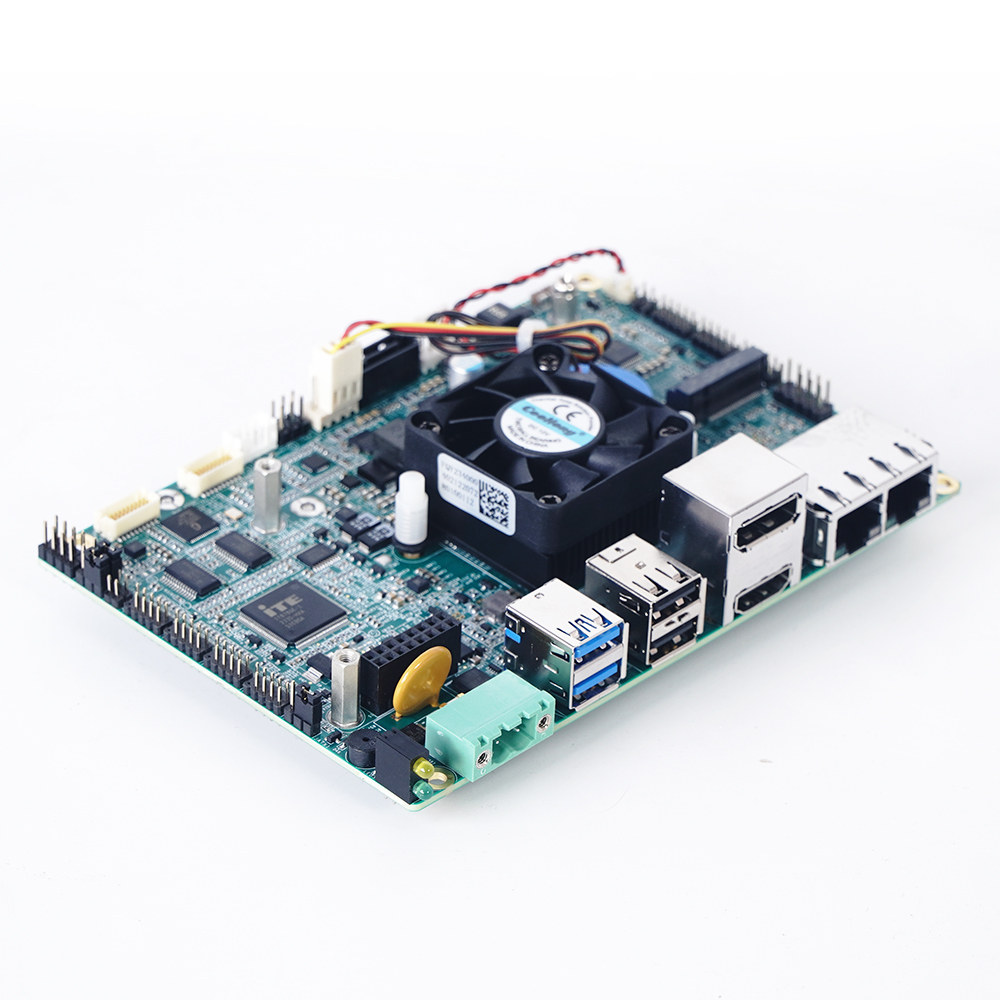

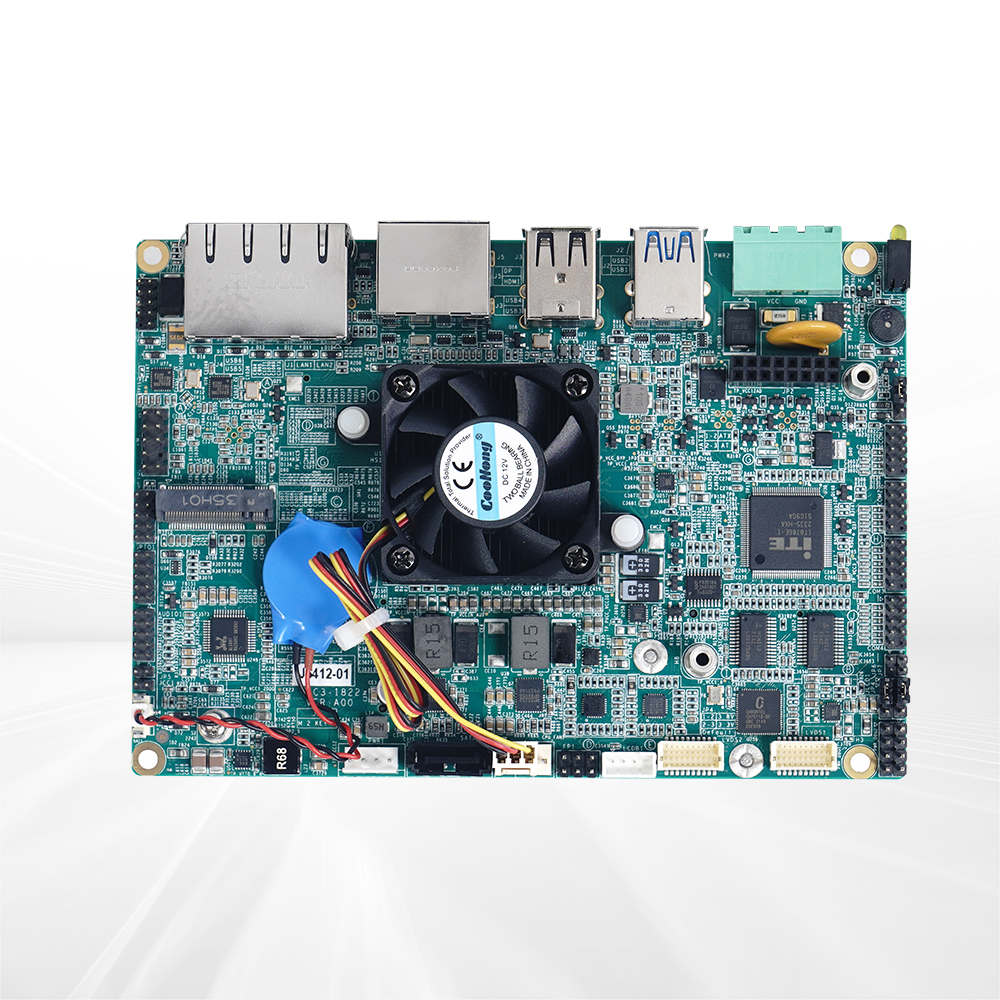

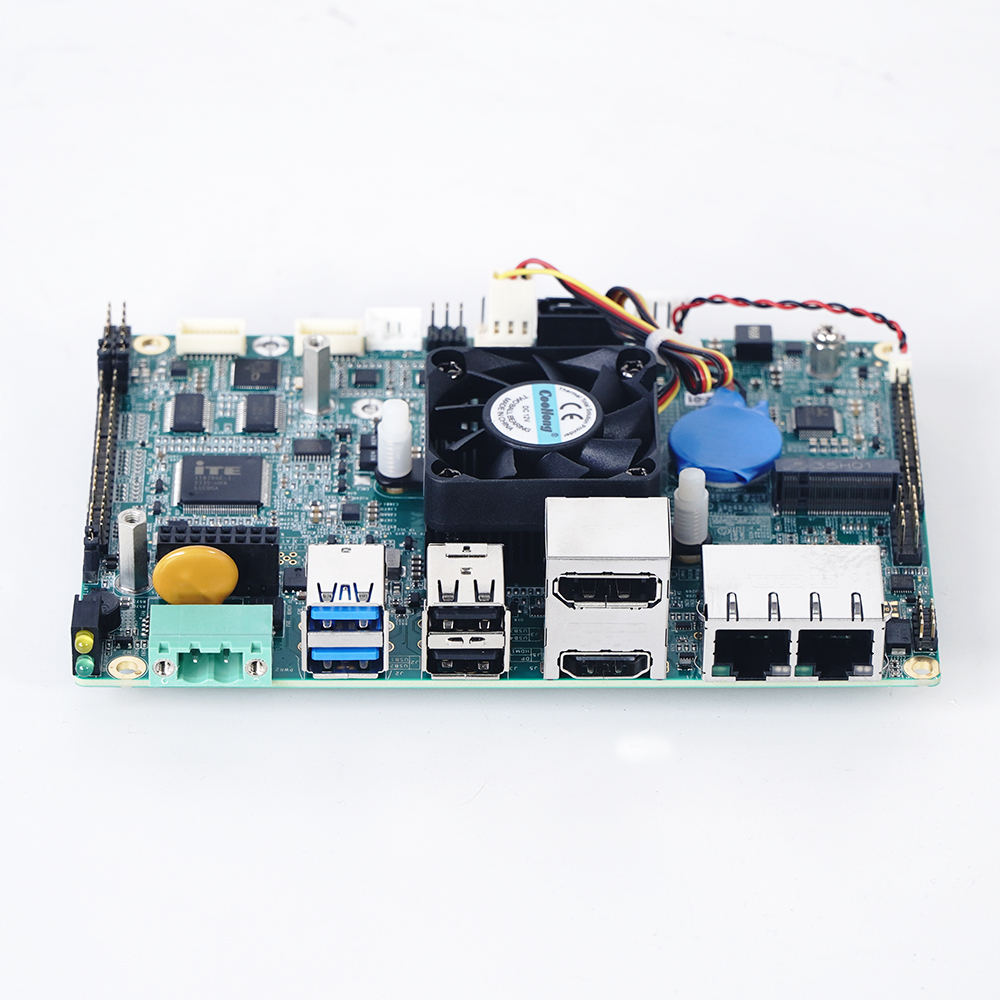

3.5" SBC with Onboard Intel Elkhart Lake J6412/N6211/X6425E
EC3-1822 is based on the Intel® Elkhart lake Soc processor, meeting the 3.5" single board specification. It has an ultra-low power consumption embedded motherboard and complete IO port functions, supporting a wide range of temperature and voltage. The compact size design is suitable for space scenarios with compact installation and is very suitable for medical examination, machine vision, industrial control, intelligent robots and other industries.
| Item | Description | |
|---|---|---|
| Processor | Adopt Intel Elkhart Lake onboard CPU, Celeron J6412/N6211/Atom x6425E | |
| Memory | 1 x 260pin DDR4 SO-DIMM, supporting 3200MHz and 32GB at most | |
| Display Port | HDMI2.0, DP1.4 and LVDS | |
| Audio | Adopt HDA standard, supporting MIC-IN/LINE-IN/LINE-OUT | |
| LAN | 2 × 10/100/1000Mbps LAN port | |
| Storage | 1 x SATA3.0, 1 x M.2 2242 Key-M (SATA3.0) | |
| I/O Port | Onboard front-mounted: 2 x USB3.1 Gen2 (10Gbps, Type A), 2 x USB2.0 (Type A), and 2 x built-in USB2.0 in the motherboard 2 x RS232/422/485, 2 x RS232 1 x TPM port, supporting TPM 2.0 security encryption 1 x hard disk indicator, 1 x power indicator 1 x 16-channel GPIO |
|
| Bus Expansion | 1 x M.2 E-key 2230 (USB2.0 signal and PCIeX1 signal), Wifi available 1 x M.2 B-key 3052 (USB3.0 signal), with SIM card slot, supporting 4G/5G |
|
| Power Supply | Adopt standard DC 12V power supply Optional DC9-36V wide voltage power supply module |
|
| Working Environment | －10℃～+60℃ | |
| Storage Environment | -40℃～+85℃ | |
| Constant Damp Heat | 40°C 95%RH, non-condensing | |
| Overall Dimensions | 146.1mm (L) ×101.6mm (W) | |
| Operating System | Windows 10/Windows 11 64 bit, Ubuntu, Linux high kernel version, etc. | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| EC3-1822-Product Manual | Various Platform | Vol15.0 | 2025-04-27 | 0.20MB | Download 𐃯 |
