IPC-620H
Compact Desktop/Wallmount Chassis

Supports ECS series Industrial Motherboard

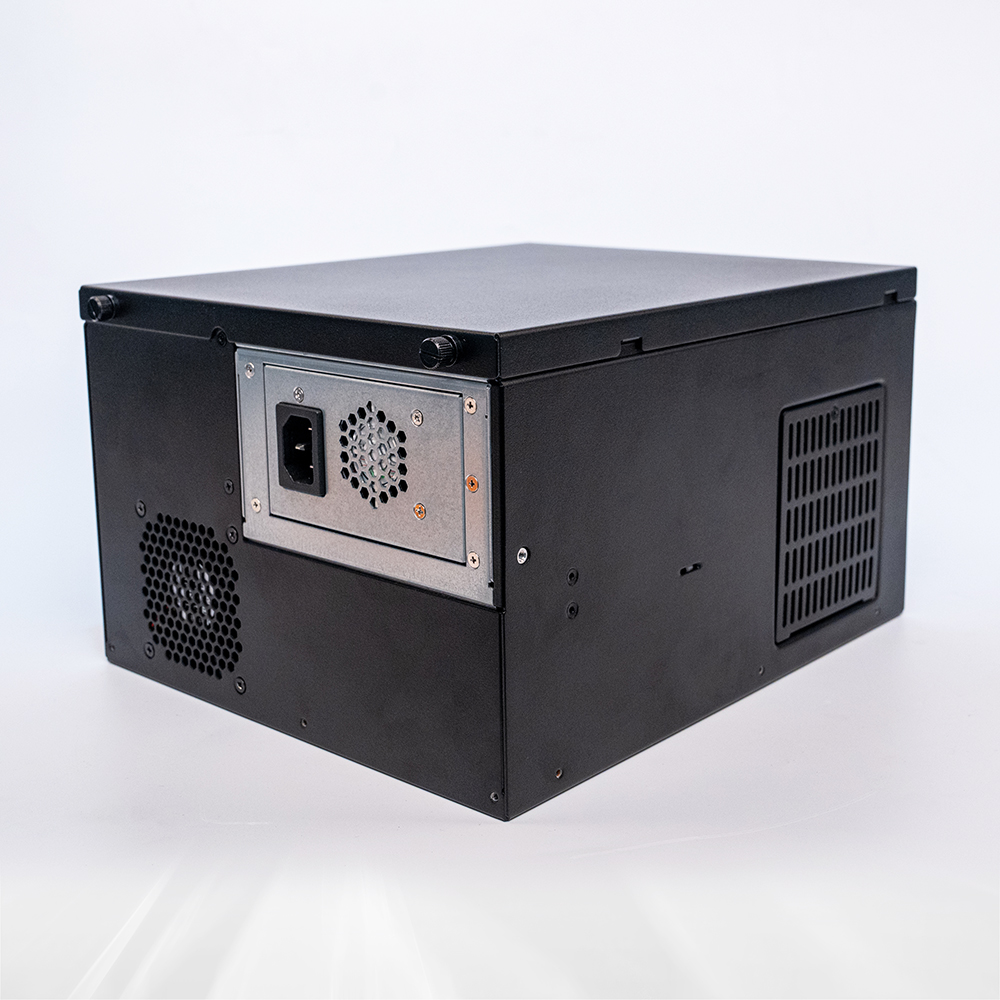

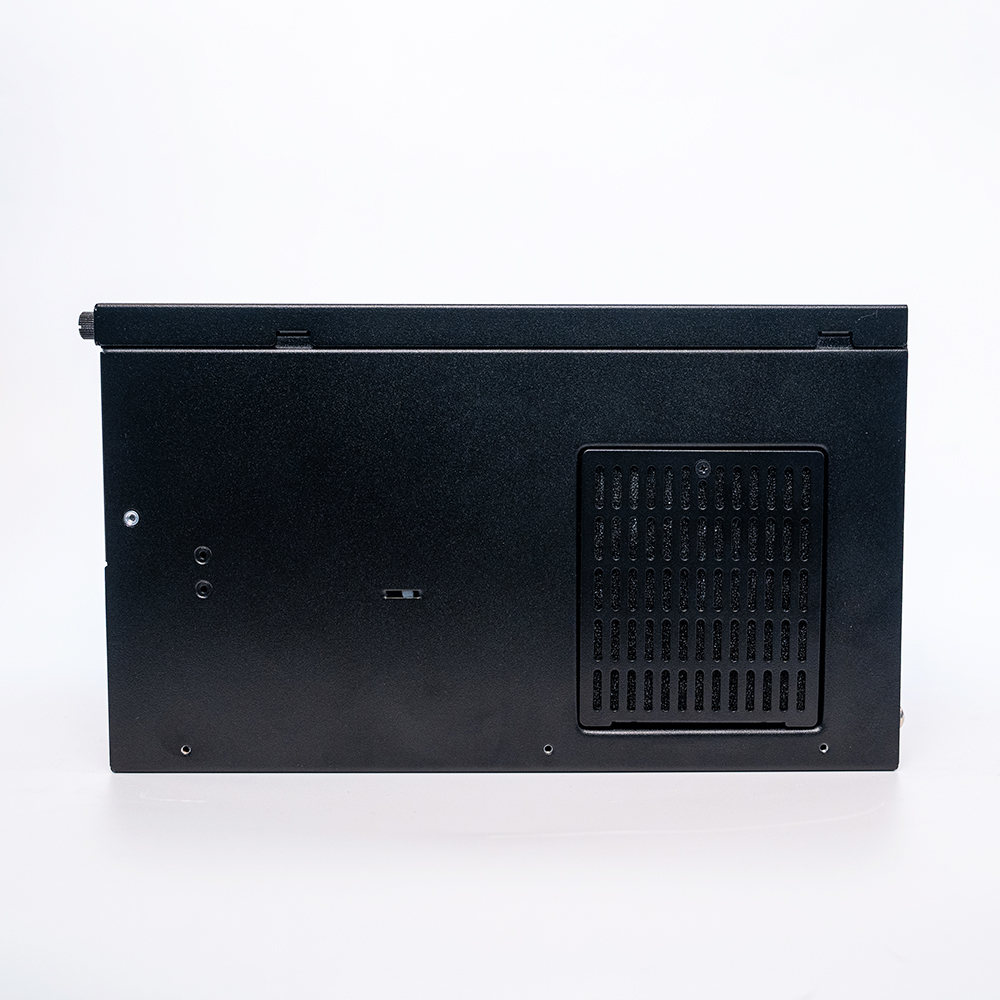

IPC-620H is a small and compact wall-mounted chassis equipped with ECS series special motherboards and can be matched with H81, H110, H310 and other platform motherboards. It has the characteristics of compact size, high performance and high cost performance. With multiple IO ports, it still has good expansion performance even in a small size. The chassis adopts a miniaturized design and can be installed in a narrow space. Main application fields: 3C manufacturing, machine vision, security inspection, highways, self-service terminals, etc.

Product Features

Abundant IO ports

Easy-to-maintain and clamshell-type

Strong expansion capability and compact size

Product Specifications

Item		Description
Motherboard		ECS special motherboard: H81 platform ECS-1830; H110 platform ECS-1839; H310 platform ECS-1852
Memory		1 x 2.5-inch hard shock-absorbing hard disk bays; 1 x ultra-thin optical drive bay (compatible with the installation of 1 x 2.5-inch hard disk)

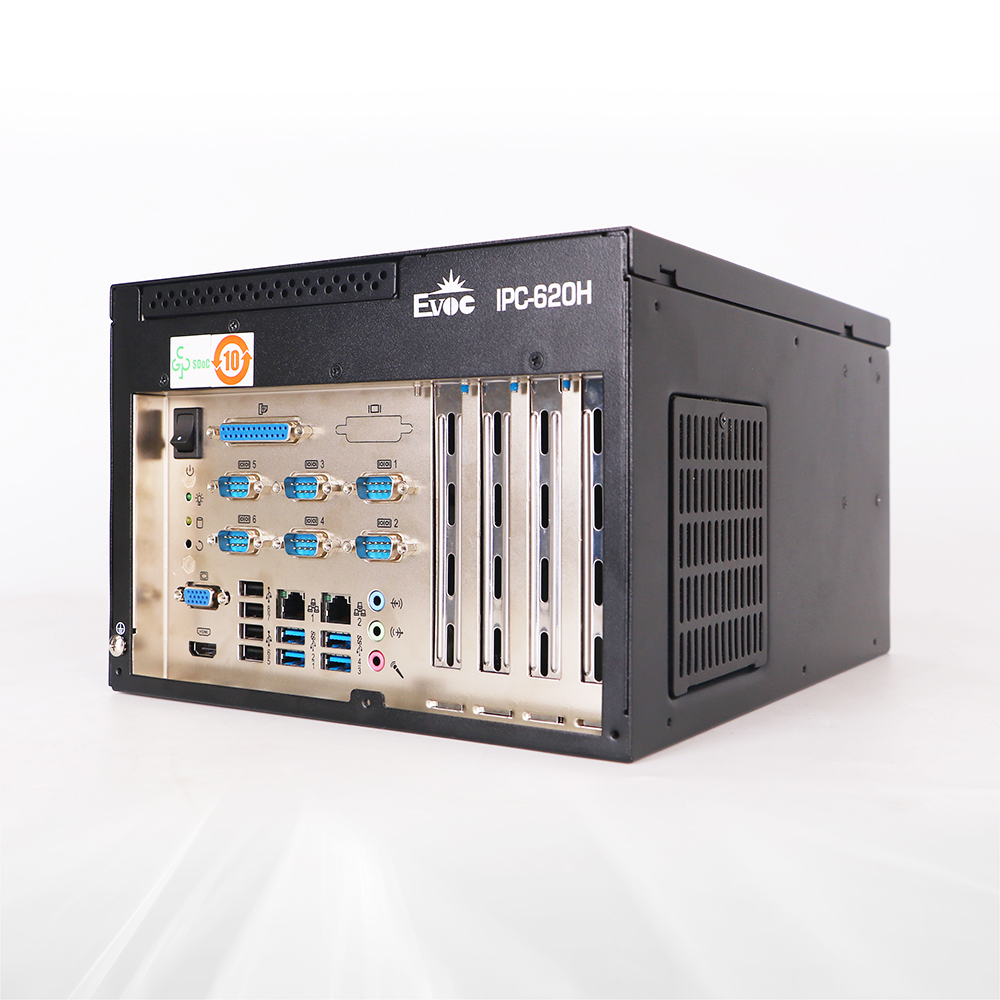

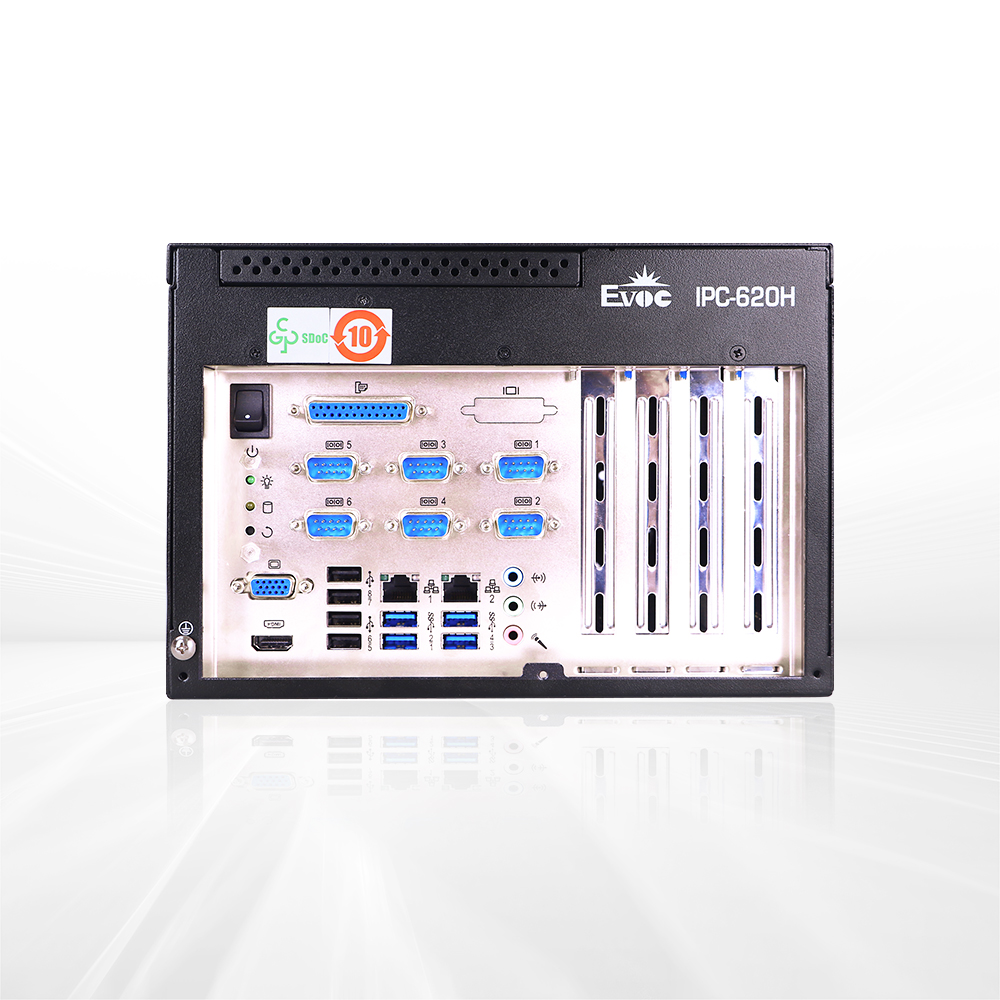

I/O Port		All IO ports are on the same plane, depending on different motherboard platforms

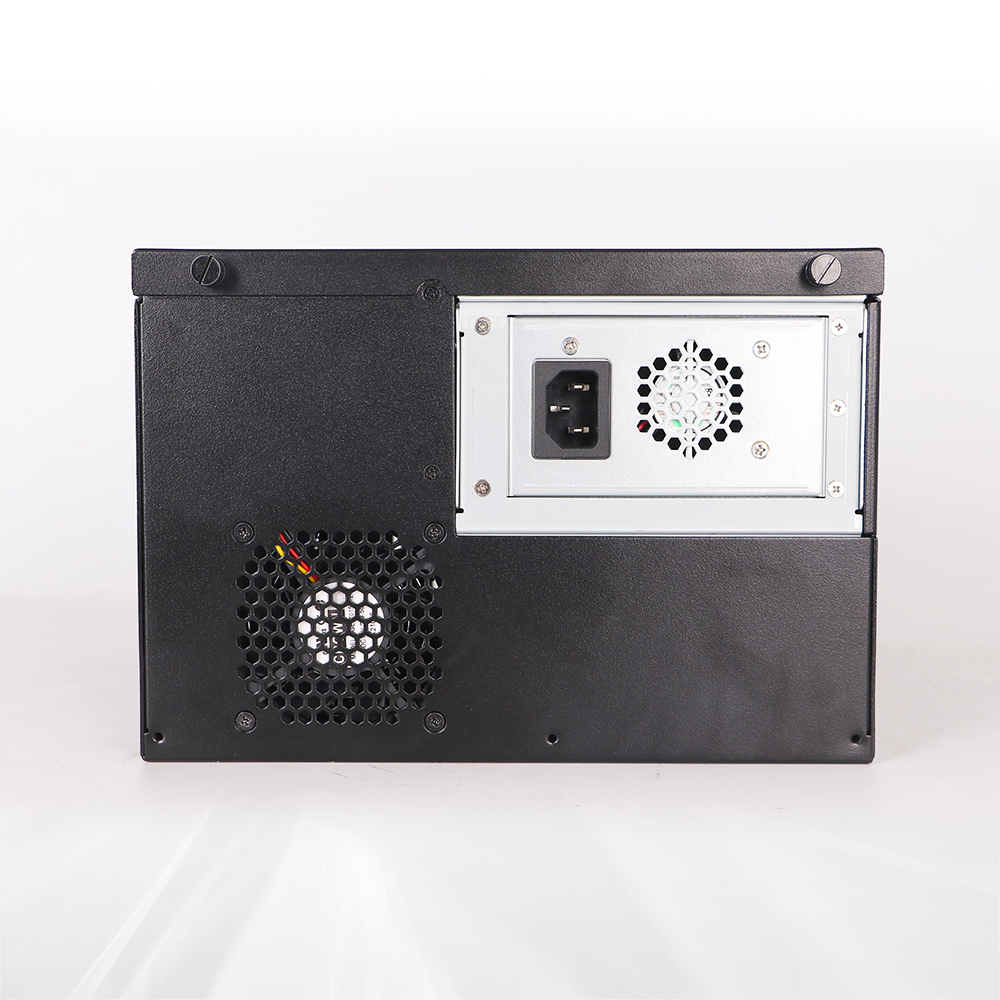

Power Supply		Small PS2 ATX power supply or 1U small power supply
Working Temperature		0°C~50°C, 5%~90% (non-condensing state)
Storage Temperature		-20°C~60°C, 5%~90% (non-condensing state)
Overall Dimensions (W×H×D)		280mm×165mm×238mm
