Supports Mini ITX Industrial Motherboard

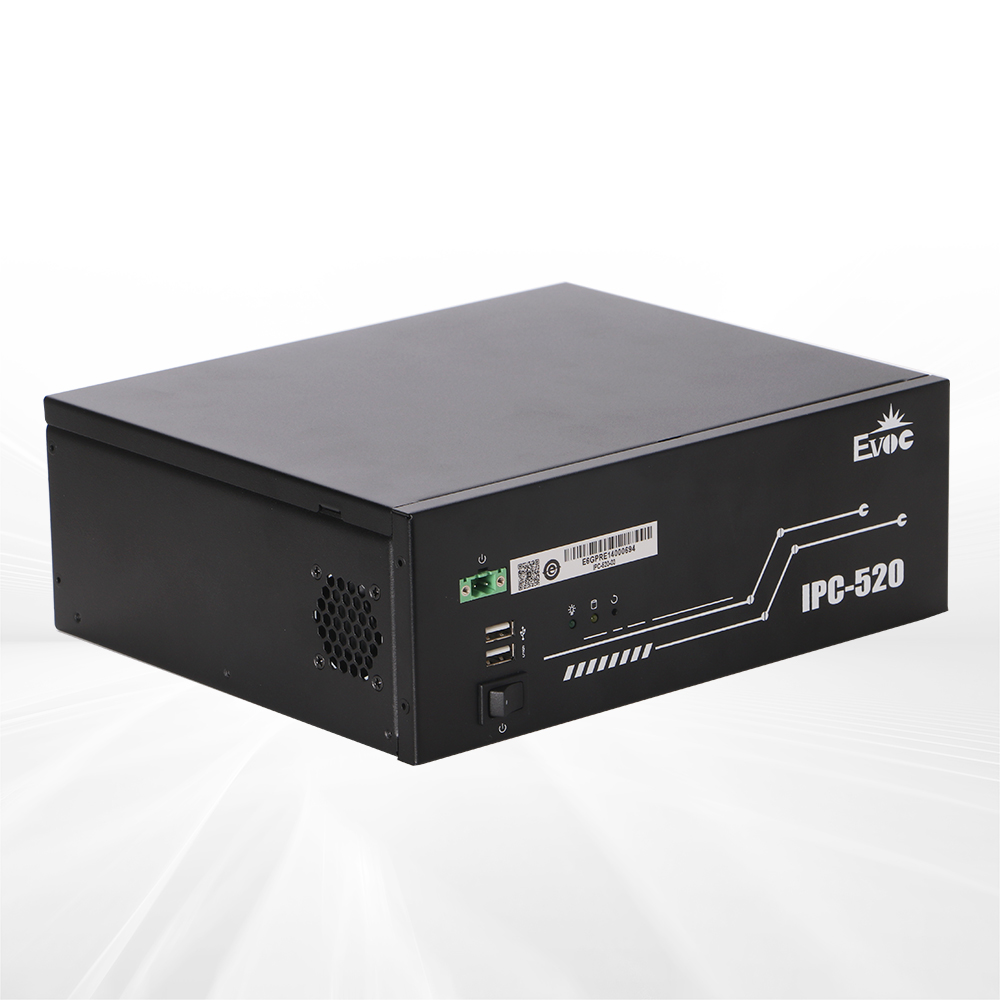

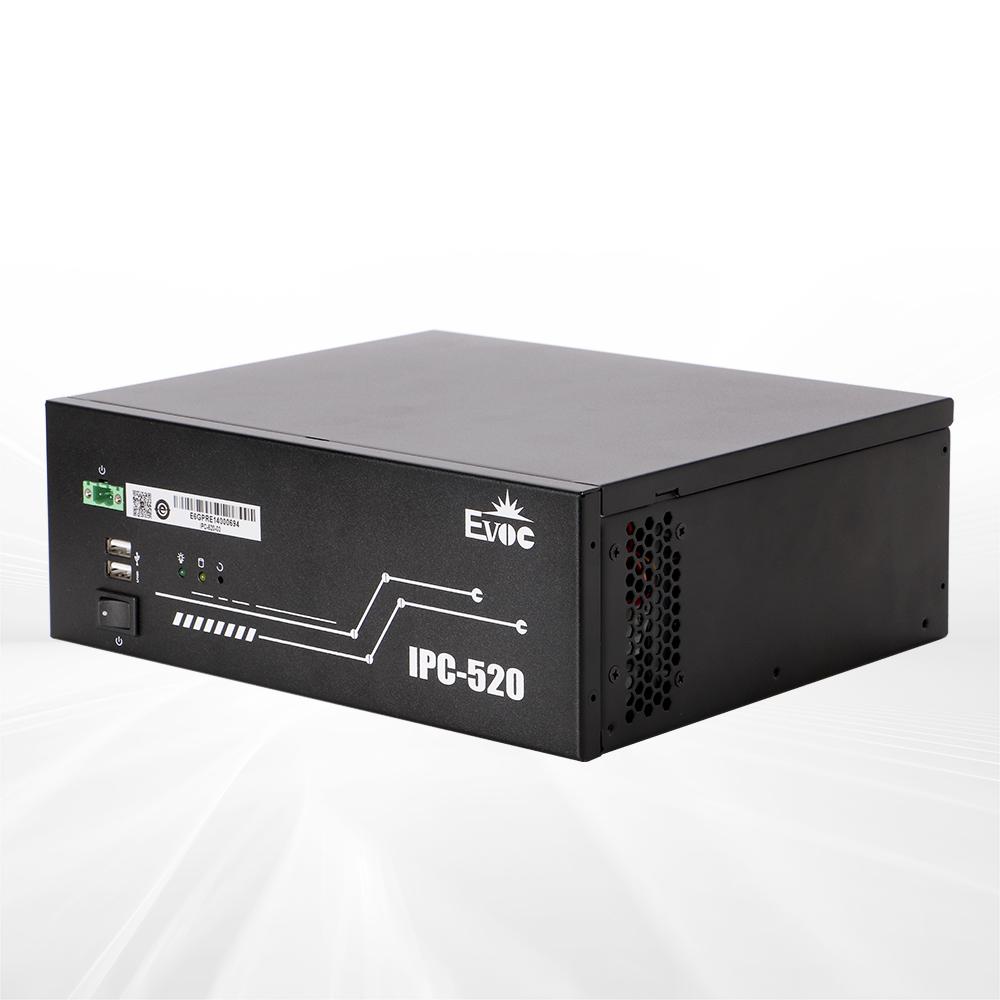

IPC-520S is a small and compact complete PC made of sheet metal, with good heat dissipation and vibration resistance. It can be installed with the EC7 series motherboard. The H110/C236 platform's motherboard supports Intel LGA 1151 pin 6th and 7th Gen series processors and extended full-height half-length expansion cards. It has good expansion performance and can be installed in narrow spaces and it can be widely used in industrial manufacturing, machine vision industry, security inspection industry and other industries.
| Item | Description | |
|---|---|---|
| Motherboard | Supports MiniITX motherboard | |
| Chipset | Intel H110/C236 platform chipset | |
| CPU | Supports InteL LGA 1151-pin 6th and 7th Gen series processors | |
| Memory | 1 x DDR4 U-DIMM slot, supporting up to 16G memory capacity | |

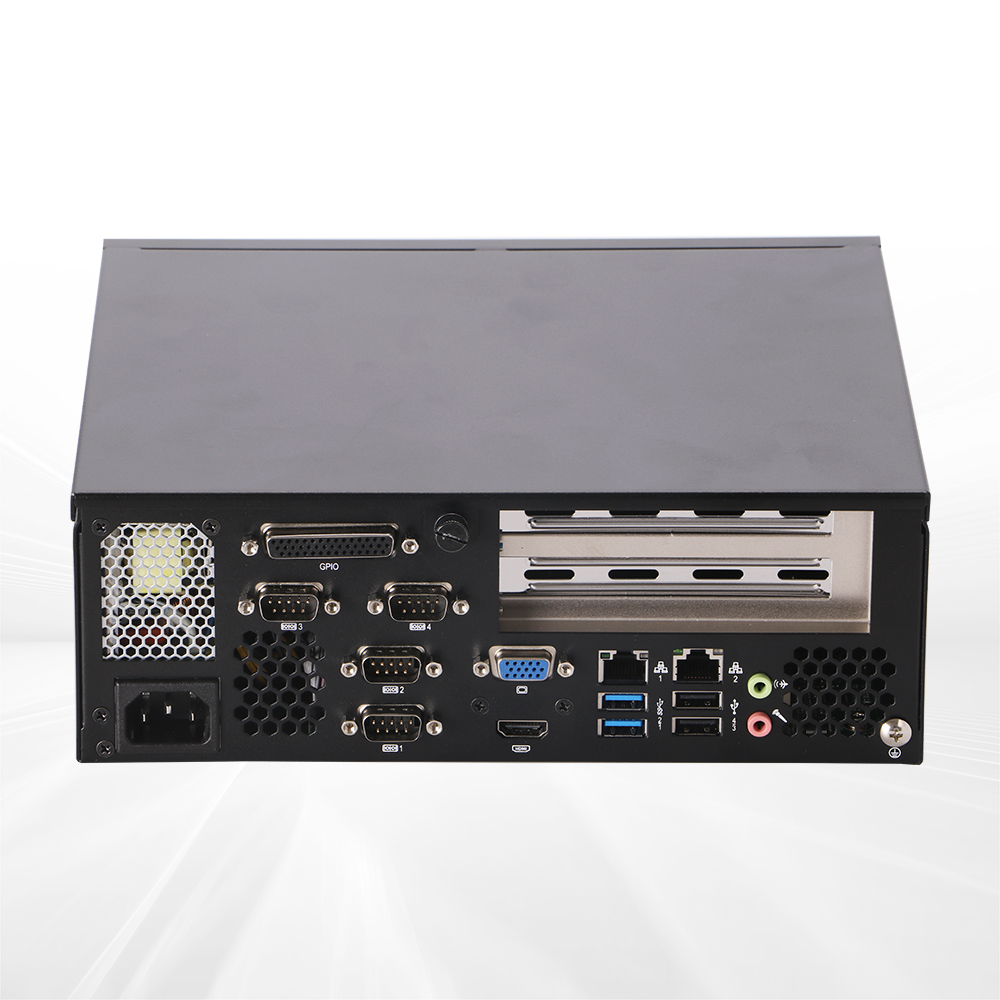

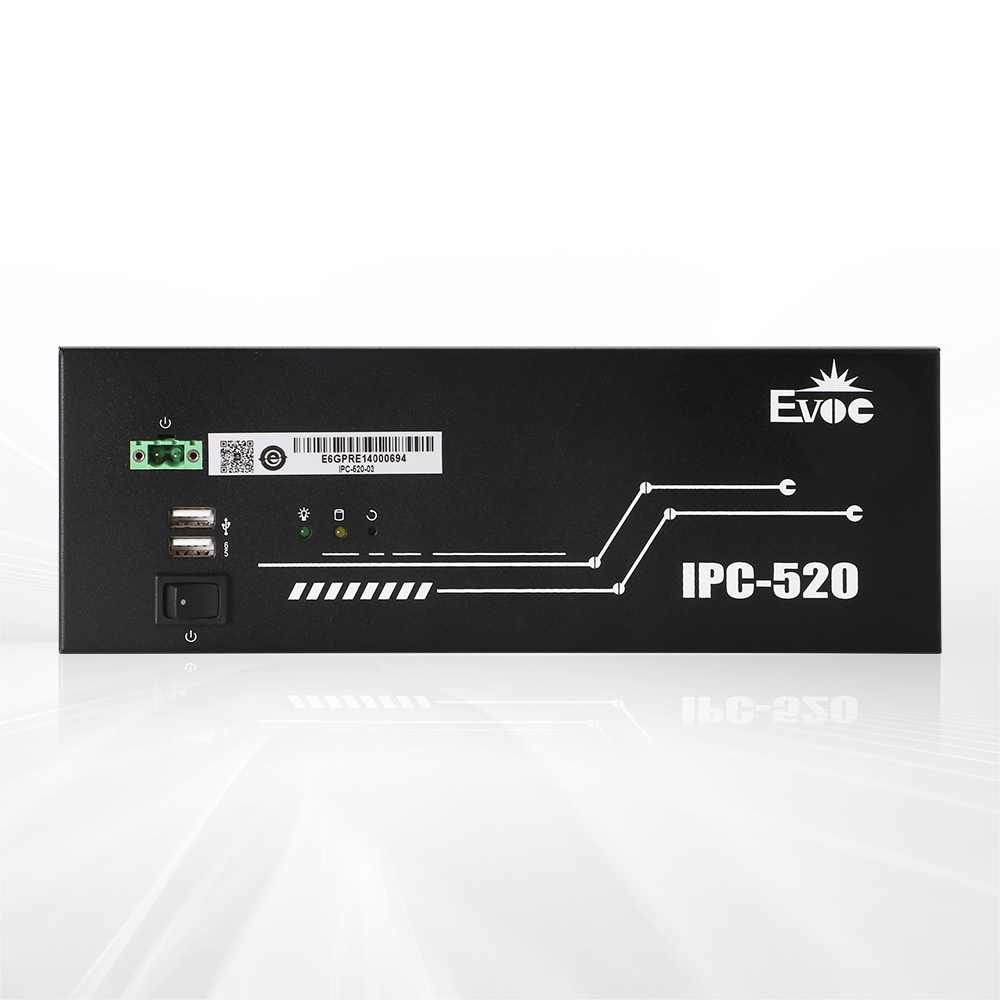

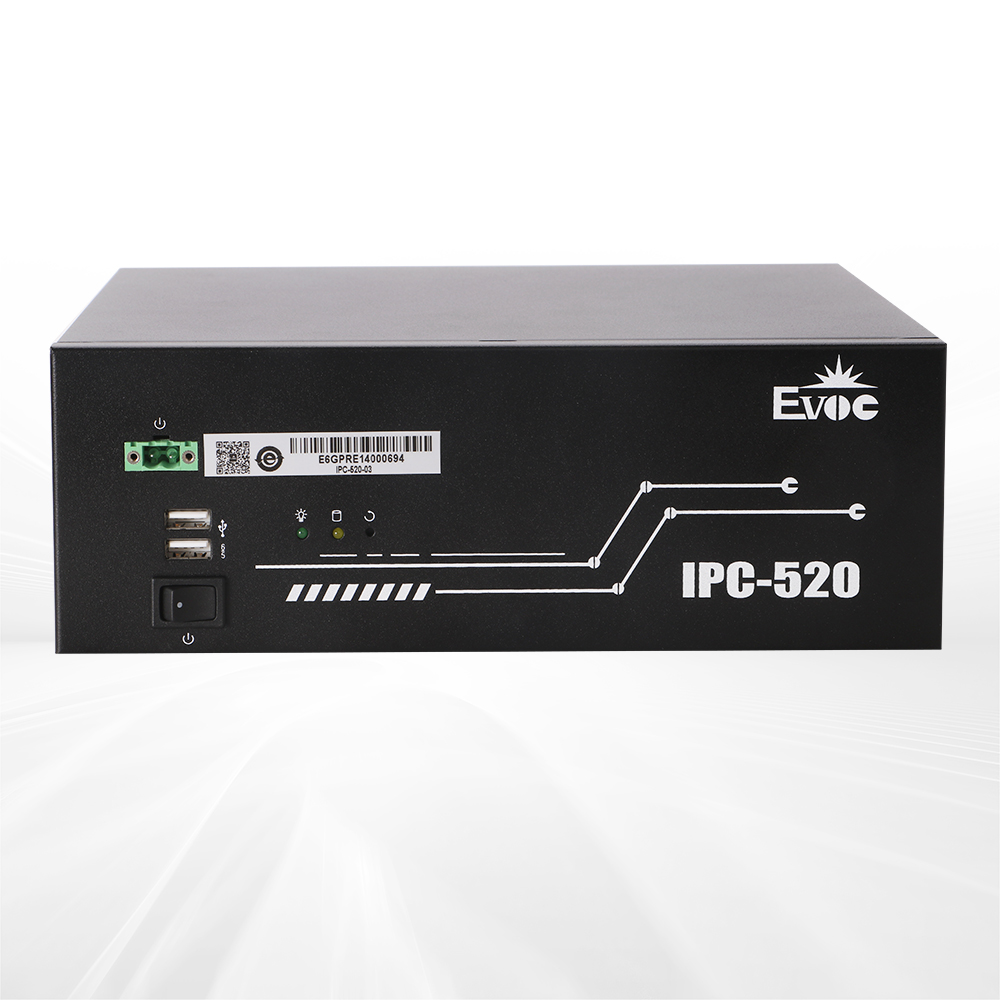

| I/O port | Rear: 2 x USB3.0, 2 x USB2.0 4 x COM, COM1 and COM2 support RS232\RS422\RS485 1 x VGA, 1 x HDMI 2 x Gigabit LAN port 1 x ATX power outlet 1 x LINE-IN, 1 x LINE-OUT 1 x 16-bit GPIO is brought out via lead wire by means of DB44 Front: 2 x USB2.0 port Front power switch The Phoenix terminal port is used to connect the front power supply |
|
| Memory | 1 x 2.5-inch shock-absorbing hard disk bay, without optical drive installation | |
| Bus Expansion | 1 x PCIEx16 | |
| Working Temperature | 0°C~50°C, 5%~90% (non-condensing state) | |
| Storage Temperature | -20°C~60°C, 5%~90% (non-condensing state) | |
| Power Supply | MiniATX Industrial-grade Power supply | |
| Operating System | WIN7、WIN8、WIN10、LINUX | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| IPC-520S-Product Manual | Various Platforms | Vol15.0 | 2025-04-27 | 0.16MB | Download 𐃯 |
