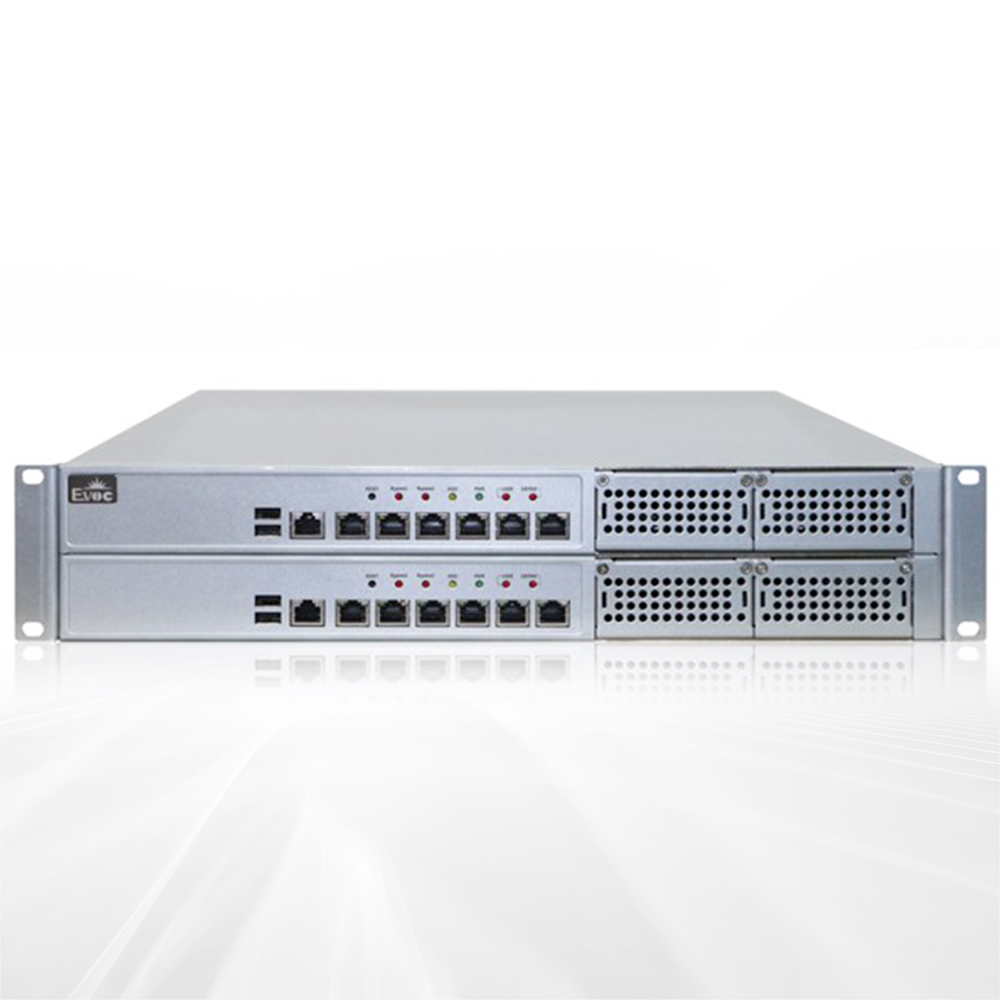

2U 19" Rackmount Network Application Platform with dual motherboards
NPC-8228-02 is the 3rd Gen 2U19" dual motherboard gatekeeper product of EVOC. Based on X86 architecture, it adopts Intel mainstream chipset C236 and supports Intel® LGA1151 packaging SkyLake and KabyLake series E3\I7\I5\I3 Xeon, Core, Pentium and Celeron 10th Gen processors. The memory of a single-layer motherboard can reach 32GB. The complete PC is designed with several EVOC patents or special technologies, and its performance far exceeds that of the previous generation of H61 platform products.
| Item | Description | |
|---|---|---|
| System Configuration | Processor | C236: supports LGA1151 packaging i3, i5, i7 Core 6th/7th Gen processors, Xeon E3-1200 v5 and v6 series processors H110: supports LGA1151 packaging i3, i5, i7 Core 6th/7th Gen processors |
| Chipset | Intel C236 (optional Intel H110) | |
| Memory | Single board: provides 2 x 288Pin standard DDR4 memory slot, and the total capacity of the complete PC can reach 32GB (UDIMM memory is selected) | |
| Storage Port | SATA | Single board: supports 4 x SATA3.0 port, and standard configuration of 2 x hard disk bays (6 x SATA3.0 port free) |
| I/O Port | USB | Single board: provides 2 x USB port (front), 2 x USB2.0 pin (built-in) and 1 x USB3.0 pin (built-in) |
| COM | Single board: provides 1 x RJ45 Console port (front) and 1 x RS232 serial port pin (built-in) | |
| GPIO | Supports 8-channel digital GPIO | |
| Display Port | 1 x VGA port | |
| Network port | Network Chip | Intel® I210/I211 |
| LAN Port Type | Single board: provides 6 x Gigabit electrical port | |
| Expansion Bus | PCIE | Single board: onboard 1 x PCIE 8X slot |
| ENS | Single board: 2 x ENS expansion slot can be selected for the C236 chipset; the H110 chipset has no ENS expansion slot |
|
| Matched Motherboard | NET-1828VD6N series | |
| Working Environment | Working temperature: 0°C -40°C Storage humidity: 10%-90% (non-condensing state) |
|
| Storage Environment | Storage temperature: -20°C-70°C; Storage humidity: 10%-90% (non-condensing state) |
|
| Overall Dimensions | 440mm(W)x88mm(H)x650mm(D) | |
| Power supply | Supports 550W ATX redundant power supply | |
| Operating Systems | Linux OS (kernel version 2.6 and above). Please refer to the product manual of EVOC for details | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| NPC-8228-02-Product Manual | Various Platform | Vol15.0 | 2025-04-29 | 0.09MB | Download 𐃯 |
