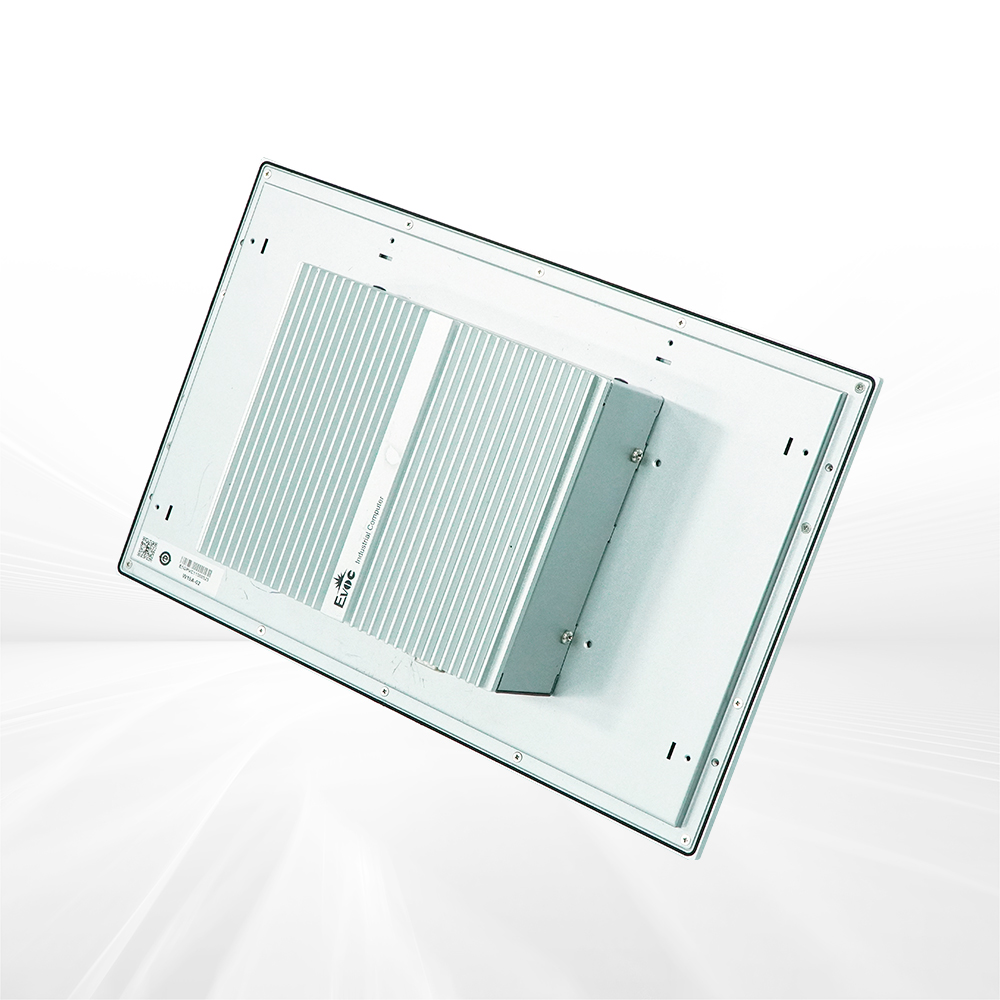

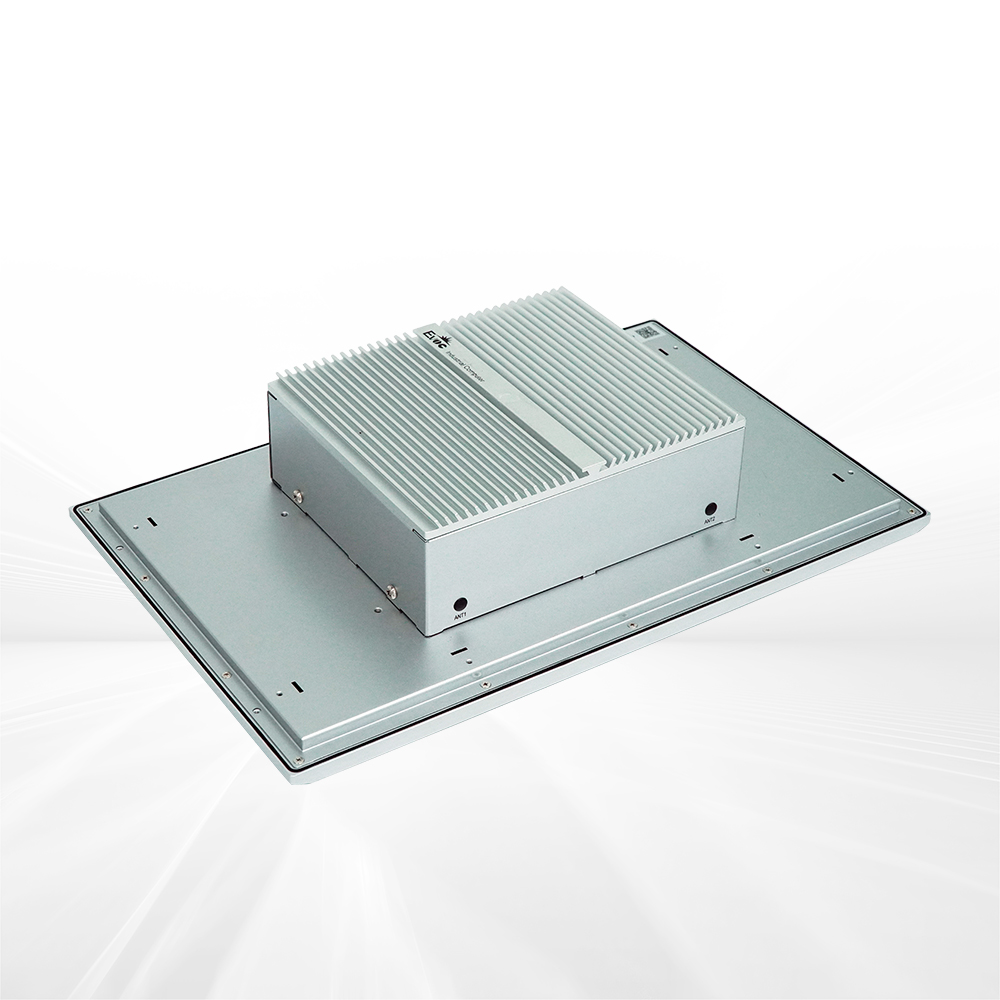

W18A-EVOC-Leading provider of industrial Internet solutions in China

Product Specifications

Item		Description
System Configuration	Processor	Intel® Celeron J1900、J6412、X6425E、Intel® Core™ 6/7/8代 I3/I5/I7系列及9代Intel® Core™ I3/I5系列，LGA1151，CPU TDP ≤ 65W。 supports 12/13th Gen Core™ i9/i7/i5/i3/ Pentium® Gold/Celeron® G series processor LGA1700 pin, and processors with a power consumption lower than 65W.
	Chipset	H110/C236/H310/Q370/H610E/Q670E(optional);
	Memory	BayTrail J1900: Supports 1 x 204Pin DDR3L SO-DIMM slot up to 8GB with 8G DDR3L memory requiring chips on both sides; SkyLake-U: supports 1x 260Pin DDR4 SO-DIMM memory slot onboard 4GB with the slot supporting up to 16GB and the complete PC up to 20GB;。 H110/C236/H310/Q370: supports 2x 260Pin DDR4 SO-DIMM memory slots with 1 slot supporting up to 32GB and the complete PC up to 64GB; H610E/Q670E: supports two DDR5 4800MHz SO-DIMM memory slots with 1 slot supporting up to 32G and the complete PC up to 64GB.

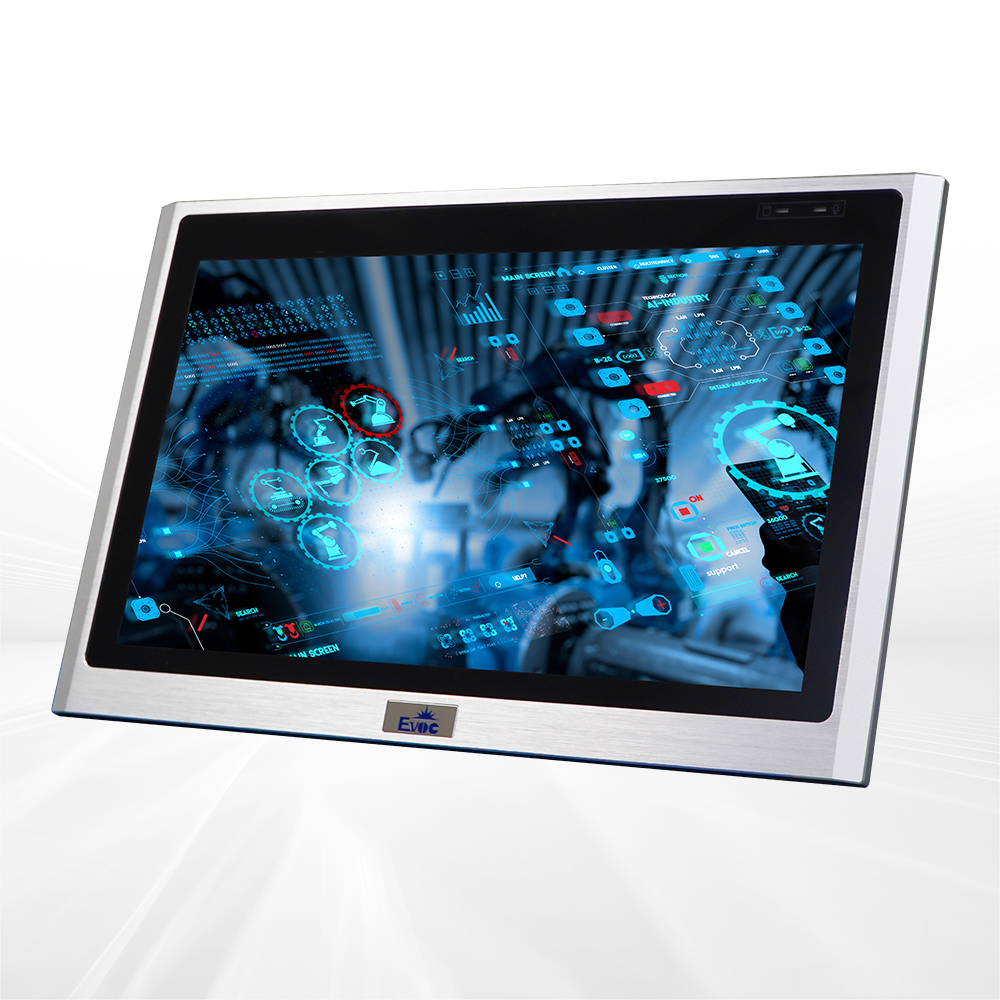

Display Performance	Screen Size	19′′ TFT LCD 16:10 widescreen
	Maximum Resolution	1440x900
	Brightness	≥250cd/m2 (bare screen)
	Contrast	1000：1
Touch Function	Touch Method	Capacitive touch screen, multi-touch

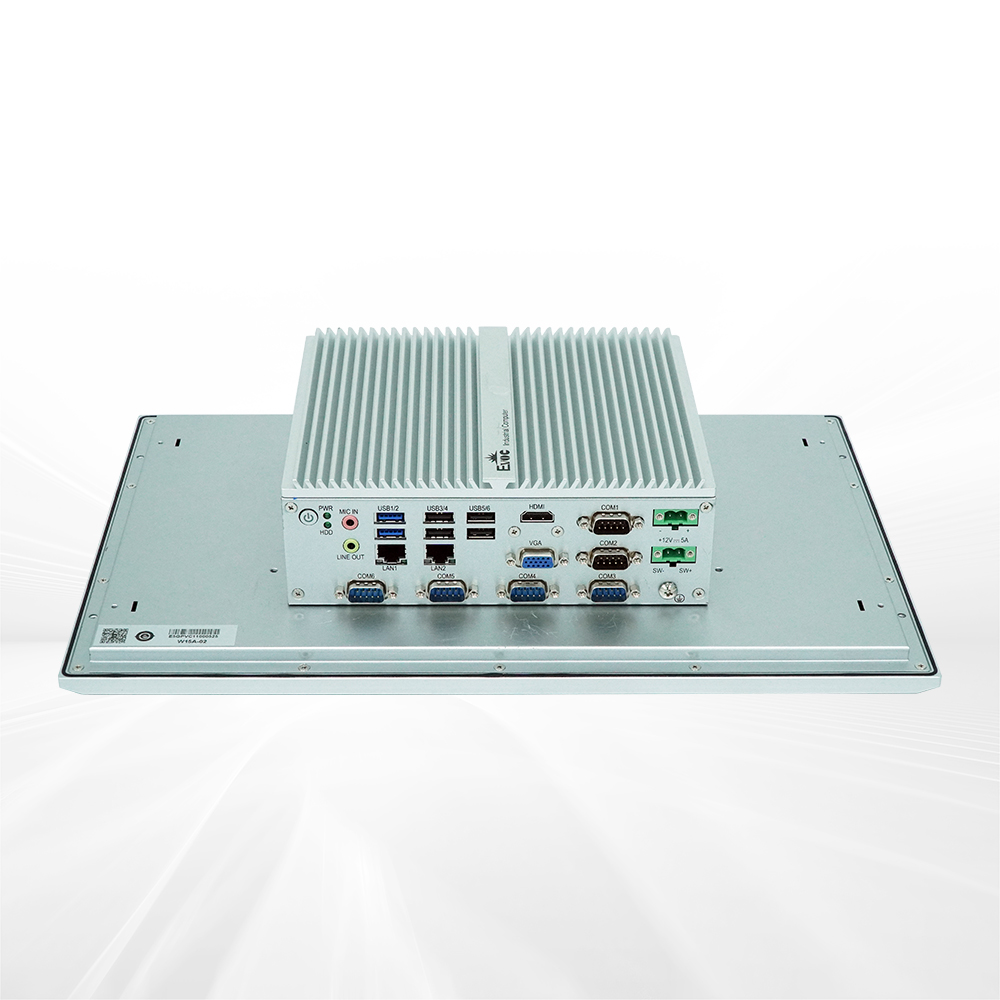

I/O Port	LAN ports	J1900/J6412/H110/C236/H310/Q370: 2/4/6 RJ45 10/100/1000Mbps LAN port (optional); H610E/Q670E: Standard configuration of 1x RJ45 gigabit electrical port and 1x 2.5G electrical port; H610E can be equipped with two more 2.5G electrical ports, and Q670E can be equipped with four more 2.5G LAN ports.
	Display	BayTrail/H110/H310/Q370: supports any two displays of VGA, HDMI and DVI-I, but does not support simultaneous three displays; C236: supports independent and simultaneous three displays of VGA, HDMI and DVI-I; H610E/Q670E: supports 2x HDMI 2.0, 1x DP1.4, and simultaneous three display.
	USB	BayTrail：supports up to 1 x USB3.0 + 5 x USB2.0 port; SkyLake-U: 2 x USB3.0 + 2 x USB2.0 port; H110：4 x USB3.0+4 x USB2.0 port; C236：8 x USB3.0 port; H310/Q370：4 x USB3.0+4 x USB2.0 port; H610E：2 x USB3.2 Gen2, 1 x USB3.2 Gen1 port and 5 x USB2.0 port; Q670E：4 x USB3.2 Gen2, and 4 x USB3.2 Gen1 port.
	COM	4/5/6 serial ports. COM1~COM6 support optional RS232/485/422 (MAX), and the expansion box can have up to 10 COM ports. The 4 serial ports of the expansion box are in RS-232 mode.
	GPIO	1 x 8-channel GPIO (1×10 Phoenix terminals)
	Audio	1 group of audio ports (supporting MIC-IN, LINE-IN and LINE-OUT)
Expansion Bus	Motherboard Integration	According to the specific configuration
Storage	Hard Disk	BayTrail/SkyLake-U：1x SATA interface; H110/C236/H310/Q370/H610E/Q670E：2x SATA interface.
Storage	M-SATA/M.2	BayTrail/SkyLake-U: 1x M-SATA slot; H110/C236: 1x M-SATA slot;1 x M.2 keyM slot; H310: 1 x M.2 keyB slot; Q370/H610E/Q670E: 1 x M.2 keyM slot.
Working Environment		CPU TDP < 35W, Working Temperature: 0°C~45°C with HDD; Working Temperature: 0°C~50°C with SSD; 35W≤CPU TDP≤65W, Working Temperature: 0°C~40°C with HDD; Working Temperature: 0°C~50°C with SSD; Note: The air velocity in the working environment of the complete PC depends on the specific configuration.
Storage Environment		-20℃～+60℃; humidity: 5%~95% (non-condensing state).
Installation Method		Supports embedded, VESA standard mount, etc.
Dimensions	Overall Dimensions	480mm (W) x 330mm (H) (depth dimension depends on the specific configuration)
Dimensions	Mounting Dimensions	469mm (W) x 319mm (H)
Power		1 x 4Pin Phoenix terminal power port; BayTrail: 1x 2Pin Phoenix terminal type power interface, and 1x 2Pin Phoenix terminal type remote switch port. The input voltage depends on the specific configuration; SkyLake-U/H110/C236/H310/Q370/H610E/Q670E: 1x 4Pin Phoenix terminal type power port, input voltage as per specific configuration.
Operating System		WIN7 (64bit), WIN10, LINUX (Kernel 2.6)
