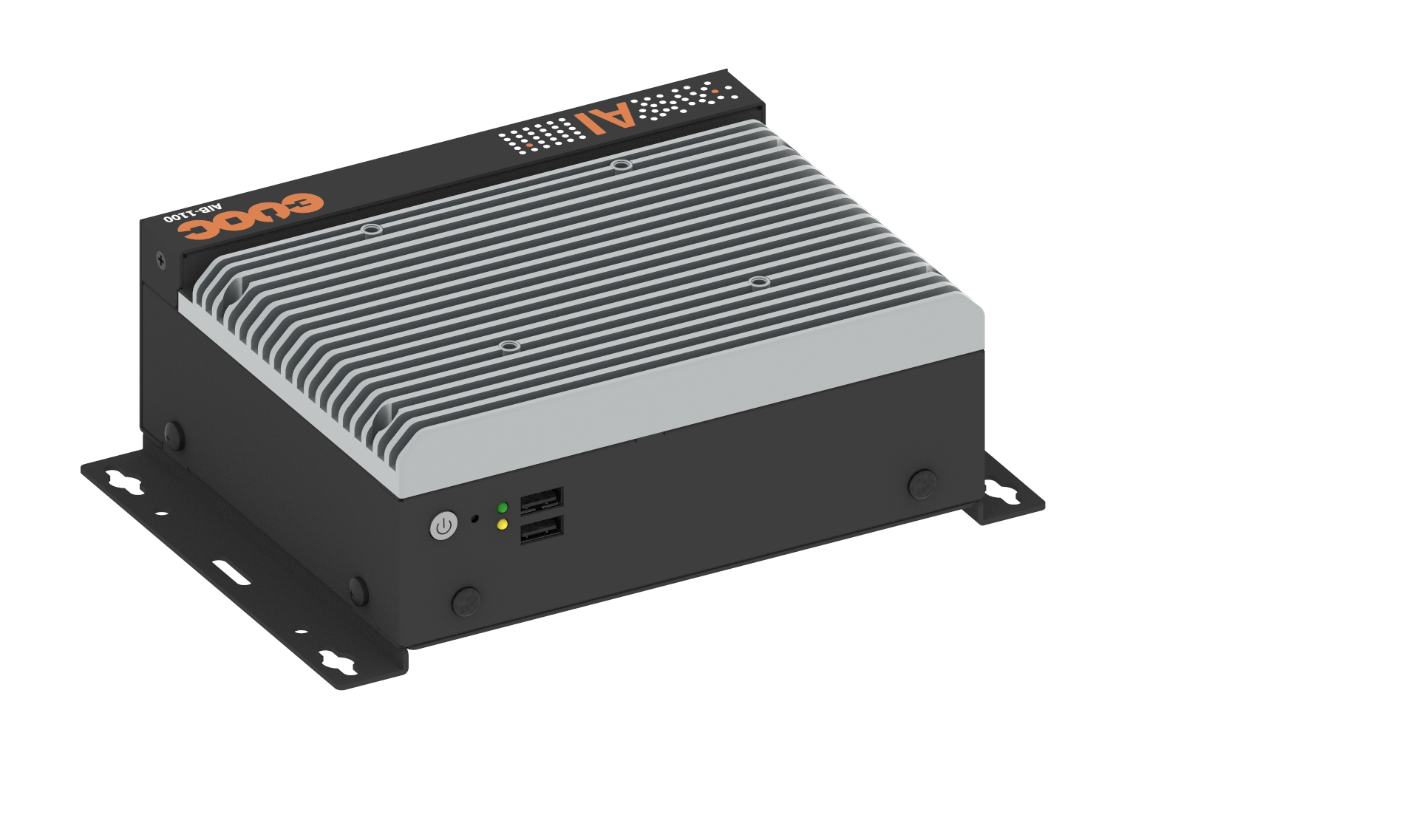

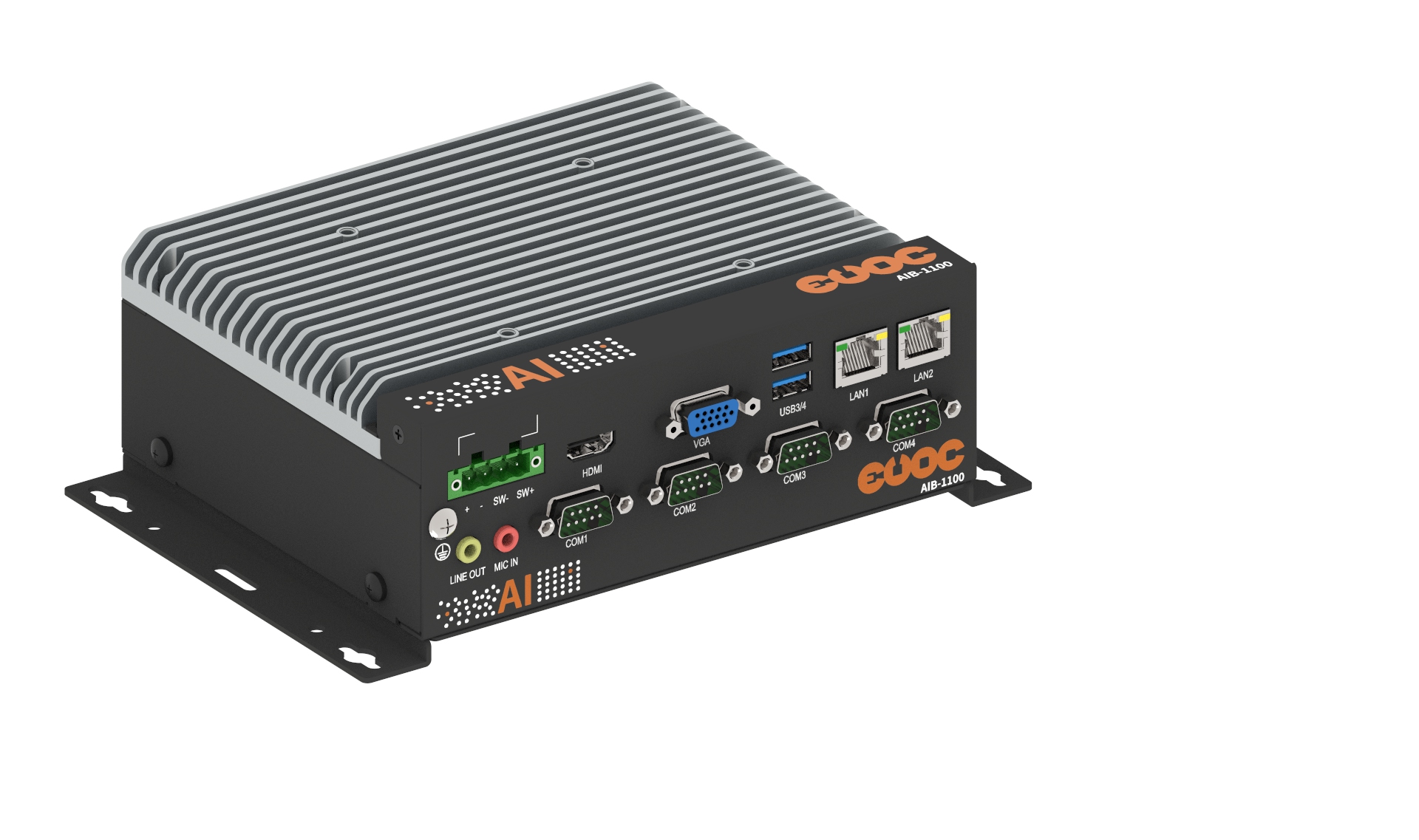

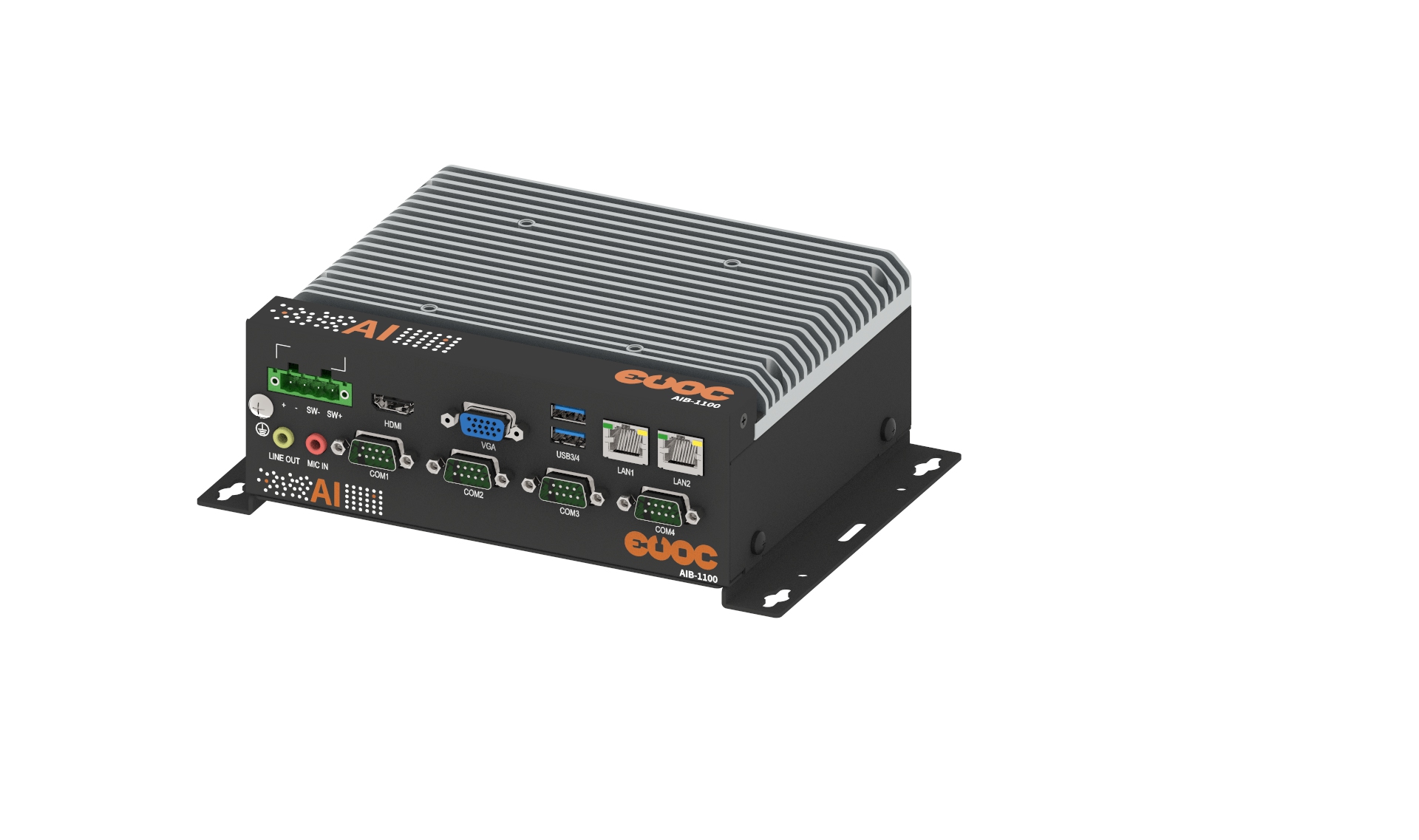

AIB-3600Jetson AGX Orin

AI Edge Computing Unit

AIB-3600 is a revolutionary computing platform built for robotics and edge AI applications. Integrating next-generation Arm® Cortex-A78AE CPU and NVIDIA Ampere architecture GPU, it delivers up to 275 TOPS of AI performance, providing unprecedented compute density and energy efficiency for the most complex AI workloads.

Product Features

Computing Power Up to 275 TOPS

Wide-Temperature Operation

Low Power High Performance

Fully Sealed and Fanless

REQUEST QUOTE

Item	Description
Processor	Arm Cortex-A78AE v8.2 64-bit CPU
Chipset	NVIDIA® Jetson AGX Orin
Memory	32 GB/64GB
Storage	1TB SSD
Display	1*HDMI
I/O	6* Ethernet ports + +8* USB + +4* COM + +2* CAN + +1* 16-channel GPIO
Expansion Bus	1M.2 KEY E+1M.2 KEY M+1*M.2 KEY B
Operation Temperature	-25~60°C
Dimensions (W x D x H) mm	240×200×88
