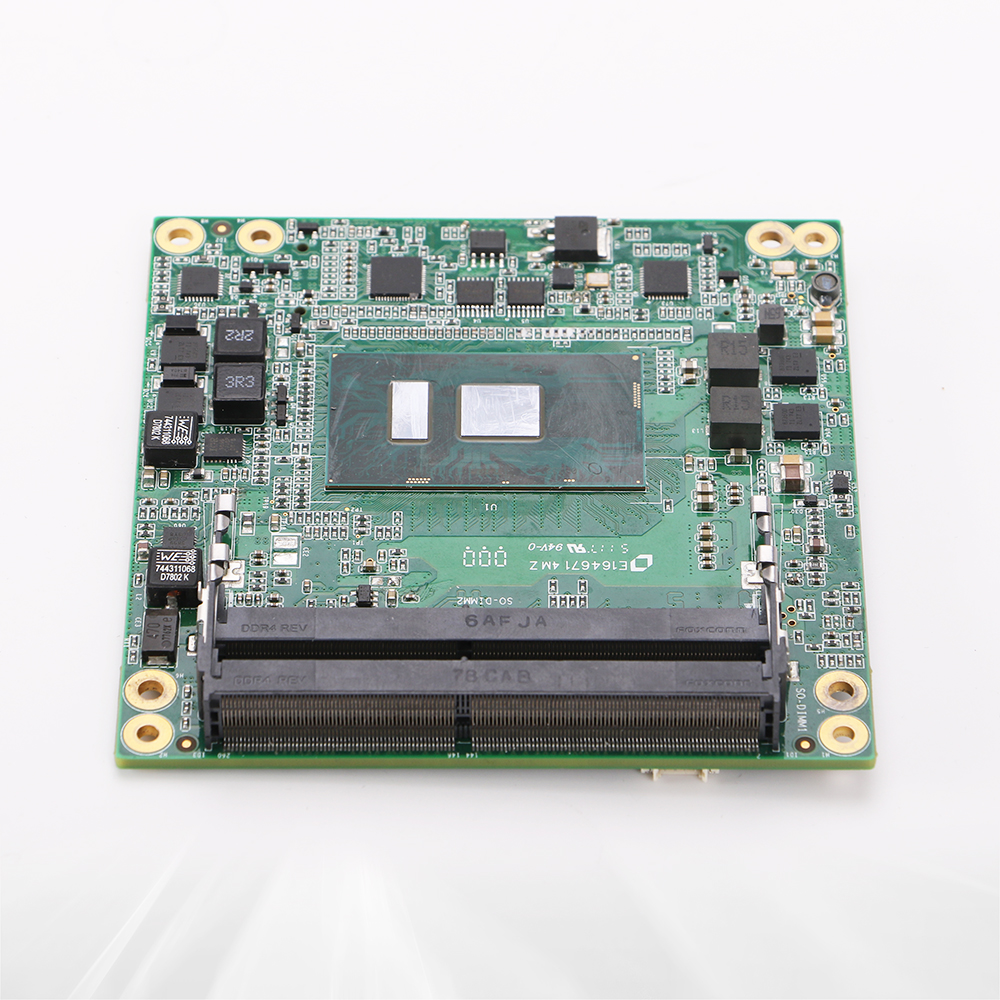

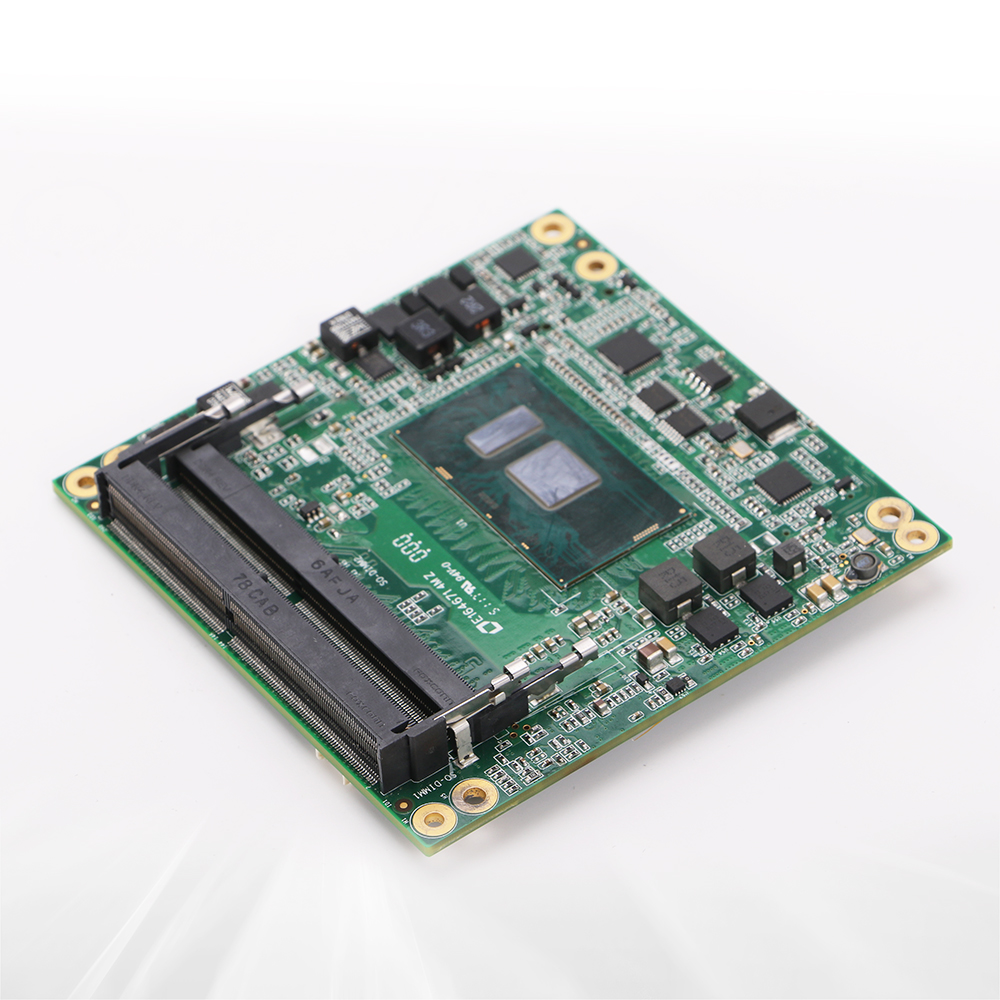

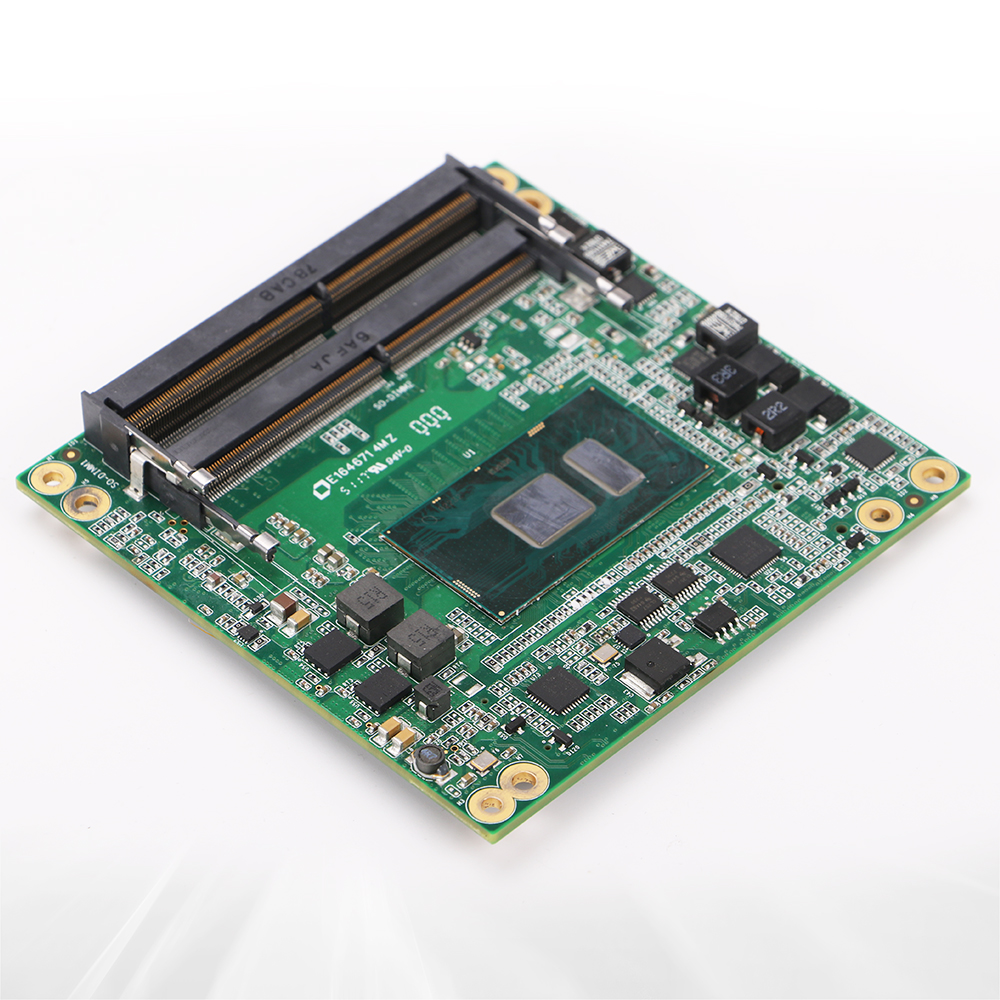

COM Express Compact Size Type 6 Module with 6th Gen/3955U Processor
COM-1818CLNAR module adopts Type6 Connector Layout in COM Express2.0 bus standard, onboard Intel 6th Gen high-performance low-power Skylake-U architecture Core and Celeron processor. It has powerful computing capability and supports high-performance DDR4 memory. It can be widely used in communication, automation, medical treatment and other fields. Customers can design and develop their own carrier boards according to their requirements.
| Item | Description | |
|---|---|---|
| Processor | Onboard Intel Celeron 3955U 2.0Ghz, Intel Core I3-6100U 2.3GHz, I5-6300U 2.4GHz, I7-6600U 2.6GHz | |
| Chipset | Skylake-U | |
| Memory | Supports dual-channel DDR4 1866/2133MHz SO-DIMM, UP to 32GB (non-ECC) | |
| Display Port | Supports VGA, LVDS and DDI (DP/HDMI/DVI can be expanded through a carrier board) and others | |
| Audio | Supports HAD | |
| LAN | 1 x 10/100/1000 Mbps LAN port (Intel I219V), supporting LAN wakeup | |
| I/O Port | 4 x USB2.0 port, 4 x USB 3.0 port, 2 x serial port, 4-channel input/4-channel output/IO port | |
| Memory | 2 x SATA 3.0 port | |
| Expansion Bus | 5 x PCIEx1; SPI, I2C, SMBUS, LPC and other buses | |
| Working Temperature | 0°C~60°C (-40°C~85°C optional); 5%~95% (non-condensing state) | |
| Storage Environment | -40°C~85°C, 5%~95% (non-condensing state) | |
| Watchdog | Level 255, programmable seconds/minutes, timeout interruption or system reset | |
| Power Supply | 8.5V-20V wide voltage power supply | |
| Dimensions (W x D x H) | 95mm x 95mm | |
| Supported Operating Systems | Windows 7、Windows 8.1、Windows10、Linux | |
| Name | Type | Platform | Version number | Update Date | Size | Download |
|---|---|---|---|---|---|---|
| COM-1818-Product Manual | Various Platform | Vol15.0 | 2025-04-27 | 0.11MB | Download 𐃯 |
